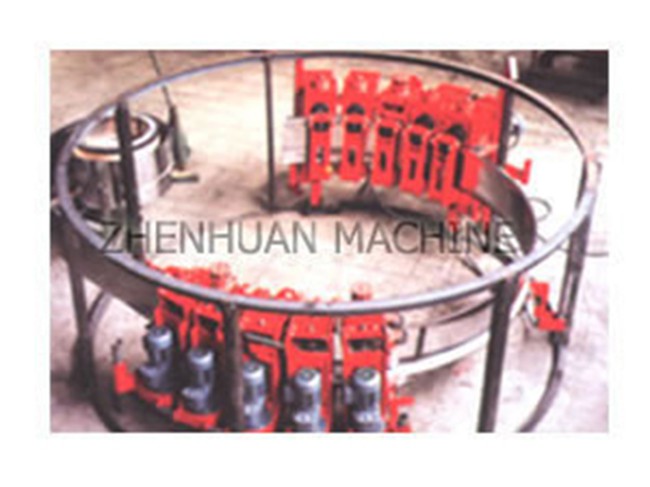

Spiral Steel Silo Forming Machine

Inquiry Form

Description of Spiral Steel Silo Forming Machine:

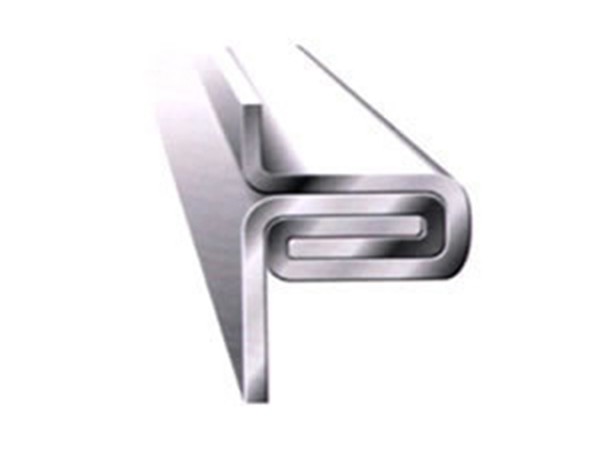

For years we have focused on the spiral steel silo manufacturing technology, which is the world's most advanced technology for steel silo. Different from other steel silo forming machines, this spiral steel silo forming machine produces steel silo by a special kind of seam lock, not by welding or assembling. Our SM40 forming machine is similar to Germany Lipp machine.

Working Principles of Spiral Steel Silo Forming Machine:

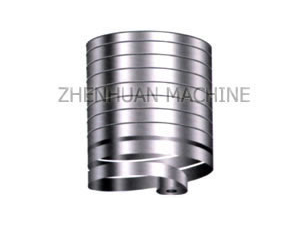

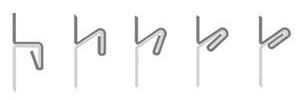

First, this spiral steel silo forming machine rolls form 495mm wide, 2mm-4mm thick steel into 365mm wide strips, and then spiral seam locks them together into round silo. And the swage is about 30-40mm wide outside of the silo to reinforce the silo.

Technical Specification of Spiral Steel Silo Forming Machine:

Item Specification
Raw material Galvanized steel 2-4mm
Chromium-nickel steel 2-3mm (Anti-corrosive)
Plastic-coated steel 2-4mm
Stainless steel 1.5-2.5mm
Width of raw material 495mm
Diameter of finished spiral steel silo 4.5-25m
Height of finished silo Less than 31.5m
Max. ratio between silo height and diameter 5.75
Production speed Linear type: 5m/min

We can also provide machine for screw-joint assembly type steel silos.

As a forming machine manufacturer and supplier in China, Zhenhuan can provide high quality roll forming machine, spiral duct forming machine, plasma cutting machine, welding machine and other forming machines for our global customers.
