Metal Forming Machinery

Welding Machine

As one of the foremost welding machine suppliers in China, we can offer a wide range of welding machines to the global customers, such as wheel rim butt welding machine, wire mesh welding machine, filter tube welding machine, 3D panel welding machine, steel grating welding machine, boiler fin tube welding machine, 3D truss girder welding machine, roll welding machine, dust collector bag cage welding machine, can welding machine, tank welding machine, and some others.

    2. Wheel Rim Bending Machine This wheel rim bending machine is used to bend steel plate into round shape as the semi-product for the production of wheel rim. The bending rollers can be adjusted for processing work piece in different diameters. Learn more
    3. Wheel rim wall thickness: 2-6mm
      Wheel rim width: 4-8"
      Suitable rim diameter: 12-18"
      Applicable material: Carbon steel

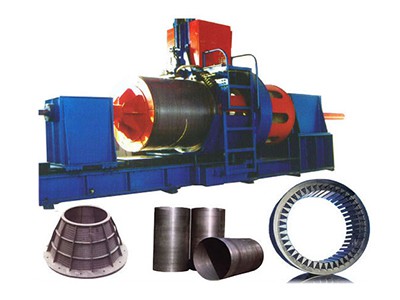

    2. Wedge Wire Filter Tube Welding Machine This Wedge Wire Filter Tube Welding Machine is specially-designed for welding filter tubes for any filtering purposes in chemicals, mining, environmental protection, as well as many other industries. Learn more
    3. Screen mesh pipe diameter: 60-600mm (60-1200mm)
      Screen mesh pipe length: Max. 6000mm
      Slot size: 0.1-16mm
      Welding precision: ±0.03mm

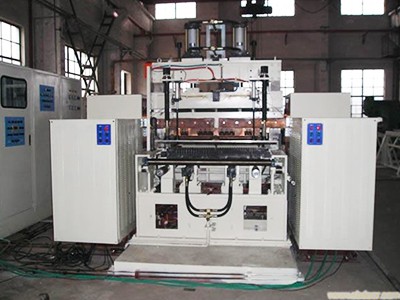

    2. Steel Grating Welding Machine This steel grating welding machine is composed of gantry type welding machine, double-layer flat steel feeding device, cross bar auto falling device, steel grating hauling device, hydraulic & pneumatic system, cooling system, electric control system, etc. Learn more
    3. Applicable material: Hot-rolled steel or cold-rolled steel
      Bearing flat bar width: 25-75mm
      Bearing flat bar thickness: 2.5-7mm

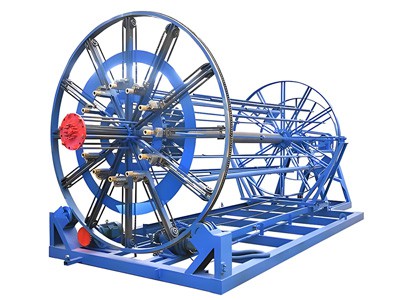

    2. Concrete Pipe Cage Welding Machine This roll welding machine, often referred to as cage welding machine, is specially designed for welding the reinforcement cage framework used in concrete drainage pipes. Learn more
    3. Max. cage length: 2500mm (or customized)
      Longitudinal rebar diameter: 5-8mm
      Spiral rebar diameter: 3.5-6mm
      Number of longitudinal rebar: Max. 24pcs

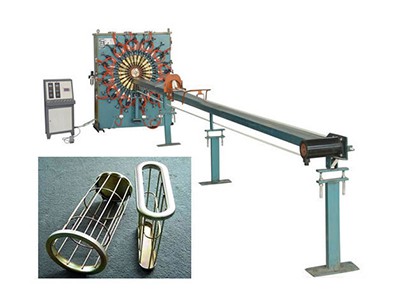

    2. Dust Collector Bag Cage Welding Machine As the name implies, the dust collector bag cage welding machine is particularly offered for manufacturing bag cage for dust collector. The welding machinery is quite popular home and abroad because of the stable performance. Learn more
    3. Cage diameter: 100-160mm or 100-200mm
      Cage length: 7.5m (or customized)
      Applicable wire diameter: 2-6mm (or customized)
      Space between rings: No limited

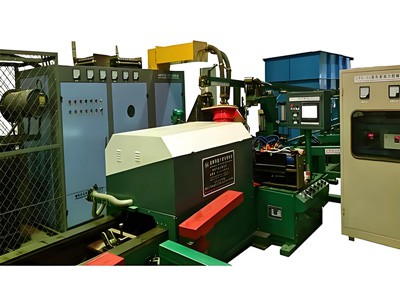

    2. Spiral Fin Tube Welding Machine The spiral fin tube welding machine is employed to weld the steel spiral fin to the steel tube. The spiral fin tube manufactured is widely used in industrial and home heat exchanging project. Learn more
    3. The high frequency spiral fin tube welding machine adopts PLC for double frequency conversion linkage control on the product.
      The material loading, clamping, feeding, welding, and material unloading can be completed automatically.

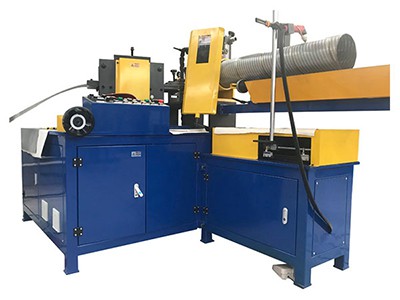

    2. Spiral Sand Control Filtration Screen Tube Welding Machine The spiral welded screen tubes are primarily used sand control filtration in petroleum and chemical industries. Traditionally, there are two types of screen tube for sand control filtration. Learn more
    3. Raw material thickness: 0.8-2.0mm
      Material strip width: 100-300mm
      Filter screen tube diameter: Φ 60-300mm
      Main driving motor power: 2.2kW

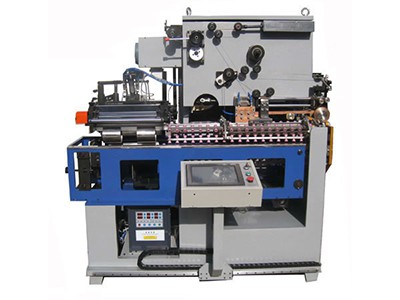

    2. Automatic Tin Can Welding Machine The automatic tin can welding machine is applicable for the production of various round tin can product, inclding paint can, oil tank, adhesive can, food can, artwork, etc. Learn more
    3. Applicable raw material: Tin plate T2-T3
      Material thickness: 0.15-0.4mm
      Welding speed: 18m/min
      Production capacity: Max. 120 cans/min

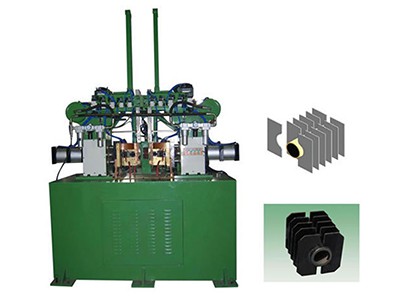

    2. H gilled boiler fin tube welding machine Our H-gilled boiler fin tube welding machine is developed for manufacturing fin tube composed of single or twin pipes. The fin tube is widely used on the boilers. Learn more
    3. Welding transformer cooling method: Compulsive water cooling
      Silicon controlled rectifying diode: ABB from Swiss, 12 pieces
      Active welding electrode: Be-Co-Cu alloy
      Welding electrodes pressing force: 2500N

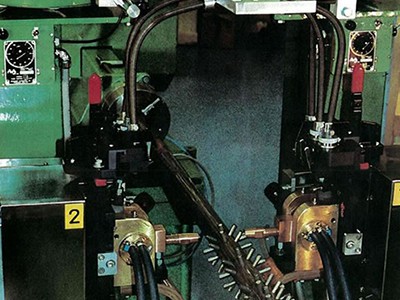

    2. Pin Finned Tube Welding Machine This pin finned tube welding machine employs Siemens SINUMERIK802 control system for easy and simple operation. Learn more
    3. Max. pin finned tube length: 10m
      Base tube diameter: Φ50-219mm
      Pin diameter: Φ8-16mm
      Pin length: 20-50mm

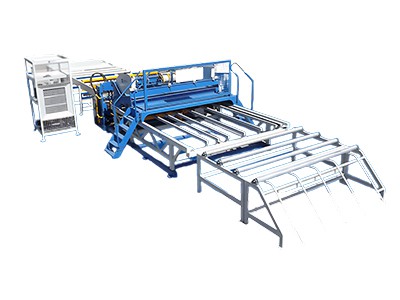

    2. Wire Mesh Welding Machine It is comprised of loading rack for longitudinal bar (for straight bar feeding), welding machine, woof bar feeding device, mesh pulling and unloading device, PLC control system. Learn more
    3. Max. width of mesh: 2600mm (or customized)
      Diameter of steel bar: 5-12mm
      Gap between longitudinal bars: >50mm, adjustable
      Gap between woof bars: >40mm, adjustable

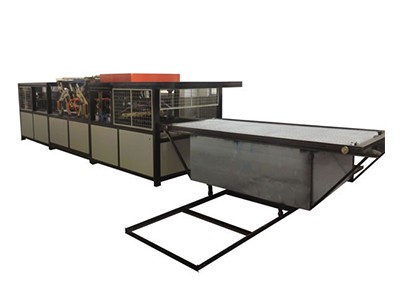

    2. 3D Panel Welding Machine This 3D panel welding machine is used to produce structural reinforced concrete panel, also called "3-D" panel. This three-dimensional panel usually adopts 50mm thick uninflammable polystyrene panel as core. Learn more
    3. As a new-style wall panel material with many perfect performances, this panel offers lightweight, easy & quick installation, energy saving, thermal insulation, sound insulation, damp proofness etc.

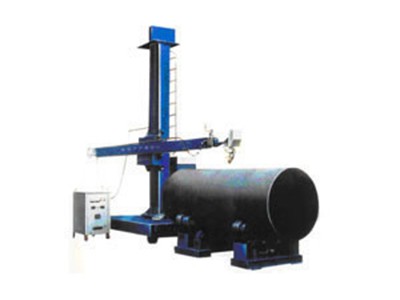

    2. Tank Welding Machine As a premier tank welding machine supplier in China, we can various machines for producing tanks, vessels, normal or compressed. Learn more
    3. This welding machine consists of welding center and roller wheel. It can be used for both straight seam welding and circle seam welding.
      This welding machine is composed of welding center and clamping device. It is applicable to various different tanks, ideal for straight seam welding and circle seam welding.

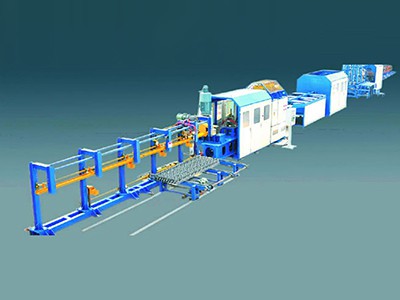

    2. 3D Truss Girder Welding Machine The 3D truss girder welding machine utilizes three coiled steel ribbed bars and two coiled round steel bars as the raw material for production. Learn more
    3. The 3D truss girder is a kind of advanced invention for building construction.
      It can be used together with steel floor panel for direct pouring, reducing time for on-site rebar binding. Therefore, the working efficiency is improved and the construction period is shortened, accordingly.
