Lead-acid Battery Machine

Zhenhuan offers a wide range of lead-acid battery machines including battery grid casting machine, battery grid pasting machine, battery plate curing and drying machine, battery plate formation machine, plate cutting & brushing machine, battery assembly equipment, lead powder preparation machines, finished lead-acid battery activating & testing equipment. We are expert in the field of lead acid battery, enabling us to supply all machines related with battery manufacturing and assembling. In addition to delivering turnkey projects, Zhenhuan can also provide you with all-round after-sales service.

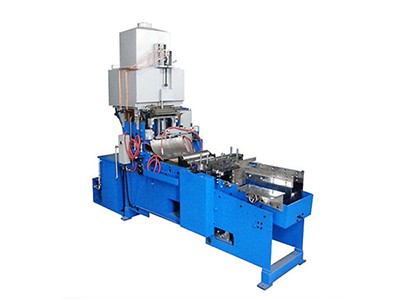

    2. Grid Casting Machine Featuring a patent design, this horizontal-cut grid casting machine developed by our company is used to produce lead acid battery grids. Learn more
    3. Applicable grid size: 400 x (120-170) x (1.2-4.0) mm
      Grid weighing range: 0-1000 gram
      Weight accuracy: ±0.2g
      Thickness error: 0.05mm

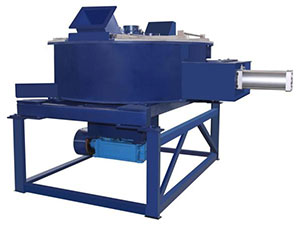

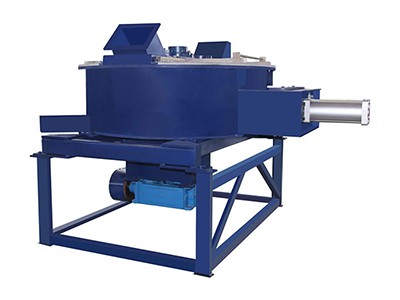

    2. Paste Mixer Paste mixer is used for mixing paste in the lead-acid battery production. It’s designed with several automatic operations including lead powder feeding and weighing, acid and water weighing, quick paste mixing and lead paste storage. Learn more
    3. Max. amount of lead powder: 500kg
      Max. paste storage weight: 1500kg
      Max. paste storage volume: Φ1150ｘ580 mm
      Weighing precision: ±0.5%

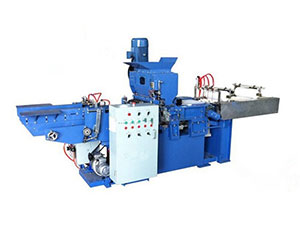

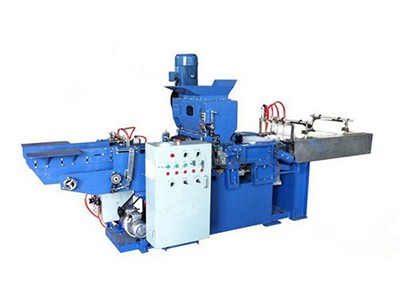

    2. Grid Pasting Machine The grid pasting machine is suitable for smearing the paste on both surfaces of lead-acid battery grids. It can finish grid feeding and pasting, water and acid feeding in one cycle automatically. Learn more
    3. Total power: 15.5kW
      Air supply: 0.4-0.6MPa, 0.2m³/min
      Machine dimension: 3828 x 1310 x 1915 mm
      Machine weight: About 2300kg

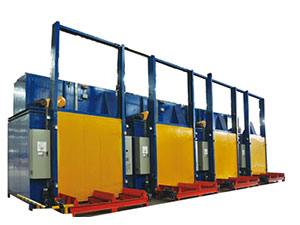

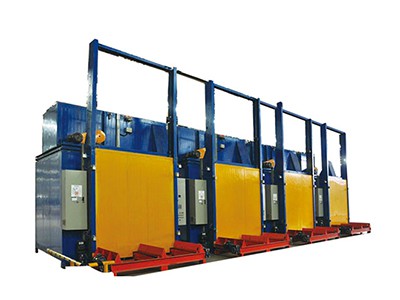

    2. Pasted Battery Plate Curing Chamber The curing chamber is designed with primary and assistant chambers, a separate steam generator, heat exchangers, a PID temperature controller, a PLC control system, a control cabinet, ventilators, etc. Learn more
    3. Outline size: 4400 x 3690 x 3900mm
      Heating method: Electric heating tube
      Heating power: 88kW
      Motor power for circulating fan: 11kW

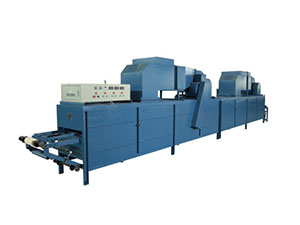

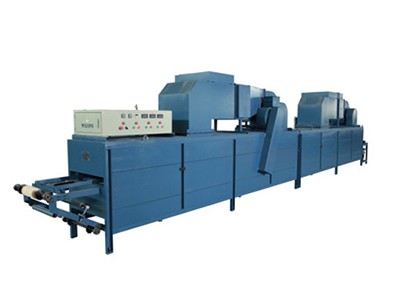

    2. Plate Surface Drying Oven This drying oven is used for drying pasted plate surface at super high speed, with productivity of 60~130 panels per minute. Learn more
    3. Heating method: Electric & steam heating
      Effective oven length: 10m
      Productivity: 60-130 big panels per minute
      Water loss rate of plate: ≤3%

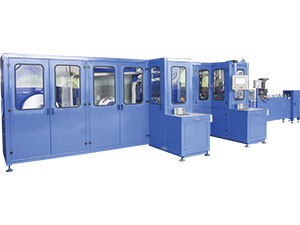

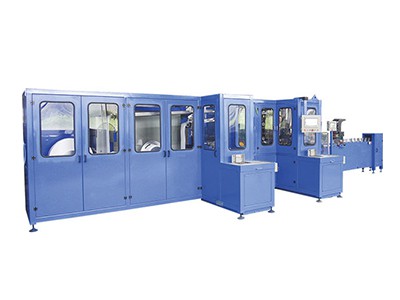

    2. Plates Enveloping & Stacking Machine BF300 battery plates enveloping and stacking machine is specially designed for enveloping and stacking negative + positive plate groups. Learn more
    3. Production speed: 260 plates per minute
      Enveloping material cutting length error: ±1mm
      Plate stacking height: 200mm
      Stacking height error: ＜15mm

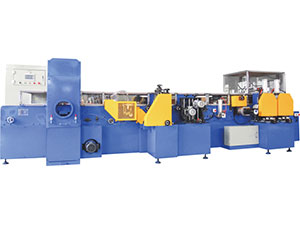

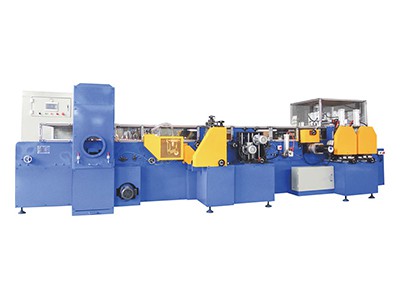

    2. Plate Lug Cutting & Brushing Machine This integrated battery machine is designed for cutting and brushing plate lugs, and separating battery plates in a fully automatic manner. Single-plate and double-plate machines are optional according to your lead-acid battery size. Learn more
    3. Applicable plate length: 260mm-380mm (excluding lug)
      Applicable plate width: 120mm-160mm
      Production speed: 60~100 big plates per minute
      Total electric power: 18kW

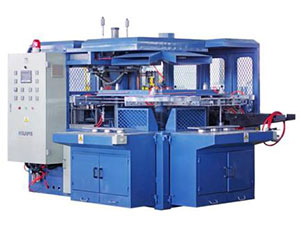

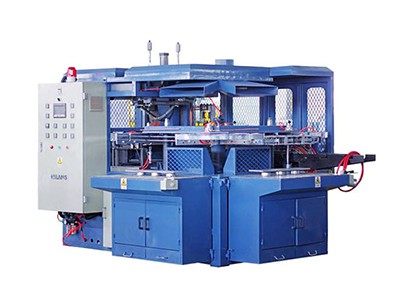

    2. Cast On Strap Machine (COS) COS machine is an automated cast-on-strap machine, specially designed for lead-acid car batteries manufacturing. Learn more
    3. Busbar thickness: ≤8.5mm
      Busbar accuracy: Width ±0.15mm; length±0.2mm
      Total power: 42kW
      Production speed: 80-120 pieces/h (≤100AH,12V)

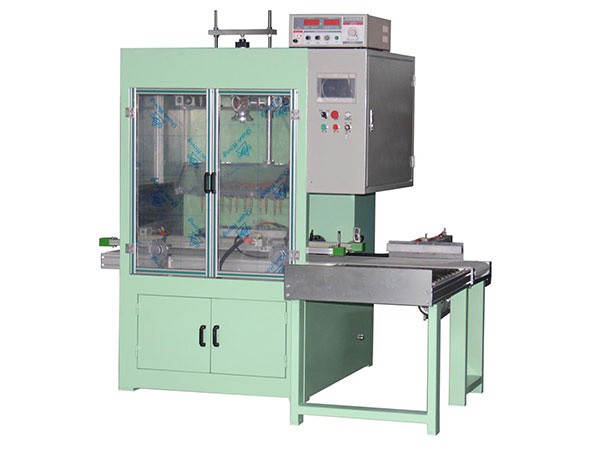

    2. Lead-acid Battery Leakage Tester Adopting short-circuit testing method, this battery test equipment is applied to test leakage condition in the production of lead acid battery. It can automatically feed and test, reject and push out defective batteries. Learn more
    3. Testing voltage: 0~3000V impulse
      Testing current: 0~500mA
      Testing time: 0.1~0.5S
      Testing point: 12 heads for 6 cells

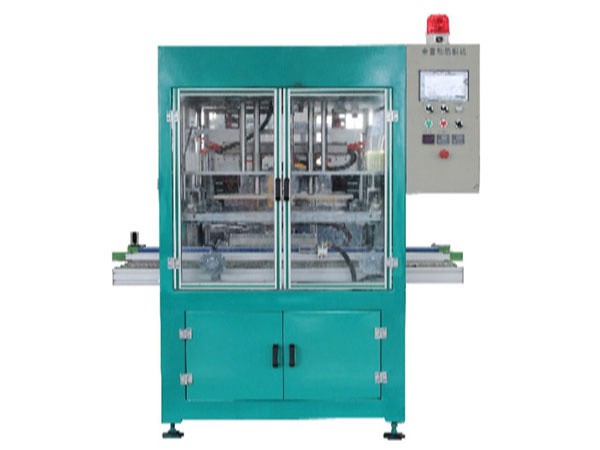

    2. Lead-acid Battery Heat Sealing Machine This lead-acid battery machinery is used for heat sealing the top cover to the battery container. It features PLC control and HMI operation, realizing automatic feeding, positioning, sealing and discharging. Learn more
    3. Heat sealing die temperature: Max. 350℃
      Temperature control error: ≤±2℃
      Temperature measuring error: ≤±0.5℃
      Heating duration from 25℃ to 350℃: Less than 30 minutes

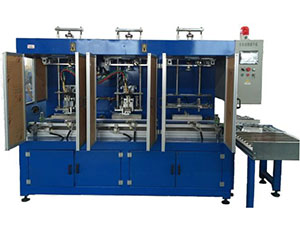

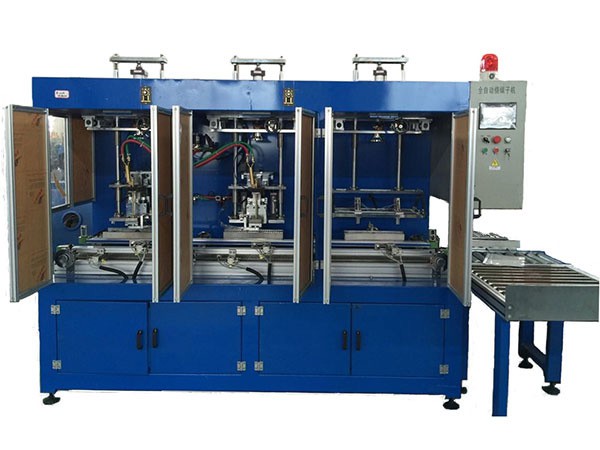

    2. Automatic Battery Terminal Welder This automatic battery terminal welding machine is used for welding positive and negative terminals of lead-acid battery. Learn more
    3. Terminal height error: +1mm
      Welding depth: ≥5mm
      Welding speed: 300 batteries per hour
      Total electric power: 2.5kW
