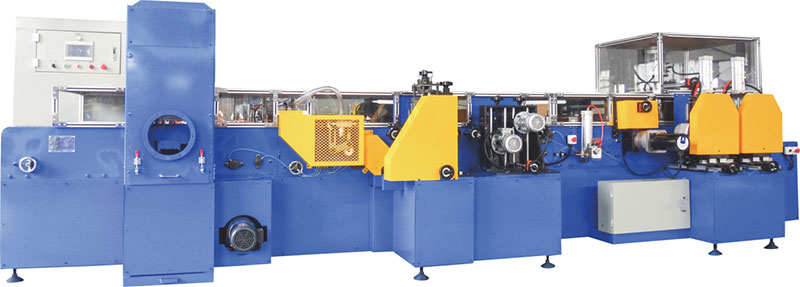

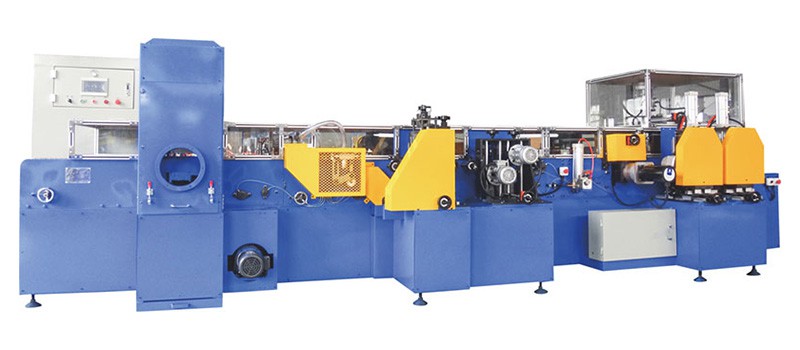

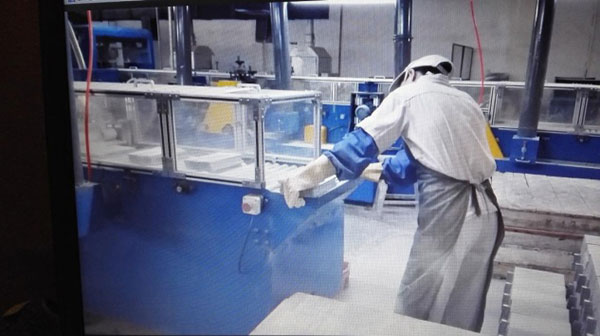

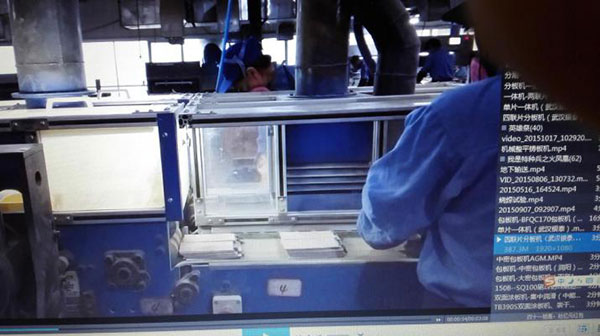

Plate Lug Cutting & Brushing Machine

This integrated battery machine is designed for cutting and brushing plate lugs, and separating battery plates in a fully automatic manner. Single-plate and double-plate machines are optional according to your lead-acid battery size. The plate lug cutting and brushing machine comes with an efficient waste recycling system and dust collector, providing clean working environment.

Request a Quote

Technical Specifications

Applicable plate length260mm-380mm (excluding lug)
Applicable plate width120mm-160mm
Production speed60~100 big plates per minute
Total electric power18kW
Air supply0.4Mpa-0.6MPa, 15L/min
Dust collection volume≥10000m³/h
Control methodPLC + HMI
Machine dimension7900 x 2190 x 1730mm
Machine weight5000kg

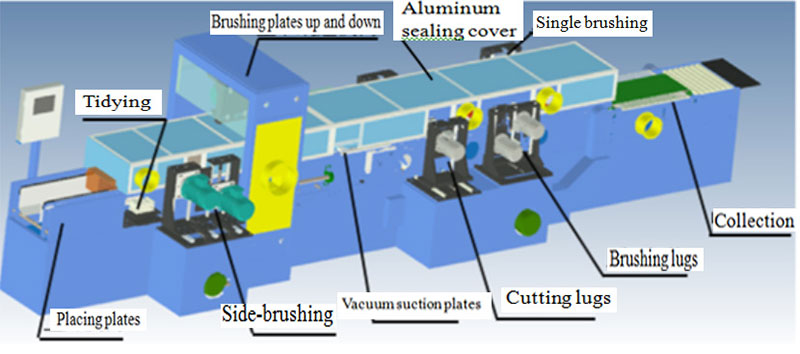

Main Configurations

Plate loading frame
Plate alignment device
Side brushing device
Top & bottom brushing device
Vacuum suction plate
Lug cutting device
Lug brushing device
Plate separating, stacking and alignment device
Lug side brushing and middle seam brushing device
Waste collector
Plate collecting table
Electric control system

Main Features

Designed with PLC control and HMI operation, parameters can be stored and recalled for future use.
All operations including cutting, brushing and separating can be automatically performed, thus requiring only two operators.
Vertical plate loading, negative pressure vacuum suction plate, adjustable plate stacking height

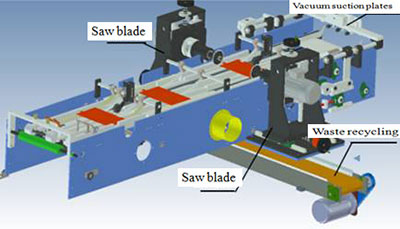

Slits plates and lugs using blade, ensuring high precision and no waste.
Positions of lug brush seat and saw cutter seat can be preciously displayed, realizing accurate adjustment of plates with different sizes.
Plates are overturned 90° for vertically alignment, ensuring low rejection rate.
The plate alignment device is adjusted by the screw, shortening plate size changing time.
Entire upper channel is sealed with transparent material. All parts which need to be adjusted are mounted outside of the sealing cover. Thus, there are less lead dust overflown, achieving efficient lead slag recycling, and longer machine life.

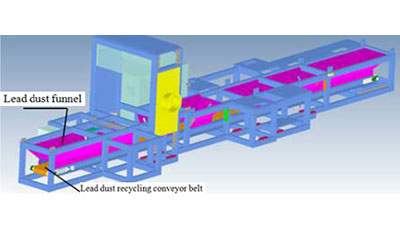

Fully sealed lower channel is equipped with a waste recycling device and lead dust recycling system, providing clean working environment.

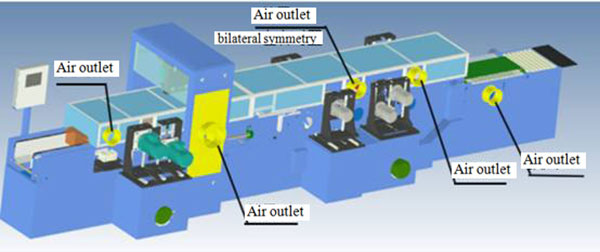

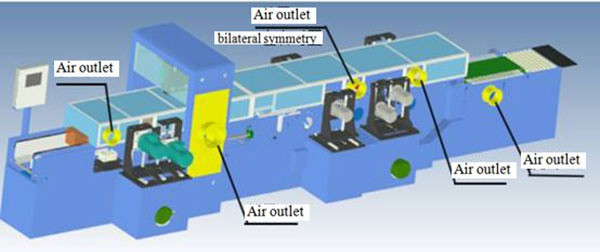

The separating station is designed with bottom air ejecting, and the plate collecting station comes with side air ejecting. Both interior and exterior of the battery production machine are fully sealed, ensuring no lead dust during separating plates.
The plate collecting station is designed in accordance with environmental protection requirements.
