Cut-to-length Slitting Line | Steel Coil Cutter Manufacturer

We are supplying various cut-to-length lines and slitting lines for steel service companies, cutting & slitting hot rolled coil, cold rolled coils, galvanized steel coils, pre-painted steel coils, aluminum, stainless steel, silicon steels, copper, etc. Our lines' capacity for cut-to-length line is from 0.3-25mm. Our lines' capacity for slitting line is from 0.3-16mm. We also provide steel coil related tools and equipment, such as steel coil grabs, steel coil wrapping machines, etc.

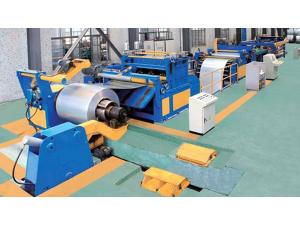

2. High Speed Cut- to- length Line This high speed cut-to-length line consists of hydraulic loading car, double-head uncoiler, pre-leveler, fine-leveler, length gauge, shear, stacker, etc. It is used to cut the cold rolled coils into sheets in certain length. Learn more
3. Code: 3×1600
  Coil thickness(mm): 0.3-3
  Coil width(mm): 800-1600

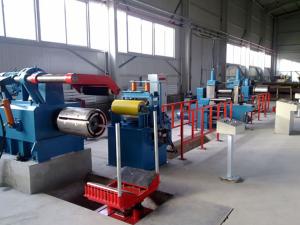

2. High Speed Slitting Line Except this high speed slitting line, Zhenhuan also supplies sound quality roll forming machine, spiral duct forming machine, plasma cutting machine, welding machine etc. for global customers. Learn more
3. Coil thickness (mm): 0.3-3
  Coil width(mm): 600-1600
  Slitting strips: 2-15

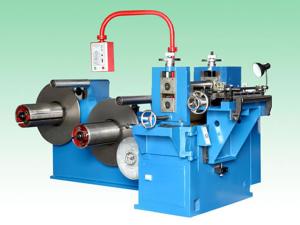

2. Compact Metal Slitting Machine The compact metal slitting machine can be used for processing copper and aluminium into narrow strips with the minimum width of 4mm. The strip processed will be recoil automatically. Learn more
3. Max. coil width: 420m
  Max. coil outer diameter: 750mm
  Coil inner diameter: 150-520mm
  Max. coil weight: 570kg

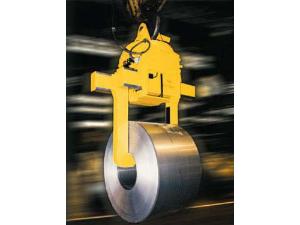

2. Coil Grab Coils grabs are usually divided into two kinds:Vertical Coil Grab and horizontal coil grab. You only need to give us your tonnage, and we will provide your desired grabs. Learn more
3. Single-side vertical coil grab: being suitable for those coils with large range of wall thickness (thickness between out diameter and inner diameter).
  Double-side vertical coil grab: being perfect for those coils with larger diameter and pressure-resisting ability in diameter direction)

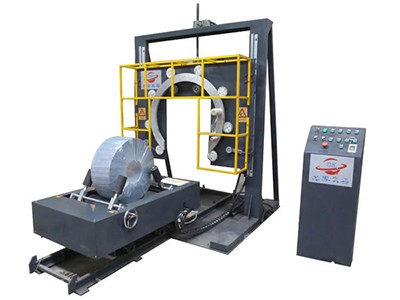

2. Steel Coil Wrapping Machine This wrapping machine can be used to packing various materials, such as laminated film or dampproof paper tape etc. After being wrapped, the products are good-looking, waterproof, anti-rust, which are easy to transport and store. Learn more
3. Suitable steel coil width: 10-300mm
  Suitable steel coil outer diameter: 500-1000mm
  Suitable steel coil inner diameter: 300-500mm
  Width of wrapping material: 70-90mm
