High Speed Cut- to- length Line

Inquiry Form

Description of High Speed Cut- to- length Line:

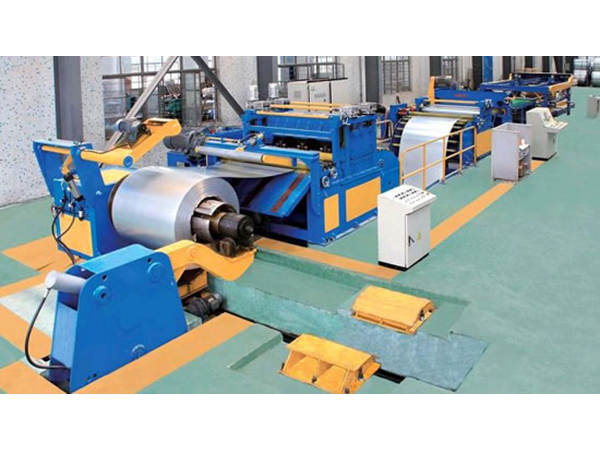

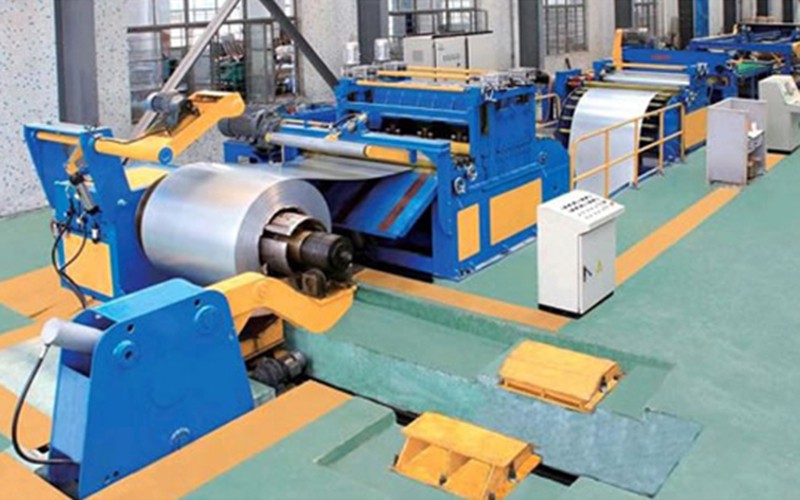

This high speed cut-to-length line consists of hydraulic loading car, double-head uncoiler, pre-leveler, fine-leveler, length gauge, shear, stacker, etc. It is used to cut the cold rolled coils into sheets in certain length.

Technical Data of High Speed Cut- to- length Line:

Model T44QK- T44QK- T44QK- T44QK-
Code 2×1300 2×1600 3×1300 3×1600
Coil thickness(mm) 0.3-2 0.3-2 0.3-3 0.3-3
Coil width(mm) 800-1300 800-1600 800-1300 800-1600
Cutting length range(mm) 10.0-9999 10.0-9999 10.0-9999 10.0-9999
Stacking length range(mm) 300-4000 300-4000 300-4000 300-4000
Cut-to-length precision(mm) ±0.3 ±0.3 ±0.5 ±0.5
Leveling precision(mm/m2) 4-5 4-5 3-4 3-4
Leveling speed (2000mm/min) 35pcs 35pcs 35pcs 35pcs
Coil weight(T) 10 10 20 20
Leveling roller Dia.(mm) 85 90 90 100

Note: HRC coil cut-to-length lines are also available. (Max. thickness 30mm)
