Wire Bending Machines

There are many kinds of rings, hooks, loops, buckles, chains, clips, clamps, springs for various purpose for civil and industrial purpose. We can provide relative machines for them, such as ring/hook makings, CNC spring coiling machines, buckle making machines, clothes hanger making machines, hanger hook making machines, clips or clamps making machines, Wheel Rim Round Bending Machines, chain making machines, etc. By adopting advanced technology from Japan and Taiwan and using precision parts and control system, our machine can produce those products accurately.

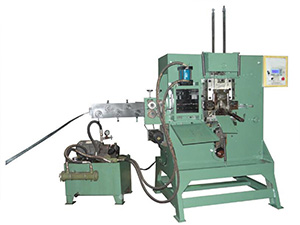

2. Hose Clamp Stamping & Forming Machine This stamping and forming machine is specially designed for producing hose clamps automatically. It can automatically feed strip and punch hole on leg. By changing forming die, hose clamps with different sizes can be produced. Learn more
3. Total motor power: 7kW
  Applicable wire thickness: 0.5-3.0mm
  Applicable strip width: 15-30mm
  Production speed: About 20-30pcs/min
2. Automatic Clothes Hanger Making Machine This automatic clothes hanger making machine adopts servo motor to feed wire, with high speed and high precision. Comparing with traditional wire hanger making machine, 100% rate of finished products can be achieved by the automatic machine. Learn more
3. Production speed(pieces/min): 25-40
  Machine dimension(mm): 1400x1000x1600
  Machine weight(kg): 900-950
  Power supply: 380V, 3phase, 50Hz or as required
2. Hangar Hook Bending Machine This hangar hook bending machine combines the functions of hook forming and hook end threading together. Generally one end is threaded, and the other end has two shapes (one shape is bended, the other is cold headed). Different shape and different heading treatment can be achieved by changing moulds. Learn more
3. Max. wire length: 160mm
  Main motor power: 1.5kW-2.2kW
  Dimension: 1360×1070×1980mm
  Weight: About 400kg
2. Ring Bending Machine Our ring bending machine is ideal for forming steel wire, iron wire, stainless steel wire and other nonferrous metal wires (round, square or flat) into ring, half ring or any arcs. Learn more
3. Finished ring diameter tolerance: ±0.2mm
  Feeding speed: 40m/min
  Main driving motor power: Servo motor 2.2kW
  Power supply: 220V, single phase
2. Copper Brazing Ring Making Machine A fully automated PLC-controlled ring forming system with HMI interface, servo-driven high-precision feeding, interchangeable dies for multiple ring sizes, and an integrated tapping device for flat brazing rings. Learn more
3. PLC-controlled system with HMI interface for fully automated production
  Servo-driven feeding for high speed and high precision
  Flexible adaptation to different ring sizes through interchangeable forming dies
2. Bucket Handle Bending Machine Hydraulic drive: one hydraulic motor for all the operations, energy-saving Main hydraulic components like motor, pump and valves are all from Taiwan. Feeding, straightening and forming rollers are made by good alloy steel, heat treated HRC 58-62 Learn more
3. Hydraulic motor power: 5.75kW
  Power supply: 380V, 3-phase, 50Hz
  Suitable steel wire diameter: 1-5.0mm
  Suitable bucket capacity: Customized
2. Automatic Chain Making Machine By changing different moulds, this machine can form various kinds of chains in different wire diameter & link pitch. Learn more
3. Auto feeding & straightening, auto forming
  Numerical control, quantity of links can be pre-set
  Easy operation, convenient mould change
2. Fan Guard Making Machine The electric fan guard production line is composed of radial wire auto welding machine, mid ring welding machine, outer ring welding machine, ring forming machine, butt welding machine, hydraulic press, wire bending machine for handles, handle welding machine, edge trimming machine, and so on. Learn more
3. Fan guard size: 8"-23" (or customized)
  Radial wire number: No limit
  Suitable radial wire diameter: 1.0-1.8mm
  Outer ring wire diameter: 3-4mm
2. CNC Hose Clamp Machine This machine is a state of the art machine designed to automatically produce wire and plate products in complex shapes. It combines the processes of leveling, punching, bending and forming, making it more efficient than conventional press forming. Learn more
3. Suitable carbon steel wire gauge: Φ0.6~2.5mm (3mm)
  Suitable steel strip width: 30mm
  Suitable steel strip thickness: 0.3~1.2mm
  Max. feeding length per stroke: 200mm (250mm)
2. Wire Frame Bending Machine The wire frame bending machine utilizes pneumatic power in order to bend wires into different frames. It features four bending heads with adjustable positions for different frame sizes. Each bending head is separately controlled with adjustable bending angles. Learn more
3. Suitable radius of U bend: R5-12.5
  Machine dimension (mm): 2100 x 1350 x 750
  Machine weight (kg): 300 350
2. CNC Spring Coiling Machine The CNC spring coiling machine can be construction with two axis, three axis, four axis and six axis. Therefore, it is suitable to produce different kinds of springs with our spring making machine. Learn more
3. This spring coiling machine is suitable for compression spring, tension spring and torsional spring.
  This machine is highly recommended to make small springs with various wire thickness.
2. Hook and Eye Machine HE-100 hook and eye making machine is specially manufactured for producing hooks or eyes used on hook and eye tapes. One machine for hook and one machine for eye. Learn more
3. Main drive motor power: 0.75kW
  Motor for feeding device: 90W
  Power supply: 220V, single-phase
  Machine dimension (With feeder): 2500×700×1570mm
2. Bra Ring Bending Machine This bra ring machine is an upgrade to our original semi-automatic type. It adopts PLC & HMI control. Feeding length and each point radius of bra underwire will be preset on HMI. The parameters of each product can be stored for future use. Learn more
3. Applicable wire thickness: 0.5-1.5mm
  Flat wire width: 2.0-2.5mm
  Production speed: Around 100pieces per min
  Motor power: 1.5kw
2. CNC 3D Wire Bending Machine The CNC wire bending machine is specially designed for making different 3D wire piece. 3D wire can be automatically formed with different designs. This wire bender features touch screen for easy operation and servo motor for wire feeding unit to keep high precision. Learn more
3. Applicable wire diameter: 2.0-6.0mm, stainless steel wire
  Product length: Unlimited
  Max. feeding wire speed: 60mm
  Feeding wire servo motor: 4.5kW
2. Barrel Hoop Forming Machine Taking the steel belt with specific width as the raw material, the barrel hoop forming machine is specially offered to produce circular product, such as barrel hoop, wheel rim, and so on. Learn more
3. Applicable material: Stainless steel, carbon steel
  Applicable steel strip width: 15-52mm
  Applicable steel strip thickness: 0.8-2.0mm
  Barrel hoop diameter: 60-1000mm
2. Other Wire Bending Machines As an experienced wire bending machine manufacturer and supplier in China, we can offer a great line of wire bending machines for you to choose from. These machines can be used to make products of different sizes and shapes, like buckles, hooks, frames, and so on. Learn more
