Wire Frame Bending Machine

Inquiry Form

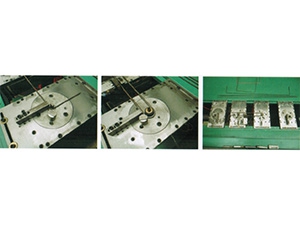

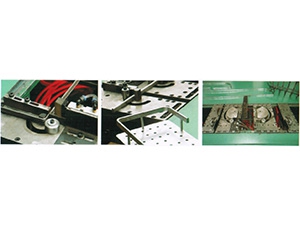

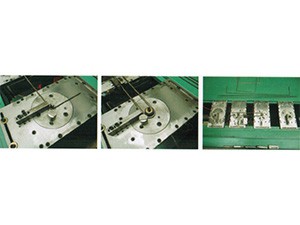

The wire frame bending machine utilizes pneumatic power in order to bend wires into different frames. It features four bending heads with adjustable positions for different frame sizes. Each bending head is separately controlled with adjustable bending angles. Four angles allow for a one-step formation, and operation is easily done with just a foot switch. We offer two primary models:

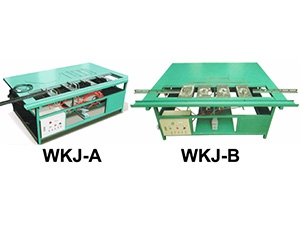

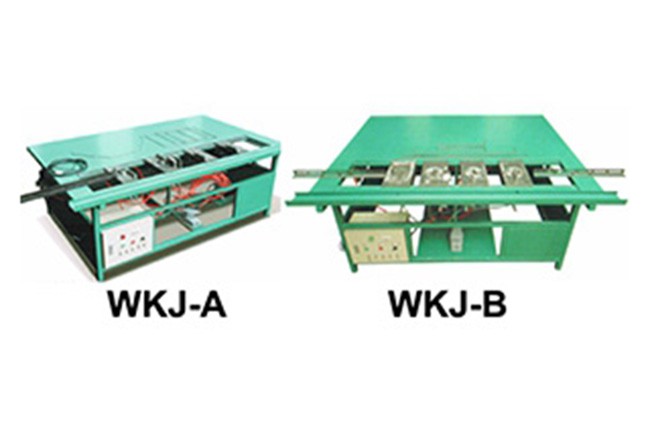

WKJ-A, which can bend 90º angles, and WKJ-B, which can bend any angles up to a maximum of 180º.

  • WKJ-A Frame Bending Machine
  • WKJ-B Frame Bending Machine

Technical Data

Item WKJ-AI WKJ-AII WKJ-AIII WKJ-B

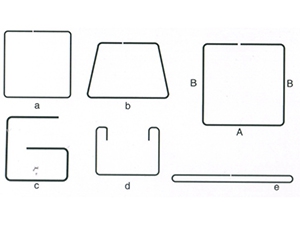

Suitable frame product ac ac ac abcde
Suitable frame dimension (mm) A 90-1160 70-1160 58-1192 190-1160
B 170-700 150-720 130-740 210-670
Suitable A+B+B size (mm) Less than 1500mm
Suitable wire diameter and max. qty. bent together 2mm 11 pcs 9 pcs 8 pcs 11 pcs
3mm 7-8 pcs 6 pcs 5 pcs 7-8 pcs
4mm 6 pcs 4 pcs 3 pcs 6 pcs
5mm 4 pcs 3 pcs 2 pcs 4 pcs
6mm 4 pcs 3 pcs 1 pc 4 pcs
7mm 3 pcs 2 pcs - 3 pcs
8mm 2 pcs 1 pc - 2 pcs
9mm 1 pc 1 pc - 1 pc
10mm 1 pc 1 pc - 1 pc
Suitable radius of U bend - R5-12.5
Machine dimension (mm) 2100 x 1350 x 750 2100x1700x750
Machine weight (kg) 300 350

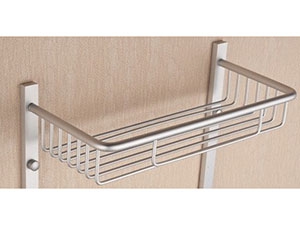

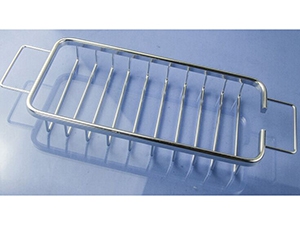

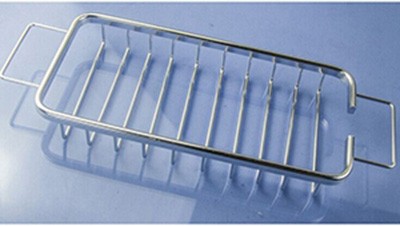

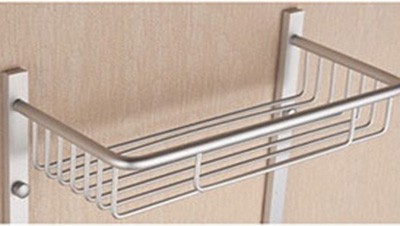

Typical Wire Frame Products Made by A Pneumatic Wire Frame Bending Machine
