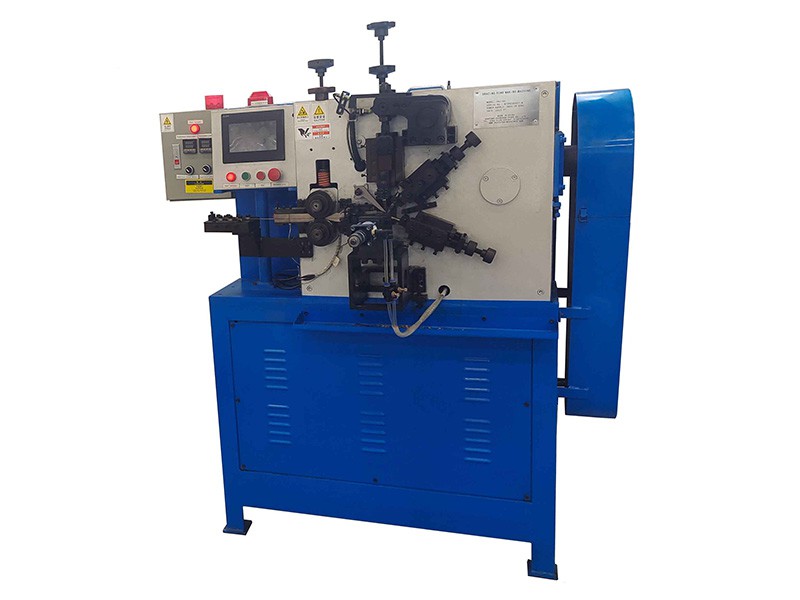

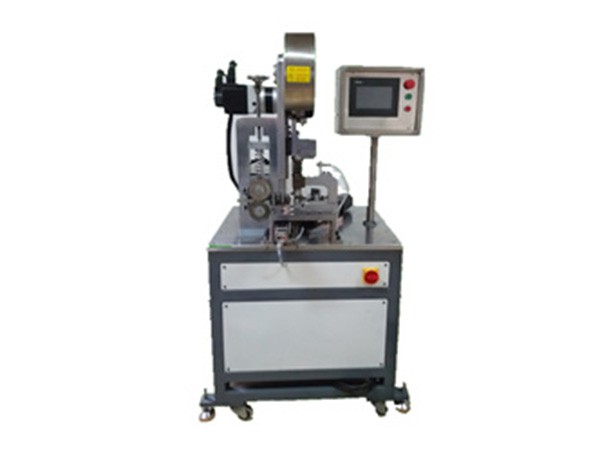

Copper Brazing Ring Making Machine
Copper Brazing Ring Making Machine
Copper Brazing Ring Making Machine
Features
  • PLC-controlled system with HMI interface for fully automated production
  • Servo-driven feeding for high speed and high precision
  • Flexible adaptation to different ring sizes through interchangeable forming dies
  • Equipped with a tapping device for flat brazing rings
Request a Quote
Technical Data
  • Applicable wire diameter⌀ 0.5-2.0mm
  • Applicable ring diameter⌀ 3-20mm
  • Suitable ring shapeSingle or multiple circles
  • Production speed0-120 rings/min
  • Ring diameter accuracy±0.3mm
  • Main motor power1.1kW
  • Servo motor power3kW
  • Heating rod400W x 2pcs
  • Main machine dimensionsapprox. 1550 x 950 x 1600mm
  • Machine weightapprox. 500kg
