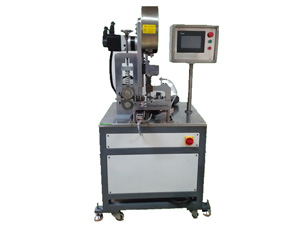

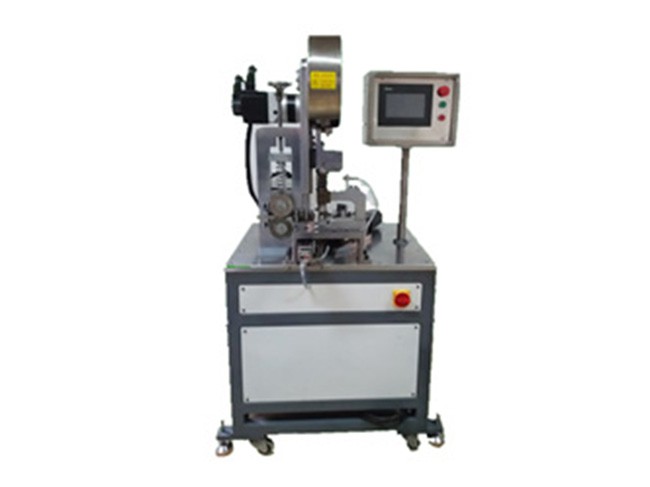

Bra Ring Bending Machine

Inquiry Form

This bra ring machine is an upgrade to our original semi-automatic type. It adopts PLC & HMI control. Feeding length and each point radius of bra underwire will be preset on HMI. The parameters of each product can be stored for future use.

Features
1. The bra ring bending machine adopts one-way bearing imported from Japan for feeding roller.
2. The feeding length and bra ring radius can be adjusted conveniently and freely.
3. With good elasticity, the finished bra ring has round head.

Technical Parameters of Bra Ring Bending Machine

Item Specifications
Applicable wire thickness 0.5-1.5mm
Flat wire width 2.0-2.5mm
Production speed Around 100pieces per min
Motor power 1.5kw
Machine dimension 900x600x1400mm
Machine weight 450kg
Power supply 380V, 3phase, 50Hz or as required

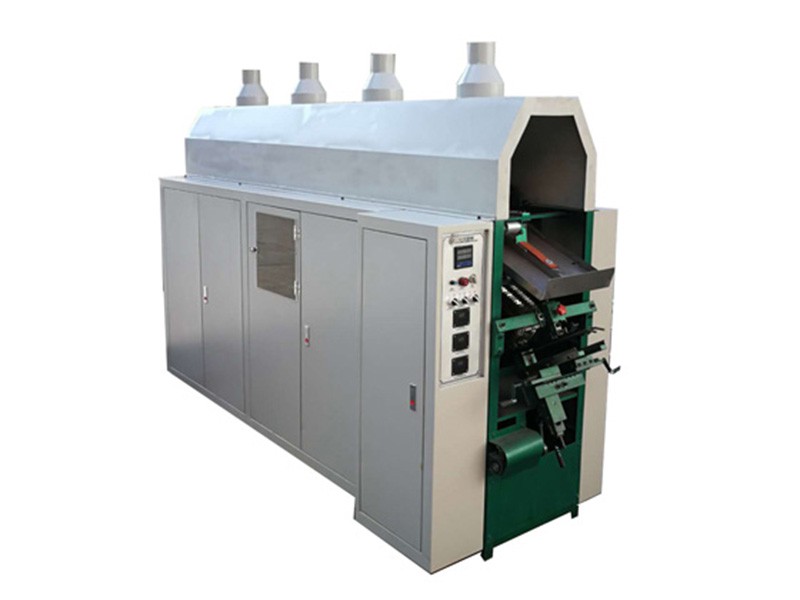

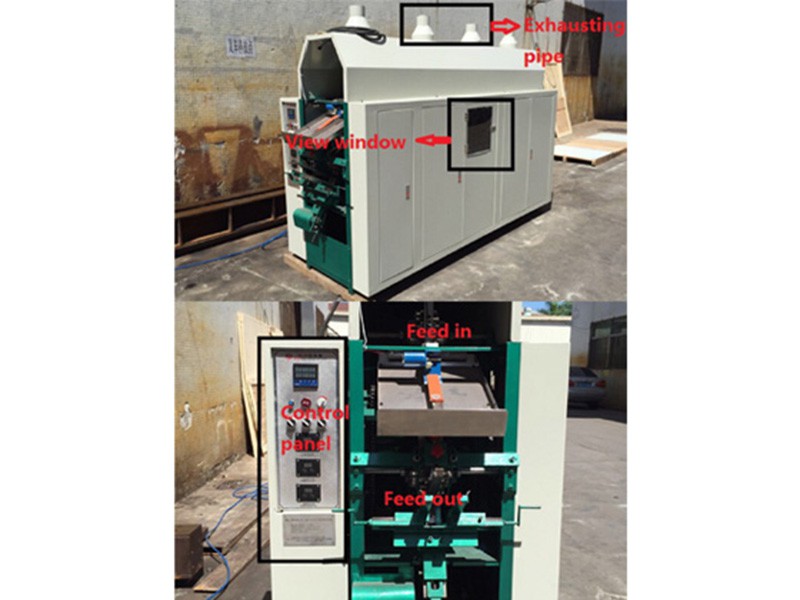

Bra Ring End Painting Machine

Description of Bra Ring End Painting Machine
This machine is specially offered for coating powder to both ends of the bra rings. It is capable of completing bra ring loading, heating, powder coating, drying and solidification, and finished ring unloading, automatically.

Technical Parameters of Bra Ring End Painting Machine

Item Specifications
Production speed Around 120-140 pieces per min
Motor power 7.9kw
Machine dimension 2500x520x1200mm
Machine weight 550kg
Power supply 380V, 3phase, 50Hz or as required
Machine weight About 480kg

Related Names
Bra ring bending machine | Bra ring making machine | Bra ring forming machine | Bra ring painting machine | Bra Underwire Making Machine | Bra Underwire Bending Machine | Bra Underwire Forming Machine
