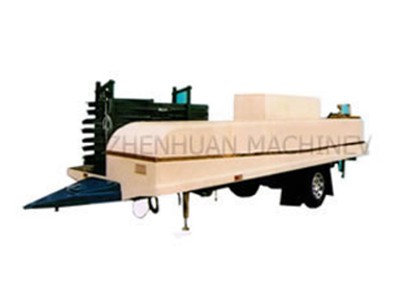

    2. K Span Roll Forming Machine This roll forming machine is widely used in the construction of factories, garages, hangars, stadiums, exhibition halls, theaters, and so on. Learn more
    3. Control system: electric control
      Main forming unit driving motor power: 7.5kW
      Curving motor power: 3+1.1+1.1kW
      Electric cutting motor power: 3kW

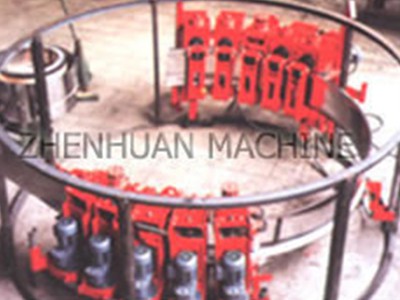

    2. Spiral Steel Silo Forming Machine For years we have focused on the spiral steel silo manufacturing technology, which is the world's most advanced technology for steel silo. Learn more
    3. Width of raw material: 495mm
      Diameter of finished spiral steel silo: 4.5-25m
      Height of finished silo: Less than 31.5m
      Max. ratio between silo height and diameter: 5.75

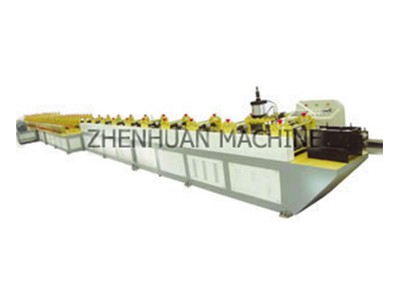

    2. Rolling Shutter Slats Roll Forming Machine This roll forming machine can produce rolling shutter slats with polyurethane foam online injected. Its PLC control system such as PLC, touch screen, inverter and encoder are imported from Japan. Learn more
    3. Steps of rollers: 32 stations
      Length of main machine: 24 meter
      Diameter of roller shaft: 40mm
      Material of rollers: GCr15

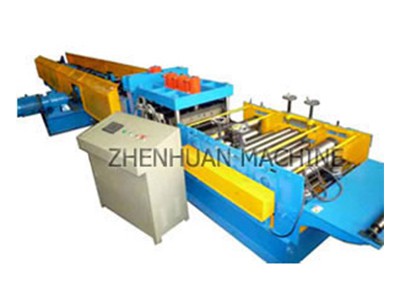

    2. C/Z Purlin Interchangeable Forming Machine Adopting similar technology of the special structure from New Zealand, our C-Z purlin interchangeable forming machine is widely used. The rollers for C & Z are changed very quickly without dismantling any parts. Learn more
    3. Main dimension: 11000 x 1800 x 1800mm
      Total weight: 14000kg
      Main driving motor: 15kW
      Feeding & leveling motor power: 4kW

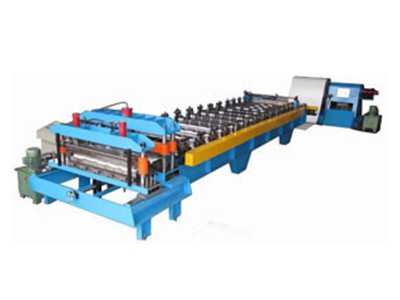

    2. Color Steel Tile Roll Forming Machine The product of this roll forming machine features novel appearance, level surface, uniform ripple, high usage and automatization, low cost and durability. Learn more
    3. Width of coil: 1000/1250mm
      Thickness of raw plate: 0.4-0.8mm
      Steps of rollers: 13-16 stations
      Material of rollers: good 45# steel, rigid chrome coated

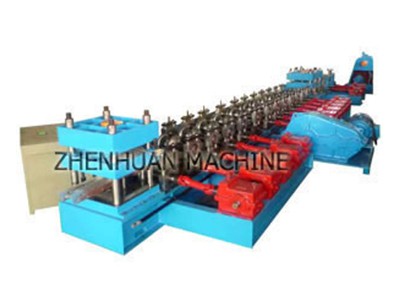

    2. Expressway Guard Rail Machine This expressway guard rail forming machine is mainly composed of mechanical decoiler, feeding & guiding device, leveling device, pre-punching station, roll forming unit, hydraulic mould cutting device, hydraulic station, PLC control system and unloading rack. Learn more
    3. Working speed: approx. 5-12m/min
      Total power: approx. 38kw
      Roller material: GCr15, quenched
      Roller shaft material: 45# steel with heat treatment

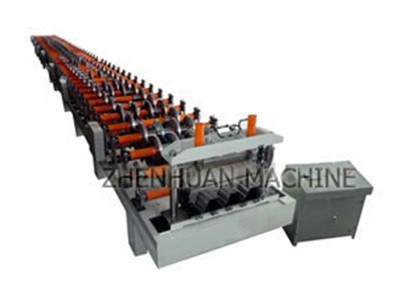

    2. Steel Deck Roll Forming Machine Steel deck roll forming machine consists of mechanical expansion decoiler, feeding & embossing device, main forming unit, PLC control system, hydraulic mould cutting device and manual unloading rack. Learn more
    3. Zhenhuan supplies high quality roll forming machine, spiral duct forming machine, plasma cutting machine, welding machine and other forming machines.

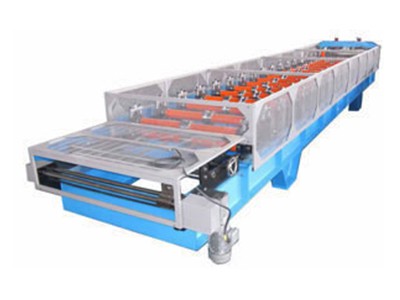

    2. Roof/Wall Panel Roll Forming Machine As a renowned roll forming machine manufacturer and supplier in China, we can produce roof/wall panel roll forming machines according to your requirements. Learn more
    3. Based on the required profiles
      Can be equipped with electric/manual pre-shearing device for changing coils
      Can be covered with protection mesh

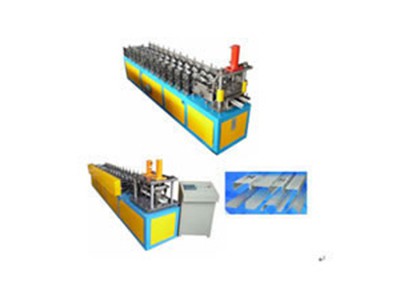

    2. Other Roll Forming Machines and Equipment Through our years of development, now we at Zhenhuan have the capacity of designing and producing the roll forming machine based on customer's requirements, whether it is stud/track drywall profile roll forming machine, gutter roll forming machine, octangular tube roll forming machine, slide rail guide rail roll forming machine, T-bar roll forming machine, cable tray roll forming machine, lipped channel roll forming machine, or PVC reinforcement profile roll forming machine etc. Learn more

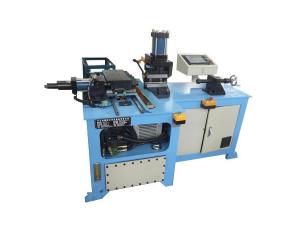

    2. Tube End Forming Machine The tube end forming machine is specially offered for tube end expanding, reducing, tapering, bellmouth forming, positioning ring forming, and so on. The pipe processed with our pipe end forming machine is generally used in the industry such as air condition, heater, and automobile. The tube end forming equipment can be designed with single station, three stations, four stations, five stations, and six stations. Learn more

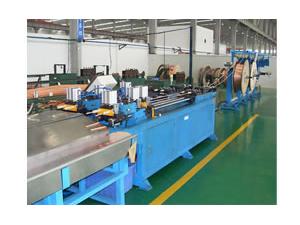

    2. Tube Cutting Machine The tube cutting machine is a NC cut-to-length machine for straightening coil copper tubes and cutting it into the length required, automatically. It adopts special cutting technology, resulting in chipless cutting and small deformation of the cutting section. Learn more
    3. Servo feeding, stable and high repositioning precision
      One time cutting four pieces, high efficient
      With stretch-breaking function, less mouth shrinking rate

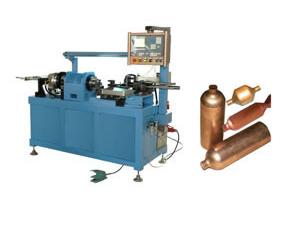

    2. Tube Spinning Machine The tube spinning machine is specially designed for closing or necking-in metal tubes for oil storage, muffler and filter drier for air condition, refrigerator, heater, automotive, etc. Learn more
    3. Two axis CNC control, small error, high speed
      Hydraulic system is equipped with water cooling system
      High speed mandrel speed 2800rpm, inverter control, speed adjustable
    2. Steel Fiber Making Machine This machine is specially designed for casting board and grids used in batteries. It can melt lead, keep constant mould temperature, feed certain lead liquid, cast and trim edge, all in one machine. Learn more

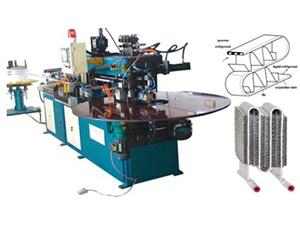

    2. Serpentine Tube Bending Machine This machine is specially for bending multiport / microchannel flat aluminum tubes into a serpentine shape for condensers and evaporators. It is comprised of a coil tube pay off strand, a straightening device, an automatic feeding device, an automatic bending head, and a stretch cutting device. It features PLC control and HMI operation, allowing the feeding length, bending radius and bending quantity to be preset on the touch screen. Learn more

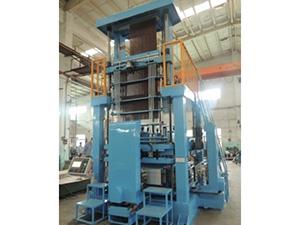

    2. Air Conditioner Radiator Core Making Machines The automatic fin press line includes an auto decoiler, a lubricant oil spreading device, high speed punch press, and a fin unloading and stacking device. It can work on both aluminum and copper fin plates.
      The line is PLC controlled, HMI operated, and fully automatic. We supply both double crank and single crank high speed punch presses.       Learn more

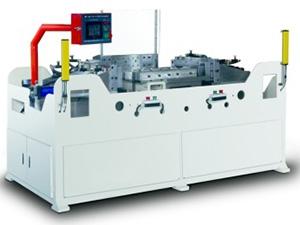

    2. Automobile Radiator Making Machine Automobile radiators are also called water tanks. In order to produce high quality automobile tanks, the following machines are needed.
      The hydraulic system uses large-flow plug in valves, and features high speed and stable operation. It has the functions of PLC control, digital display, as well as manual loading, automatic piercing and automatic unloading. With a light curtain protection system, the operation safety is guaranteed.       Learn more
