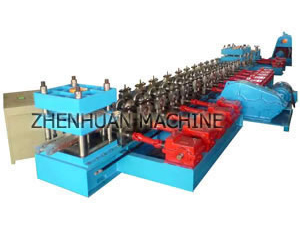

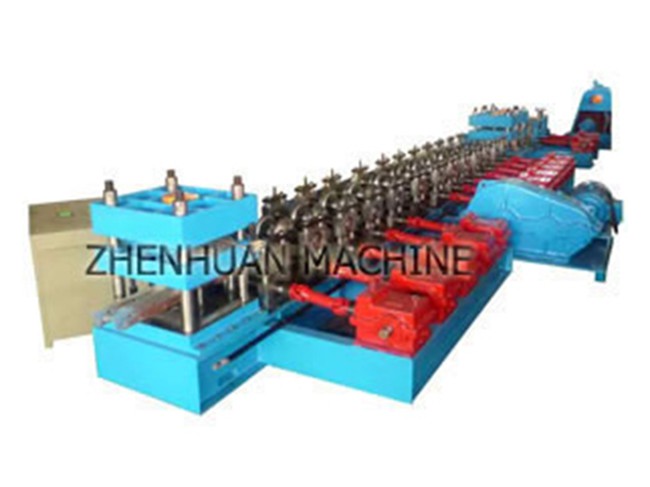

Expressway Guard Rail Machine

Description of Expressway Guard Rail Machine:
This expressway guard rail forming machine is mainly composed of mechanical decoiler, feeding & guiding device, leveling device, pre-punching station, roll forming unit, hydraulic mould cutting device, hydraulic station, PLC control system and unloading rack.

Product Application of Expressway Guard Rail Machine:
The product of this roll forming machine is widely used as guard rail for expressway.

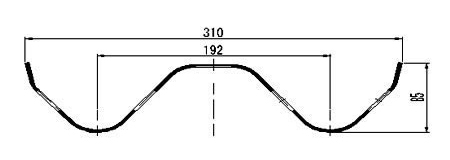

Profile:

Technical Data of Expressway Guard Rail Machine:

Suitable material: 3mm thick, width less than 500mm, Q235A steel sheet.
Working speed: approx. 5-12m/min
Total power: approx. 38kw
Roller material: GCr15, quenched
Roller shaft material: 45# steel with heat treatment
Blade, mould material: Cr12 steel

In addition to expressway guard rail machine, we can also provide other roll forming machines, such as guardrail post roll forming machine, welding machine, fence post roll forming machine, anti-collision elbow forming machine, and so on.
