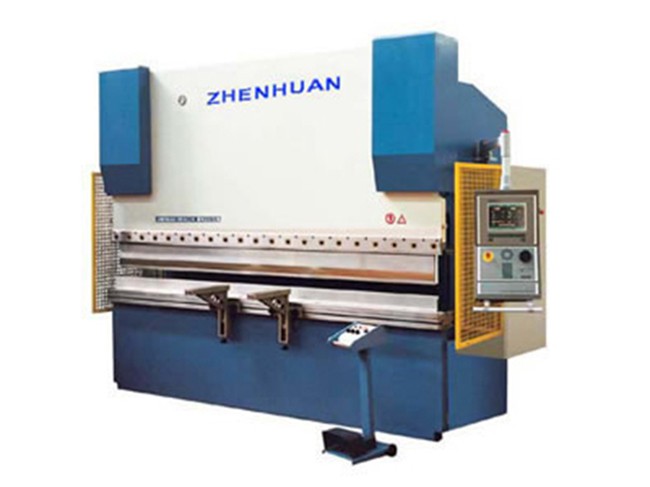

WC 67Y Series Hydraulic Press Brake

Inquiry Form

Description of WC 67Y Series Hydraulic Press Brake:
This hydraulic press brake is normal numeric control, without CNC control system. The adjustment of backgauge and ram stroke is manual.

Features of WC 67Y Series Hydraulic Press Brake:
- Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.
- Hydraulic top-drive, steadiness and reliability.
- Mechanical stop, steel torsion bar to maintain synchronization, high precision.
- Motorized-adjusting device of backgauge and rams stroke, adjusted by handwheel, numerical display.
- Deflection compensation unit is installed on the top die.
- For the machine size is more than 250ton, length 4000mm, it adopts manual crowned bottom die holder .
- The hydraulic press brake is guarded with safety interlocker.

WC 67K Series CNC Hydraulic Press Brake

Features of WC 67K Series NC Hydraulic Press Brake:
1 Main machine selects WC67Y series press brakes.
2 Equipped with CNC control system from ESTVN, DELEM or YBELEC.
3 Equipped with world's famous hydraulic valves, oil pump, ball screw & linear rail, raster ruler, etc.

Technical Parameters of WC 67K Series CNC Hydraulic Press Brake

Code Nominal Pressure Length of Worktable Throat Depth Ram Stroke Number of Stroke Motor Power Weight Overall Dimensions (L×W×H)
kN mm mm mm min-1 kW kg mm
40/2200 400 2200 200 100 11 4 2800 2300×1300×1700
40/2500 400 2500 200 100 11 4 3200 2600×1300×1700
63/2500 630 2500 250 100 10 4 4800 2600×1400×2100
63/3200 630 3200 250 100 10 4 5500 3300×1400×2100
80/3200 800 3200 320 100 8 7.5 6100 3300×1450×2150
80/4000 800 4000 320 100 8 7.5 7000 4100×1450×2150
100/3200 1000 3200 320 120 8 7.5 7200 3300×1500×2200
100/4000 1000 4000 320 120 8 7.5 8500 4100×1500×2230
125/3200 1250 3200 320 120 8 7.5 7400 3300×1500×2260
125/4000 1250 4000 320 120 8 7.5 8800 4100×1500×2260
160/3200 1600 3200 400 200 8 11 10600 3300×1700×2400
160/4000 1600 4000 400 200 8 11 12800 4100×1700×2450
160/6000 1600 6000 400 120 7 15 17000 6200×1700×2550
200/3200 2000 3200 400 200 7 15 14000 3400×1800×2700
200/4000 2000 4000 400 200 7 15 17000 4200×1800×2750
200/6000 2000 6000 400 200 7 15 22000 6200×1800×3000
250/6000 2500 6000 400 200 7 18.5 30000 6200×1900×3100
300/6000 3000 6000 400 200 6 22 36000 6200×2000×3200
300/7000 3000 7000 400 200 6 22 40000 7200×2000×3400
400/7000 4000 7000 400 250 5 30 45000 7200×2100×3600
