Hydraulic Press

There are several kinds of hydraulic presses for different purposes. If you don't know how to choose, please tell us your detailed requirements or product information, and we can give you the best suggestion.
  • YQ32 Four-column Universal Hydraulic Press
  • YQ27 Single Action Hydraulic Stamping Press
  • YHD-28 Series Double Action Hydraulic Stretching Press

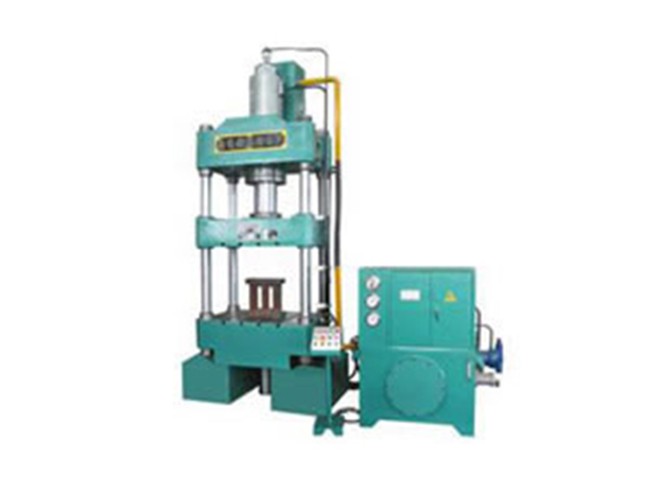

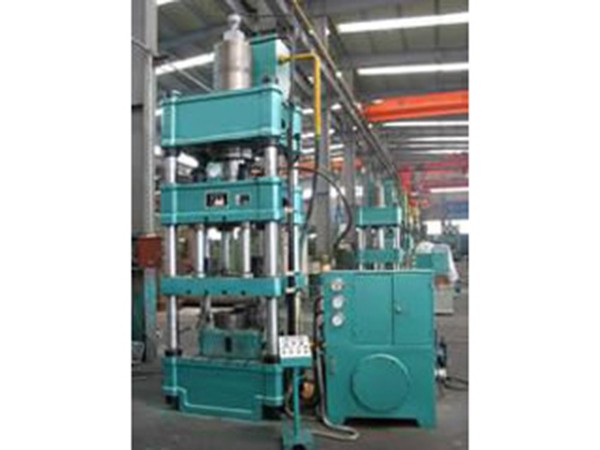

YQ32 Four-column Universal Hydraulic Press
YQ32 Four-column Universal Hydraulic Press

This four-column hydraulic press is suitable for stretching, bending, flanging, cold extruding, punching and cutting purposes. It can also be used for forming plastic, insulation materials.

Features
  • Four-column structure, simple and economical.
  • Hydraulic system adopts pin-fit valve integration system, with the advantages of reliable action, long life, small hydraulic impact, no leakage.
  • Electric control system is separate. You can pre-set fixed stroke or fixed pressure.
  • Pressure-retaining, time delay.
  • Tonnage from 40T to 1000T
Optional Accessories

Punching/cutting cushion, movable worktable, phototube safety device, oil cooling device, touch screen, PLC.

Request a Quote
Technical Parameters
Item YHD-32
40 63 100 100 160 160B 200 315 400 500 500C
Nominal force KN 400 630 1000 1000 1600 1600 2000 3150 4000 5000 5000
Ejecting force KN 120 190 190 190 400 400 400 630 630 1000 1000
Hydraulic pressure MPa 25 25 25 25 25 25 25 25 25 25 25
Max. slide stroke mm 450 500 600 700 700 700 800 800 900 900 900
Max. ejecting stroke mm 150 200 200 200 200 200 250 300 300 350 350
Max. open height mm 700 750 880 880 900 1000 1100 1250 1250 1500 1500
Stroke speed Idle stroke mm/s 20 20 22 120 100 100 100 100 100 100 100
Working mm/s 14 14 14 14 12 12 8 6-8 5-7 5 6
Returning mm/s 45 120 47 120 70 70 52 60 45 70 70
Worktable size L-R mm 500 580 720 720 680 1000 1000 1260 1240 1400 2400
F-B 460 500 580 580 620 800 900 1200 1200 1400 1400
Motor power kW 5.5 7.5 7.5 7.5 7.5 7.5 15 15 15 37 37

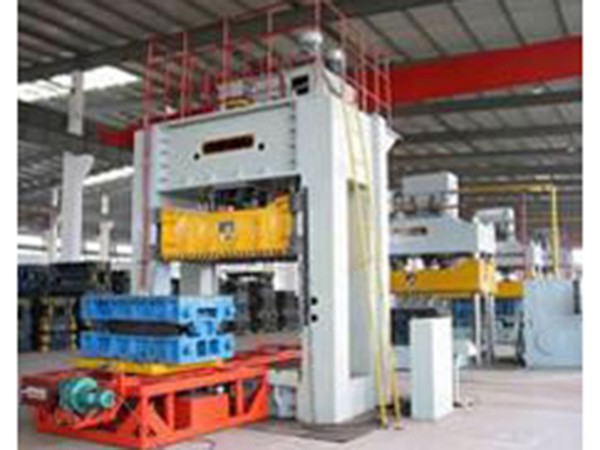

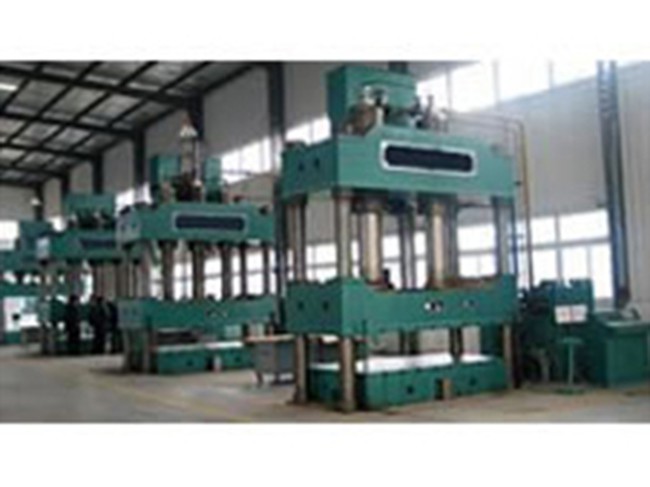

YQ27 Single Action Hydraulic Stamping Press
  • YQ27 Single Action Hydraulic Stamping Press
  • YQ27 Single Action Hydraulic Stamping Press
    • YQ27 Single Action Hydraulic Stamping Press

    This single action hydraulic stamping press is designed for stretching, bending, flanging, cold extruding, punching and cutting purposes, especially for automotive parts, household appliances, kitchen appliance, etc.

    Features
    • Four-column type: simple, economical and high capability; Frame type: good rigidity, high precision, anti load-deflection.
    • Hydraulic system adopts pin-fit valve integration system, which is reliable, durable, causes small hydraulic impact and is less liable to leakage.
    • Imported PLC control system is separate, with thee operation methods: adjustment, manual and semi-automatic.
    • There is hydraulic pad inside the bottom frame whose working (with knock-out, without knock-out, flanging) can be controlled from the operation panel.
    • Tonnage from 63T to 2000T
    Optional Accessories

    Punching/cutting cushion, movable worktable, phototube safety device, oil cooling device, etc.

    Request a Quote
    Technical Parameters
    Item YHD27
    100 200 315 400 500 630 800 1000 1250 1500
    Nominal force KN 1000 2000 3150 4000 5000 6300 8000 10000 12500 15000
    Ejecting force KN 100 450 600 650 900 1200 1200 1800 2500 3200
    Max. opening height mm 900 1100 1250 1350 1500 1500 1500 1500 1800 1800
    Cushion force KN 200 630 1600 2000 2000 2000 3000 3000 3500 4000
    Cushion stroke mm 200 250 300 350 350 350 350 350 400 400
    Slide stroke mm 600 700 800 800 900 900 900 900 900 900
    Sliding block stroke speed Idle stroke mm/s 120 100 100 100 100 80 80 80 80 80
    Working mm/s 14 15 10 9 14 10 16 12 9 14
    Returning mm/s 120 70 60 50 70 55 90 65 45 70
    Cushion stroke speed Ejecting force mm/s 50 40 20 15 30 30 30 30 30 30
    Returning mm/s 100 80 40 30 60 60 60 60 60 60
    Worktable size L-R mm 850 1000 1200 1200 1500 3000 3000 3000 3000 3000
    F-B mm 600 800 1200 1200 1200 1600 1800 2000 2000 2000
    Cushion size L-R mm 650 600 800 800 1000 2200 2200 2200 2200 2200
    F-B mm 400 500 800 800 800 1200 1250 1500 1500 1500
    Movable worktable capacity t - - - - 15 15 15 15 20 20
    Motor power kW 7.5 15 22 22 44 50 60 70 80 160

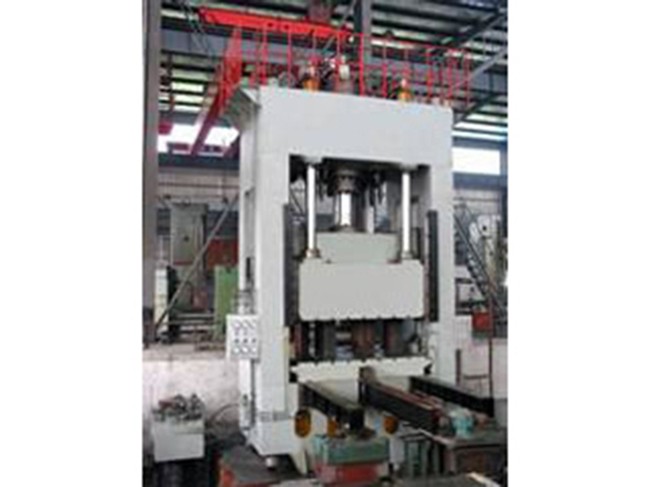

    YHD-28 Series Double Action Hydraulic Stretching Press
  • YHD-28 Series Double Action Hydraulic Stretching Press
  • YHD-28 Series Double Action Hydraulic Stretching Press
    • YHD-28 Series Double Action Hydraulic Stretching Press

    This double action hydraulic stretching press can perform all kind of stretching purposes, especially for various containers, automotive covers, household appliance, kitchen appliance, etc.

    Features
    • Four-column type: simple, economical; Frame type: rigid, precise and load deflection resistant.
    • Hydraulic system adopts pin-fit valve integration system, reliable action, long life, small hydraulic impact, few potential leakage possibilities.
    • Imported PLC control system is separate, with thee operation methods: adjustment, manual and semi-automatic.
    • Tonnage from 63T to 2600T
    Optional Accessories

    Punching/cutting cushion, movable worktable, phototube safety device, oil cooling device, etc.

    Request a Quote
    Technical Parameters
    Item YHD28
    40/63 63/100 200/300 315/400 400/630 500/800 630/1030 1200/2000 2000/2600
    Nominal force KN 630 1000 3000 4000 6300 8000 10300 20000 26000
    Stretching force KN 400 630 2000 3150 4000 5000 6300 12000 20000
    Pressing force KN 300 400 1000 800 2300 3000 4000 8000 6000
    Ejecting force KN 190 190 400 630 1000 1000 2000 4000 1000
    Hydraulic pressure MPa 25 25 25 25 25 25 25 25 25
    Stretching stroke mm 500 600 700 800 800 1000 1300 1350 2000
    Edge pressing stroke mm 300 300 400 400 800 1000 1300 1350 2000
    Stretching sliding block size L-R mm 560 720 1000 1260 1400 3000 1900 2000 2000
    F-B mm 500 580 900 1200 1400 2200 1500 1950 1800
    Edge pressing sliding block size L-R mm 560 720 1000 1260 1400 3000 2600 3000 3500
    F-B mm 500 580 900 1260 1400 2200 2200 2500 3500
    Worktable size L-R mm 560 720 1000 1260 1400 3000 2600 3000 3500
    F-B mm 500 580 900 1200 1400 2200 2200 2500 3500
    Opening height of sliding block for stretching mm 1100 1300 1400 1500 1700 1800 2000 2600 4500
    Opening height for edge-pressing sliding block mm 700 800 900 1000 1150 1800 2000 2400 4500
    Stroke speed of sliding block for stretching Idle stroke mm/s 120 120 100 100 100 100 100 100 100
    Working mm/s 20 12-14 15 10 12 12 10-12 10 10
    Returning mm/s 100 120 52 60 80 100 80 80 80
    Machine dimension L-R mm 2500 4000 4000 4500 5600 5800 5700 7000 8000
    F-B mm 1500 2000 2000 2800 3000 3000 2800 2800 3800
    H mm 3200 4100 4400 4600 5500 6400 7400 9500 8800
    Motor power kW 5.5 7.5 15 22 30 50 60 154 154
