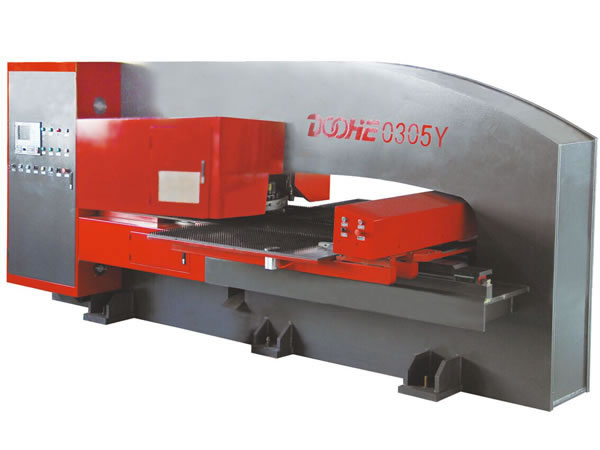

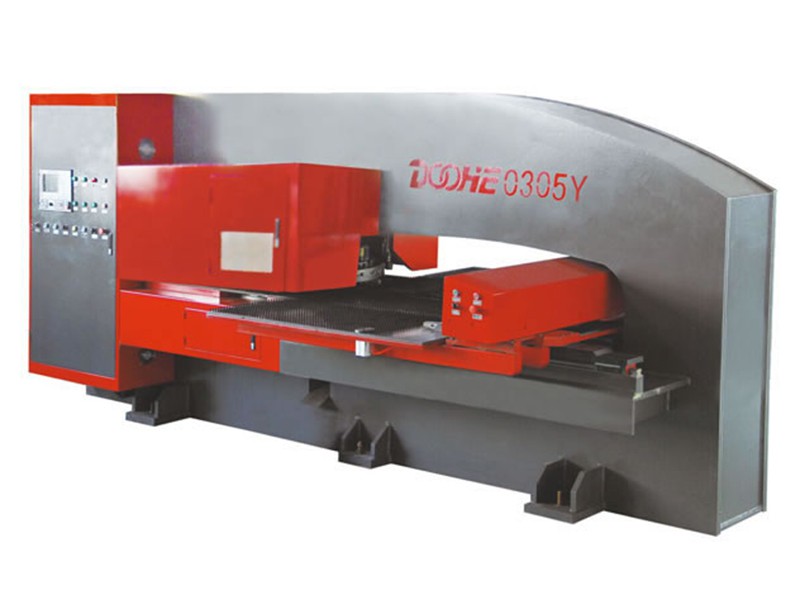

DESCRIPTION OF CNC TURRET PUNCH PRESS
The CNC turret punch press possesses good performance, high efficiency, and convenient operation. It is ideal for automotive, decoration, processing, and electric power industries. With the adoption of CNC technology, this equipment enables the workpiece to be deposited accurately and quickly. It can automatically choose the tools in the turret for punching holes with different sizes, shapes, and distances. The CNC turret punch press can produce round, square, or oval holes by stepping method.

Standard Tool Magazine of CNC Turret Punch Press

Die Station Hole Size (mm) Tool Station Number
16 18 24 32
A 3-12.7 4 8 12 16
B 12.7-31.7 8 8 8 12
C 31.7-50.8 4 2(1) 2 2
D 50.8-88.9 0 0(1) 2 2

Technical Parameters of CNC Turret Punch Press

Item SZC-0255 SZC-0305
Punching force 250kN 300kN
Max. punching thickness ≤6mm
Working area 2500×1250mm (or customized)
Max. workpiece weight 210kg
Punching speed 230HPM 300HPM
Worktable moving speed ≤60m/min
Punching accuracy ±0.1mm
Air flow 0.1m3/min
Air pressure 0.5MPa
Die stations 16 18 24 32
Machine weight 13T 15T

Note: Our company also can supply other CNC turret punch press with higher production capacity.
