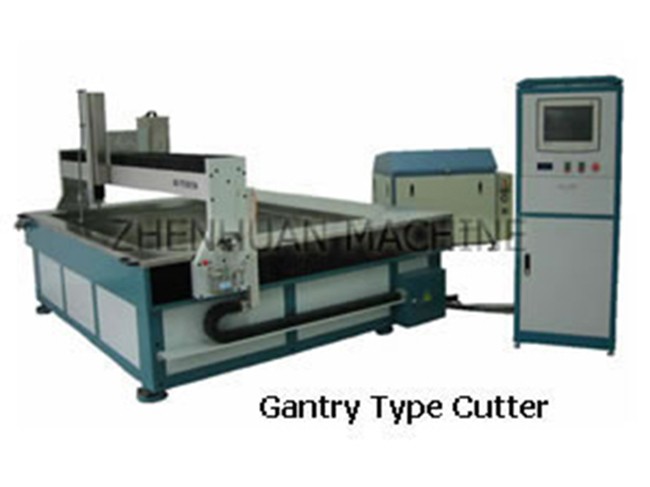

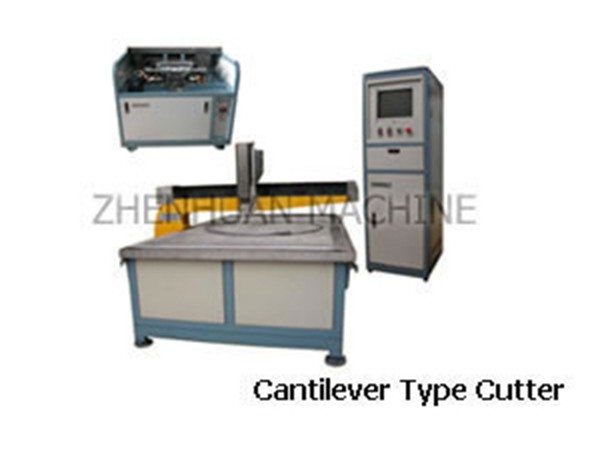

Water Jet Cutting Machine

Features of Water Jet Cutting Machine
1) This cutting machine is free of heat-affected zone (HAZ) or heat distortion.
2) It provides easy control, high accuracy and excellent edge finishing without frayed edges or burrs.
3) Small kerf size (usually less than 1.2mm), low waste.
4) This water jet cutting machine can cut almost all kind of materials, even sandwich panels.
5) No heat generated.
6) It can cut plastic and rubber without giving out poisonous gas.

Technical Data of Water Jet Cutting Machine
1)Dimension of cutting table: can be supplied as requirements
2)Main driving motor: AC servo motor, 22kW, 380V, 50Hz
3)Control system: specially designed based on windows
4)Water jet pressure: 300MPa (44,000PSI) or 380MPa (560MPa)
5)Re-positioning accuracy: +/-0.01mm
6)Processing accuracy: +/-0.1mm
7)Speed: based on the material and its thickness

Note: We can design and manufacture water jet cutting machine based on detailed requirements.
