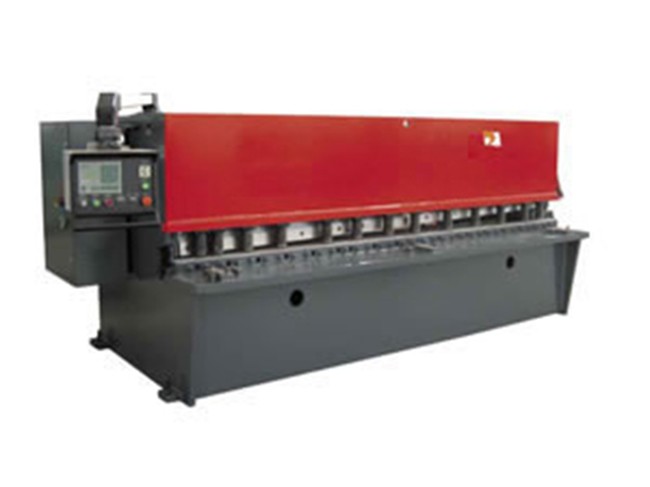

Description of Hydraulic Shear:
This hydraulic shear is installed with a motor-drive back gauge device with manual fine-adjusting, numerical displayed. A synchronous pneumatic loading car is for your choice.

Features of Hydraulic Shear:
1 The frame is welded with sufficient strength and rigidity
2 This hydraulic shear is equipped with a mechanism for quick adjusting blade clearance
3 This hydraulic shear is equipped with a shadow light device ensuring cutting operation.
4 A sensitive and reliable safety barrier is equipped on this hydraulic shear.
As a forming machine manufacturer and supplier in China, Zhenhuan can provide high quality roll forming machine, spiral duct forming machine, plasma cutting machine, welding machine and other forming machines for our global customers.

Main Technical Parameters of Hydraulic Shear

Code Thickness Width Angle Number of Stroke Backguage Range Motor Power Weight Overall Dimensions
mm mm ° min-1 mm kW kg mm(L×W×H)
4×2000 4 2000 1°30′ 22 20~500 4 2900 2660×1380×1480
4×2500 4 2500 1°30′ 20 20~500 4 3500 3110×1500×1450
4×3200 4 3200 1°30′ 18 20~500 5.5 5500 3840×1685×1620
4×4000 4 4000 1°30′ 15 20~500 5.5 7000 4640×1850×1700
6×2500 6 2500 1°30′ 18 20~500 7.5 6200 3130×1530×1600
6×3200 6 3200 1°30′ 15 20~500 7.5 7200 3840×1675×1620
6×4000 6 4000 1°30′ 14 20~500 7.5 8000 4630×1800×1620
6×5000 6 5000 1°30′ 8 20~500 11 11000 5770×2380×2255
6×6000 6 6000 1°30′ 7 20~800 11 15000 6810×2530×3250
8×2500 8 2500 1°30′ 10 20~500 11 6800 3140×1665×1620
8×3200 8 3200 1°30′ 9 20~500 11 8100 3587×1800×1650
8×4000 8 4000 1°30′ 8 20~600 11 9000 4667×1910×1650
8×5000 8 5000 1°30′ 7 20~600 18.5 14000 5612×2600×2350
10×2500 10 2500 1°30′ 10 20~600 11 8800 3200×1850×1760
10×3200 10 3200 1°30′ 10 20~600 11 9500 3900×1900×1760
12×2500 12 2500 2° 9 20~800 18.5 9000 3210×1920×1850
12×3200 12 3200 2° 8 20~800 18.5 10500 3910×2040×1920
12×4000 12 4000 2° 7 20~800 18.5 12600 4725×2000×2040
12×5000 12 5000 2° 8 20~800 22 15500 5750×2260×2240
16×2500 16 2500 2°30′ 8 20~600 22 10600 3300×2150×1880
16×3200 16 3200 2°30′ 8 20~600 22 12500 4105×2325×2220
16×4000 16 4000 2°30′ 7 20~600 22 15500 4905×2385×2250
20×2500 20 2500 2°30′ 6 20~600 30 13500 3400×2350×2700
20×3200 20 3200 2°30′ 5 20~800 30 17000 4100×2350×2730
20×4000 20 2500 2°30′ 5 20~800 30 21000 4900×2350×2760
25×2500 25 3200 3° 5 20~800 30 16500 3480×2410×2750
25×3200 25 4000 3° 5 20~800 37 20500 4180×2410×2690
32×2500 32 2500 3°30′ 4 20~800 45 22000 3300×3450×3200
