Friction Press, Friction Screw Press

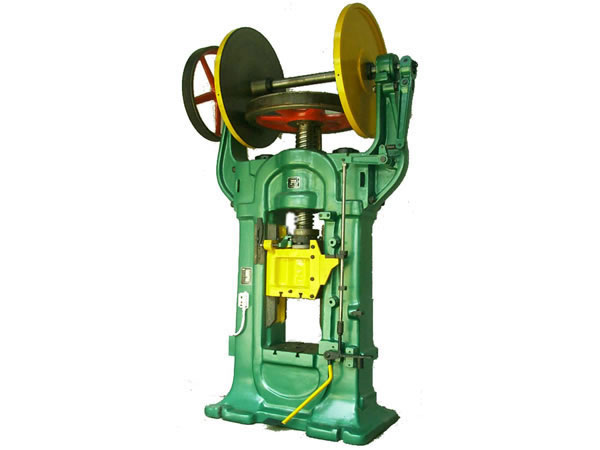

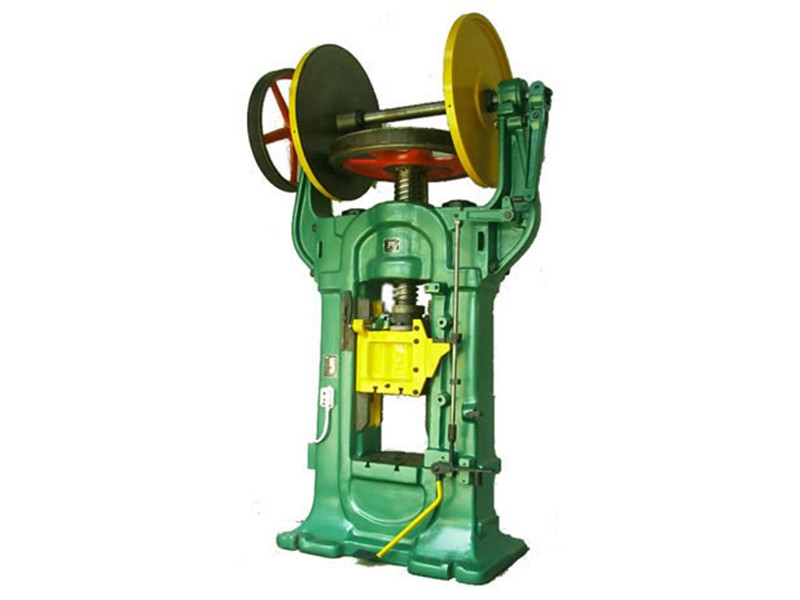

Friction Press

The friction press is a kind of universal pressing machine for diversified applications. Our friction screw press is widely employed for stamping, upset forging, bending, rectifying, fine pressing, among others.

Slide block stroke 200-600mm
Max. die height 235-470mm
Motor power 5.5-55kW
Weight 3572-51650kg

Request a Quote

Technical Data

Item			JA53-63	J53-100B	J53-160B	J53-300	J53-300B	J53-400D	J53-630B
Nominal force		KN	630	1000	1600	3000	3000	4000	6300
Energy		kJ	2.25	5	10	20	20	40	80
Slide block stroke		mm	200	310	360	400	400	500	600
SPM		min-1	35	19	17	15	15	14	11
Max. die height		mm	235	220	260	300	300	400	470
Worktable size		mm	315×270	500×450	560×510	650×570	650×570	820×730	920×820
Bottom of slide block		mm	275×227	390×280	440×444	520×485	520×485	636×636	760×700
Outline size	L	mm	1010	1393	1465	1603	1820	3200	4694
	W		1141	1884	2240	2581	2581	2812	4320
	H		2655	3375	3730	4345	4345	5165	6060
Motor power		kW	5.5	7.5	11	22	22	30	55
Weight		kg	3572	5780	11000	14800	15780	23735	51650
