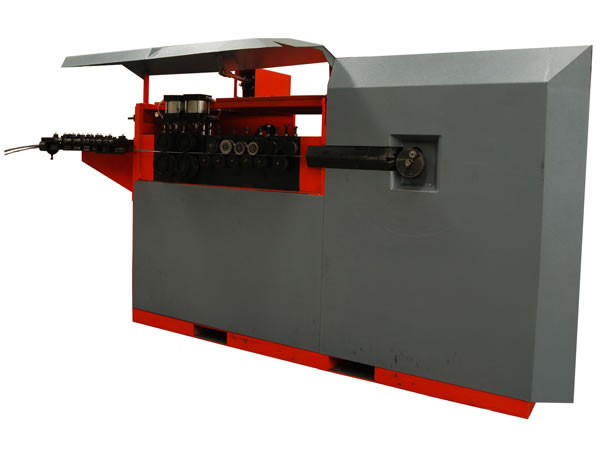

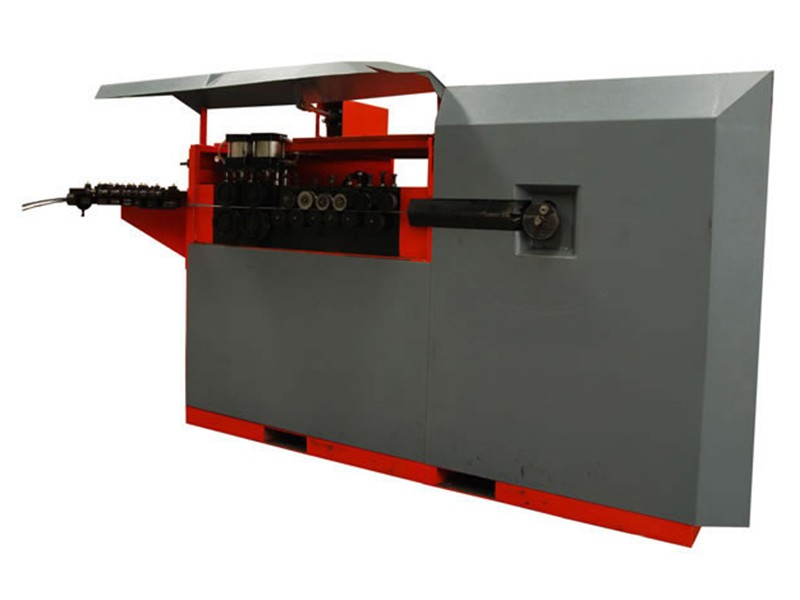

CNC Rebar Stirrup Bending Machine

As the name suggests, our CNC rebar stirrup bending machine is extensively seen in bending rebar and stirrup for reinforced concrete. Our stirrup bender is fully automatic. Equipped with HMI, the rebar bender supports parameter preset, such as rebar and stirrups shape, size, and quantity.

Technical Parameters of CNC Rebar Stirrup Bending Machine

Item Specifications
Single strand rebar diameter 4-12mm
Diameters of double strands 4-10mm
Max. bending angle 360°
Stirrup side length 50-1100mm
Max. pulling speed 100-120m/min
Max. bending angle 1100°/sec
Feeding length tolerance ±1mm
Bending angle tolerance ±1°
Rated electric power 19kW
Machine weight 1.5 tons
Machine size 3400×1200×1600mm
Productivity (example: stirrup with 8mm in diameter and 1.2m in length) About 10t per shift (8 hours)
