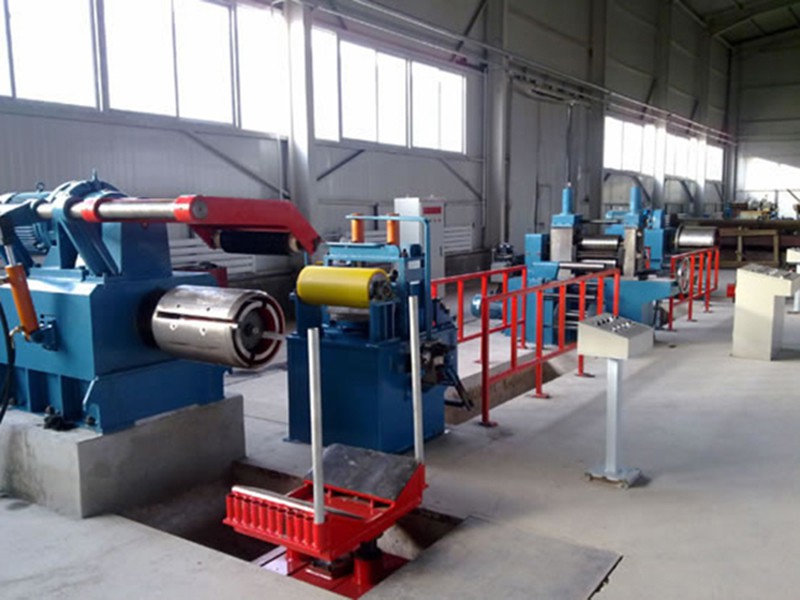

High Speed Slitting Line

Technical Data of High Speed Slitting Line:

Model/name 2×1300 2×1600 3×1300 3×1600
Coil thickness (mm) 0.3-2 0.3-2 0.5-3 0.5-3
Coil width(mm) 600-1300 600-1600 600-1300 600-1600
Slitting strips 2-30 2-30 2-15 2-15
Strip width precision ±0.1 ±0.1 ±0.15 ±0.15
Line speed 10-120 10-120 10-120 10-120
Coil weight(T) 10 15 20 30
Coil I.D.(mm) Ф508 Ф508 Ф508,Ф610 Ф508,Ф610
Recoiling I.D.(mm) Ф508 Ф508 Ф508 Ф610
Main shaft Dia 205 240 240 240

Note: HRC slitting line is also available. (Max. thickness: 16mm.)
Except this high speed slitting line, Zhenhuan also supplies sound quality roll forming machine, spiral duct forming machine, plasma cutting machine, welding machine etc. for global customers.
