Ironworker

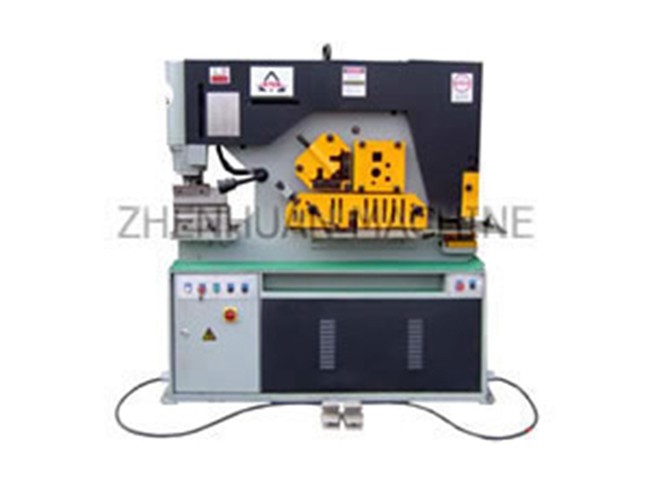

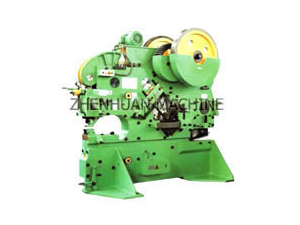

Ironworker has two kinds: hydraulic ironworker and mechanic ironworker. It combines the functions of punching, shearing, pressing and folding into one body.
Technical Data

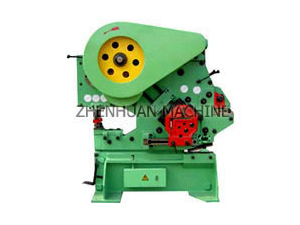

| Type | ||||
| Pressure (Ton) | 55 | 75 | 110 | 140 |
| Max. cutting thickness (mm) | 16 | 20 | 25 | 30 |
| Plate strength (N/mm2) | <= 450 | <= 450 | <= 450 | <= 450 |
| Cutting angle (degree) | 7 | 8 | 8 | 8 |
| Shearing size of one stroke | ||||
| (thickness x width mm) | 16*250 | |||
| 8*400 | 20*330 | |||
| 10*480 | 25*330 | |||
| 16*600 | 30*355 | |||
| 20*600 | ||||
| Ram stroke (mm) | 80 | 80 | 80 | 80 |
| Number of strokes (times/min) | 8 | 8 | 6 | 8 |
| Throat depth (mm) | 300 | 355 | 400 | 600 |
| Punching thickness (mm) | 16 | 20 | 25 | 26 |
| Max. Punching diameter (mm) | 25 | 30 | 35 | 38 |
| Power of main motor (kW) | 4 | 5.5 | 7.5 | 11 |
| Dimensions (LxWxH mm) | 1640*730*1770 | 1860*800*1900 | 2355*960*2090 | 2680*1040*2300 |
| Weight of machine (kg) | 1600 | 2000 | 4800 | 6800 |
| Model | ||
| Pressure (Ton) | 110 | 63 |
| Max. cutting thickness (mm) | 25 | 16 |
| Plate strength (MPa) | <= 450 | <= 450 |
| Cutting angle (degree) | 11 | 13 |
| Shearing size of one stroke (thickness x width, mm) | 28 x 160 | 20 x 140 |
| Ram stroke (mm) | 36 | 26 |
| Number of stroke (cycle/min) | 25 | 36 |
| Throat depth (mm) | 600 | 450 |
| Punching thickness (mm) | 25 | 16 |
| Max. punching diameter (mm) | 35 | 28 |
| Main motor power (kW) | 7.5 | 4 |
| Dimension (LxWxH, mm) | 2885 x 1290 x 2450 | 1877 x 1945 x 725 |
| Weight (kg) | 7000 |
Parameter of Cutting Functions
| Profile | Round Bar | Square Bar | Equal Angle | T-bar | I-beam | Channel | ||
| 90º cut | 45º cut | 90º cut | 45º cut | |||||
| Q35-16 | 45 | 40x40 | 120x120x12 | 100x100x10 | 120x120x12 | 100x100x10 | 180x94x6.5 | 180x68x7 |
| QA34-25 | 65 | 55x55 | 150x150x18 | 110x110x14 | 150x150x18 | 110x110x14 | 300x126x9 | 300x85x7.5 |
| Q35Y-16 | 45 | 40x40 | 120x120x12 | 70x70x8 | 120x120x12 | 60x60x8 | 126x74x5 | 126x53x5.5 |
| Q35Y-20 | 50 | 45x45 | 140x140x12 | 70x70x10 | 140x140x12 | 70x70x10 | 160x86x6 | 160x160x6.5 |
| Q35Y-25 | 60 | 50x50 | 160x160x14 | 80x80x7 | 160x160x14 | 80x80x10 | 200x102x9 | 200x75x9 |
| Q35Y-30 | 65 | 55x55 | 180x180x16 | 180x180x10 | 180x180x16 | 80x80x10 | 280x124x10.5 | 280x86x11.5 |
