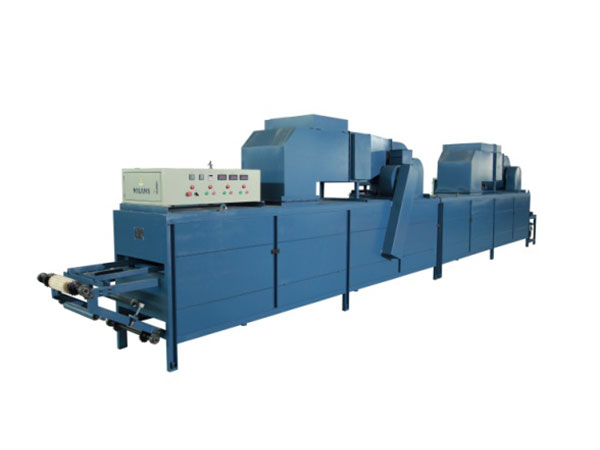

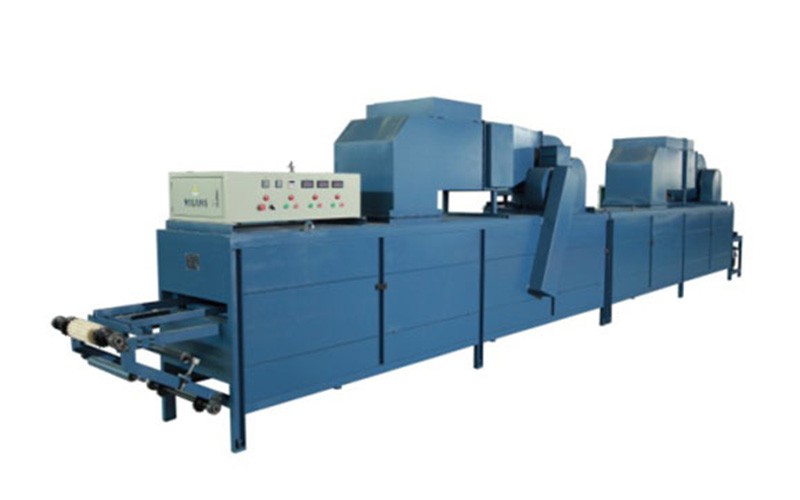

Lead-acid Battery Plate Surface Drying Oven
This drying oven is used for drying pasted plate surface at super high speed, with productivity of 60~130 panels per minute. This battery plate drying equipment adopts steam as main heating source and electric heating as auxiliary source, which can quickly dry the surfaces of pasted battery plate.
Main Features
- Double-heating chambers, better temperature evenness
- Rod chain transmitting (with fluorine tube), no damage to battery plates
- Circulating fan and top & bottom wind channels brings abundant hot air circulation, high heat coefficient of utilization
- Transmitting speed adjustable for various size plates
- Plates not easy chapped, very small internal moisture loss, less electric consumption than that of traditional electric heating oven
Main Technical Specifications
Item | Specifications |
Heating method | Electric & steam heating |
Effective oven length | 10m |
Productivity | 60-130 big panels per minute |
Water loss rate of plate | ≤3% |
Heating chamber temperature | Ambient ~300℃ |
Drying chamber temperature | Ambient ~ 180℃ |
Temperature error of heating chamber | ≤±5℃ |
Temperature error of drying chamber | |
Total electric power | 112kW |
Steam source | 0.4~0.6MPa, 200~350kg/h |
Outline dimension | 11230 x 1333 x 2600 mm |
Weight | About 3900kg |
