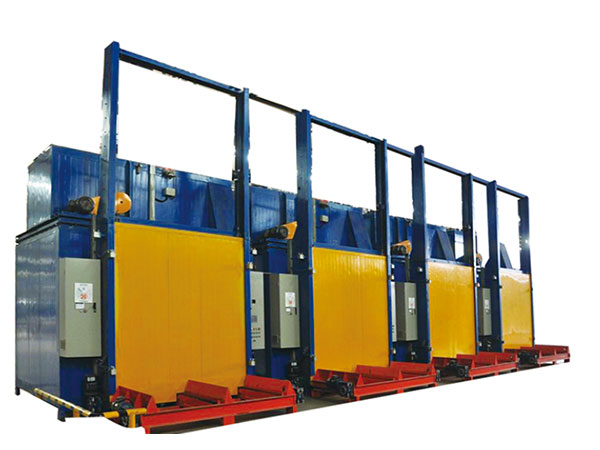

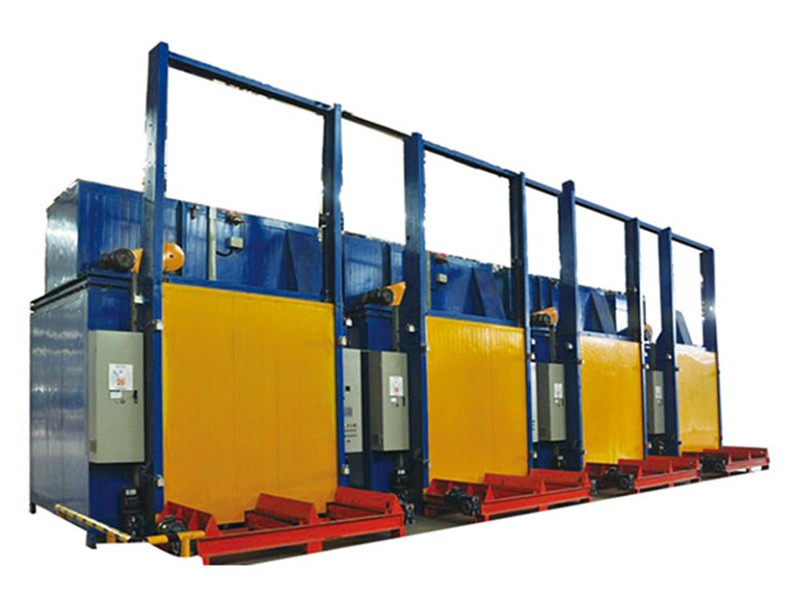

Pasted Battery Plate Curing Chamber

The curing chamber is designed with primary and assistant chambers, a separate steam generator, heat exchangers, a PID temperature controller, a PLC control system, a control cabinet, ventilators, etc.

Outline size 4400 x 3690 x 3900mm
Heating power 88kW
Humidity at drying ＜10%RH
Humidity at curing ≥ 95%RH

Request a Quote

Technical Specifications

Effective chamber size (W x D x H)3440 x 3490 x 2900mm
Outline size4400 x 3690 x 3900mm
Heating methodElectric heating tube
Heating power88kW
Motor power for circulating fan11kW
Drying temperatureAmbient temperature ~80℃
Curing temperatureAmbient temperature ~65℃
Humidity at drying＜10%RH
Humidity at curing≥ 95%RH
Temperature control accuracy± 2℃
Humidity control accuracy±3％RH
