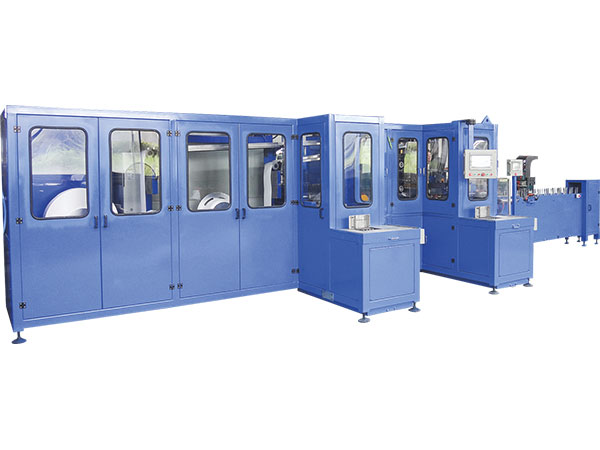

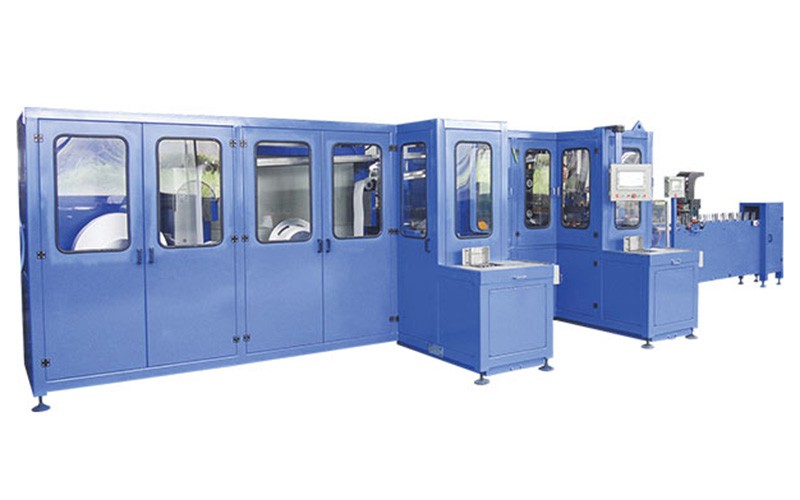

Battery Plates Enveloping & Stacking Machine
BF300 battery plates enveloping and stacking machine is specially designed for enveloping and stacking negative + positive plate groups.
- Envelopes both positive and negative plates
- Both odd and even battery plate quantity can be preset.
- Enveloping length is continuously adjustable.
- Working parameters can be stored and recalled for future use.
- Equipped with manual enveloping material supplementing function
- Automatic enveloping, stacking, grouping and alarm
Main Technical Specifications
|Applicable battery plate size (L x W)||100-150mm x 120-150mm (customized)|
|Production speed||260 plates per minute|
|Enveloping material cutting length error||±1mm|
|Plate stacking height||200mm|
|Stacking height error||＜15mm|
|Main motor power||19.5kW|
|Motor power for negative pressure fan||12.5kW|
|Machine dimension||8800 x 2460 x 1900mm|
- - Three sets of vacuum belt plate loading devices
- - Plate conveyor
- - Separator decoiler
- - Separator transportation system
- - Separator cutting device
- - Plate enveloping device
- - Group formation device
- - Plate collecting device
- - Dust collector
- - Electric control system
