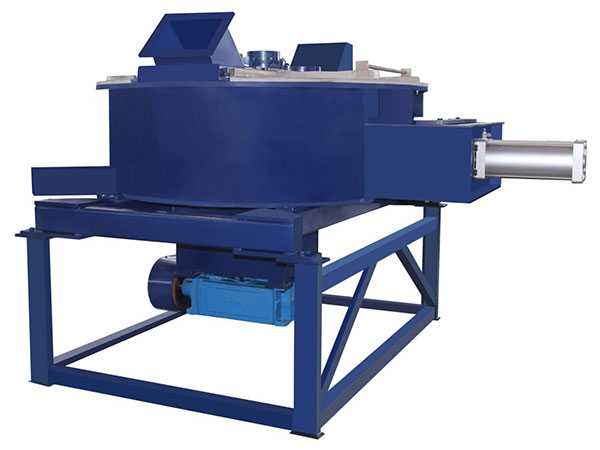

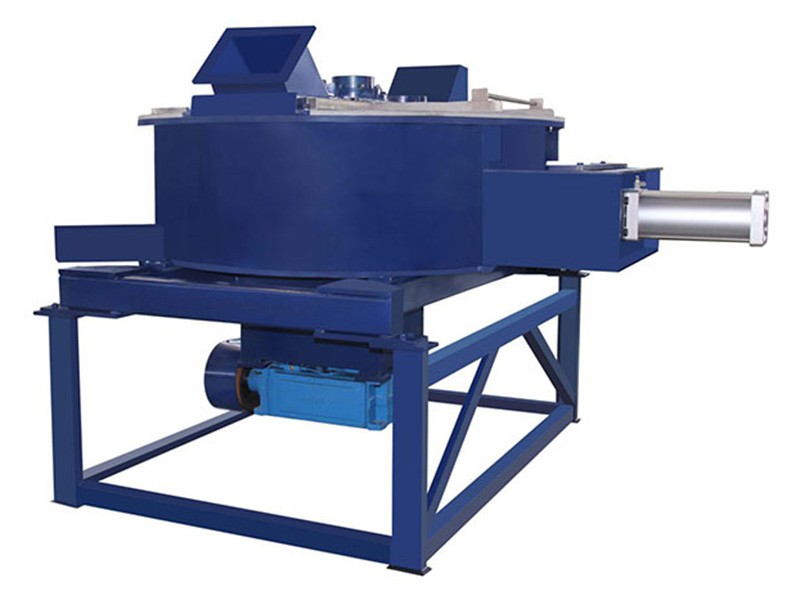

Paste Mixer
Paste mixer is used for mixing paste in the lead-acid battery production. It’s designed with several automatic operations including lead powder feeding and weighing, acid and water weighing, quick paste mixing and lead paste storage.
Main Features
- Water cooling: Both hopper bottom and side are cooled by the circulating water, assuring paste mixing under preset temperature.
- Slope vertical mixer blade design makes paste overturn and break off, delivering lead paste with high evenness.
- Convenient blade angle and clearance adjustment provides 1mm clearance between blade and hopper wall.
- An advanced tension sensor is used during weighing powder, acid and water, ensuring both weighing and re-weighing errors reach 0.5%.
- With special anti-corrosive designs, stainless steel is used to manufacture all the parts contacting paste and acid.
- Featuring PLC control and HMI operation; 30 programs can be saved in one machine.
Main Technical Specifications
Item | Specifications |
Machine model | HGX-500* |
Max. amount of lead powder | 500kg |
Max. paste storage weight | 1500kg |
Max. paste storage volume | Φ1150x580 mm |
Weighing precision | ±0.5% |
Acid tank | 570x630x480mm, 150kg |
Lead powder tank | Φ1100x1400mm, 1000kg |
Total power | 35kW |
* Paste mixer is available with customized capacities.
