Concrete Pipe Cage Welding Machine

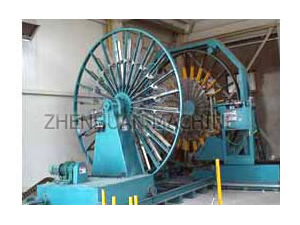

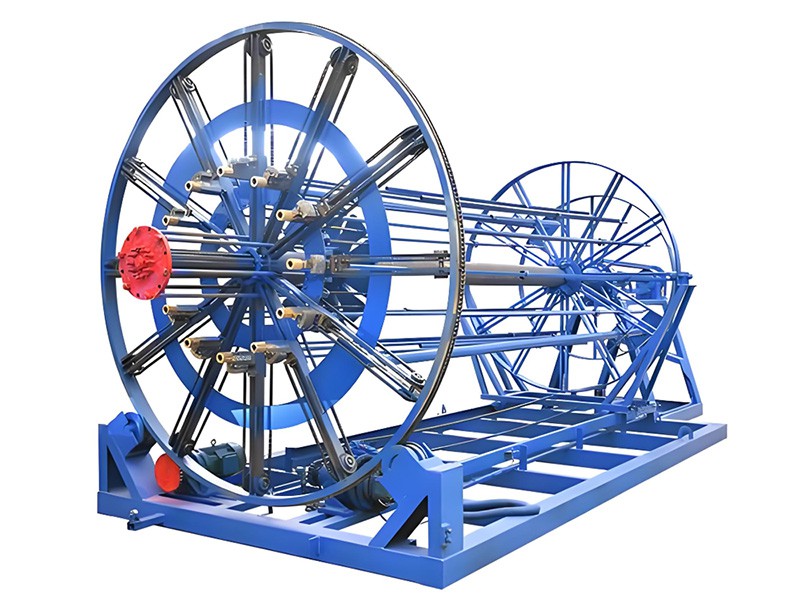

Description of Diameter-variable Roll Welding Machine
This roll welding machine, often referred to as cage welding machine, is specially designed for welding the reinforcement cage framework used in concrete drainage pipes.

Features of Diameter-variable Roll Welding Machine
1. The diameter is varied online automatically, controlled by PLC.
2. The welded cage framework can be for flat joint, tongued & grooved joint, bell & spigot joint concrete pipes.
3. In full stroke, the diameter can be varied automatically and shifted very quickly
4. Special designed synchronizer to ensure no twist on the formed framework
5. Auto alarm for faults and misoperation
6. Imported PLC, inverter, encoder and touch screen

Technical Data of Diameter-variable Roll Welding Machine

Item Specifications
Max. cage length 2500mm (or customized)
Cage diameter 300-1200mm/800-2400mm/2000-3000mm
Longitudinal rebar diameter 5-8mm
Spiral rebar diameter 3.5-6mm
Number of longitudinal rebar Max. 24pcs
Spiral pitch 20-150mm
Inclining degree of faucet 10-25 degree
Rotating speed 0-10rpm
Welding transformer power 100kVA/200kVA /200kVA

Note: Less-configuration type machine is also available.

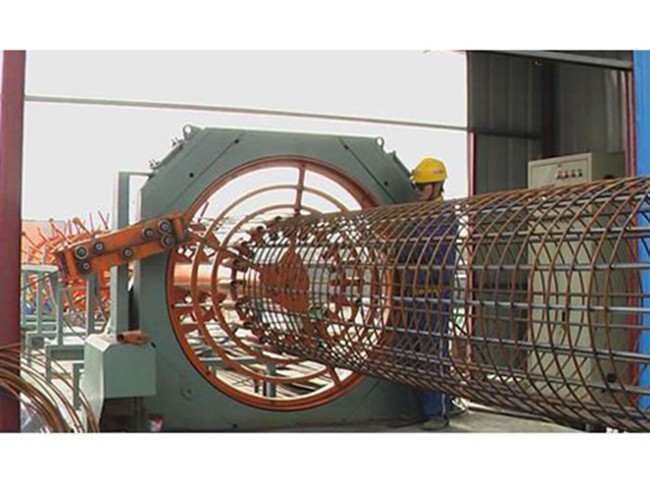

DC Tubular Pile Framework Roll Welding Machine

Features of DC Tubular Pile Framework Roll Welding Machine
1. DC power can assure the welding speed, prolong the life of welding electrodes and save at least 30% electric consumption
2. PLC, inverter, touch screen are imported
3. Densely-wind length on both ends of the cage and the hoop reinforcement interval can be pre-set on the touch screen.
4. Pulling speed is synchronized to the rotating speed of the main machine.

Note: There are AC welding machine and normal control machine, lower speed (about 5.5m/min to 6.8m/min), higher welding power (200kVA).

Technical Data of DC Tubular Pile Framework Roll Welding Machine

Item Specifications
Cage diameter 300-600mm/600-1200mm
Cage length Customized
Longitudinal rebar diameter 7-13mm
Spiral rebar diameter Less than 5mm
Spiral pitch 50-120mm
Main machine rotating speed 0-30rpm
Strength loss at welding spot Less than 5%
Tensile strength at welding spot More than 200kg
Welding transformer capacity 300kVA
Welding method Resistance welding

Zhenhuan supplies high quality roll forming machine, spiral duct forming machine, plasma cutting machine, welding machine and other forming machines.
