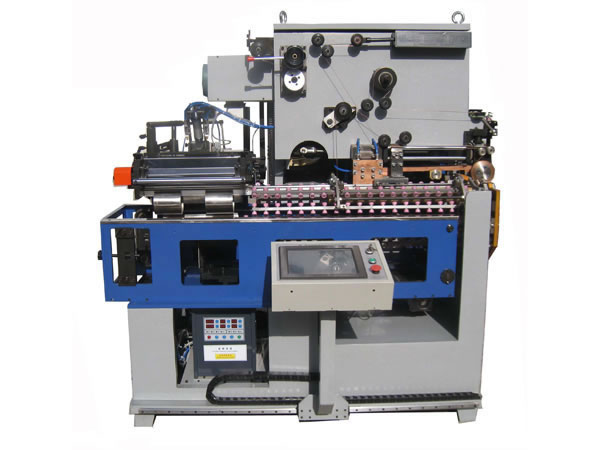

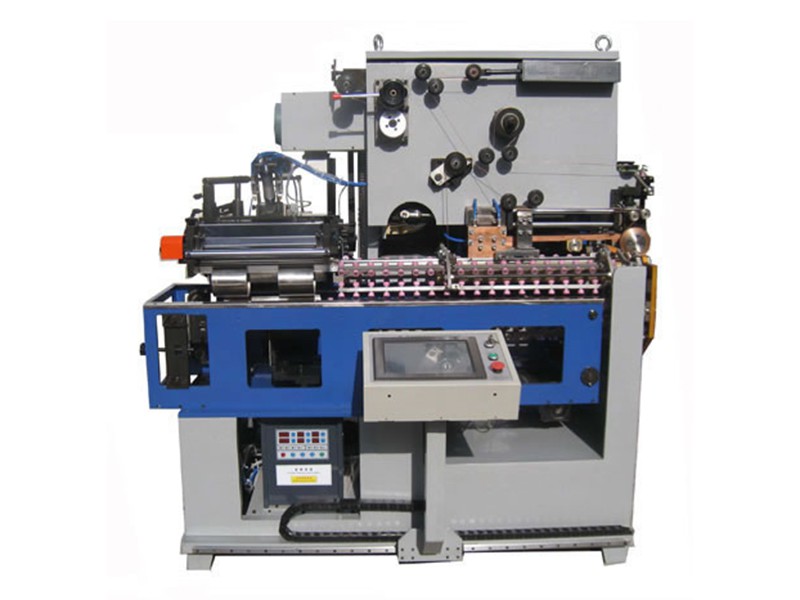

Automatic Tin Can Welding Machine

The automatic tin can welding machine is applicable for the production of various round tin can product, inclding paint can, oil tank, adhesive can, food can, artwork, etc.

Material thickness 0.15-0.4mm
Welding speed 18m/min
Tin can diameter 120-180mm
Overlap width 0.6-0.9mm

Request a Quote

Technical Parameters

Applicable raw materialTin plate T2-T3
Material thickness0.15-0.4mm
Welding speed18m/min
Production capacityMax. 120 cans/min
Tin can diameter120-180mm
Tin can heightMax. 250mm
Overlap width0.6-0.9mm
Applicable diameter of copper wire1.5mm, T2
Overall dimensions (L×W×H)2100×1900×1900mm
Cooling water≥0.3MPa, 10L/min
