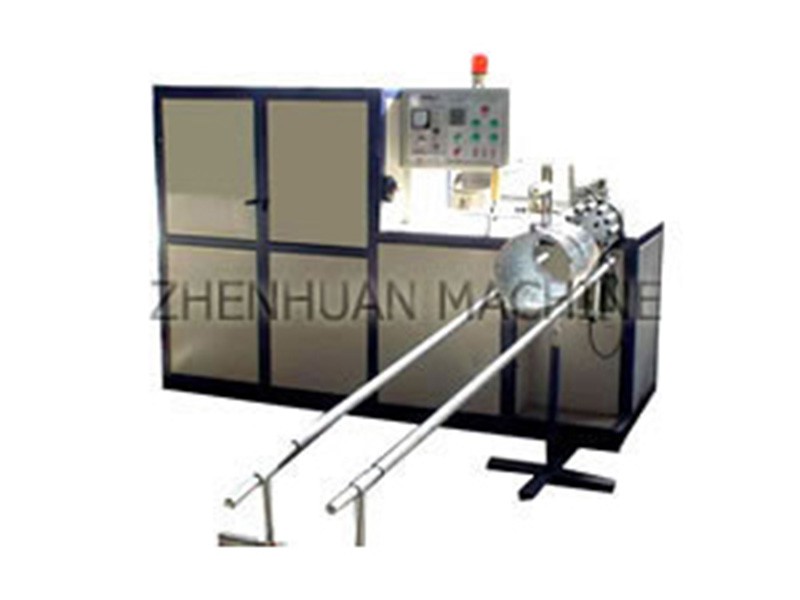

AFD-600 Aluminum Flexible Duct Machine

Zhenhuan is focusing on designing & developing HVAC ventilation duct machines, transformer making machines, lead-acid battery making machines, motor making machines, leather processing machines, heat exchanger making machines, car radiator & AC condenser making machines, home-used air conditioner and refrigerator making machines, hardware wire products making machines, tube & pipe making and processing machines, etc.

Inquiry Form

Description of AFD-600 Aluminum Flexible Duct Machine

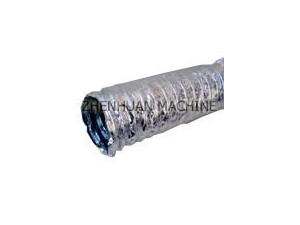

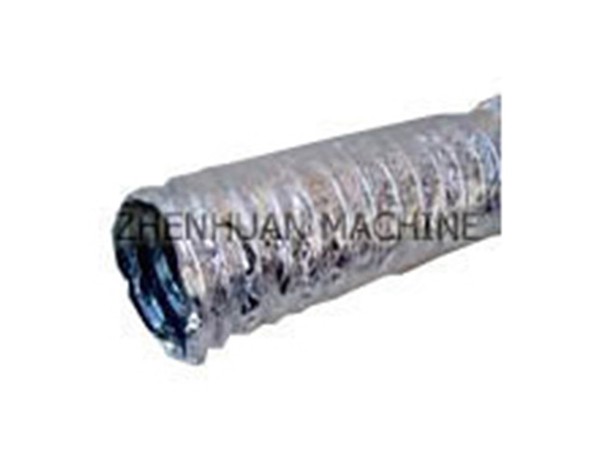

This aluminum flexible duct forming machine is specially designed for producing aluminum flexible ducts with aluminum foil or metalized PET film with steel wire reinforced for ventilation purpose.

Main Technical Data of AFD-600 Aluminum Flexible Duct Machine:

Item Specifications
Diameter of aluminum flexible duct 80-600mm
Length of aluminum flexible duct 1-10m
Raw material Metalized PET film 0.012mm in thickness, 35-50mm in width
Pure aluminum foil 0.025-0.035mm in thickness, 35-50mm in width
Steel wire Dia.: 0.8-1.4mm
Aluminum flexible duct Temperature resistance -30-140℃
Max. air flux 30m/s
Max. working pressure 2500Pa
Pitch between corrugations 20mm
Main driving motor power 1.5kW
Glue heating temperature 40-120℃
Electric heating power 2.4kW
Film/foil feeding speed 1-35m/min
Machine dimension About 2200×820×1550mm

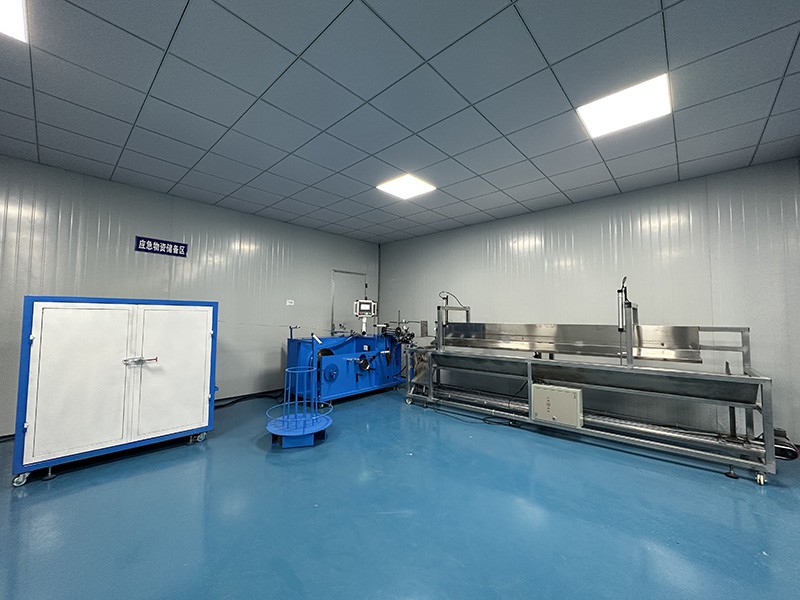

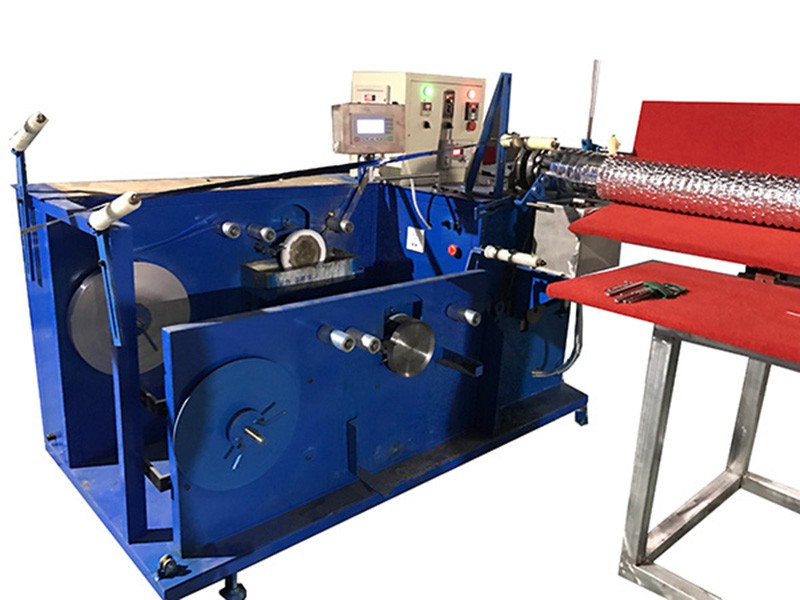

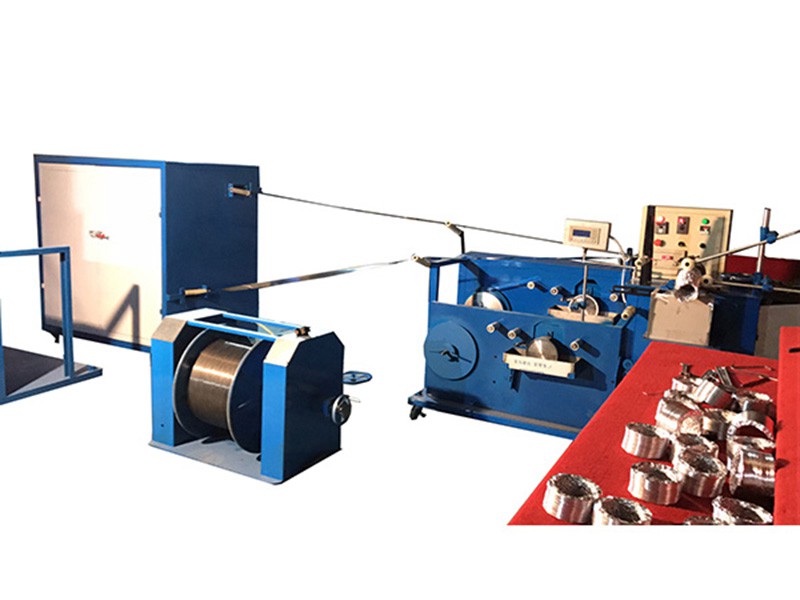

AFD-600D Aluminum Flexible Duct Forming Machine

This flexible duct forming machine could produce single layer aluminum duct, double-layer aluminum duct and aluminum duct with PVC lamination. It could be equipped with automatic cutting and automatic compression according to requirements to significantly improve production efficiency.

Main Technical Specifications of AFD-600D Aluminum Flexible Duct Forming Machine:

Item Specifications
Diameter range 60-600mm
Length of aluminum tube 1-10m
Raw material Metalized PET film, 0.023mm, width 40-60mm, steel wire 0.8-1.4mm dia.
Dimension (L x W x H) Main machine: 1900 x 1000 x 1400mm
Heating oven: 1600 x 1100 x 1650mm
Weight About 950kg
Main motor power 1.5kW
Temperature 40~120º
Electric heating power 2.4kW
Working speed 1~35m/min
Feature of finished ducts Temperature resistance: -30°C-140°C Max. air flux: 30m/s Max. working pressure: 2500Pa Pitch between corrugations: 20mm

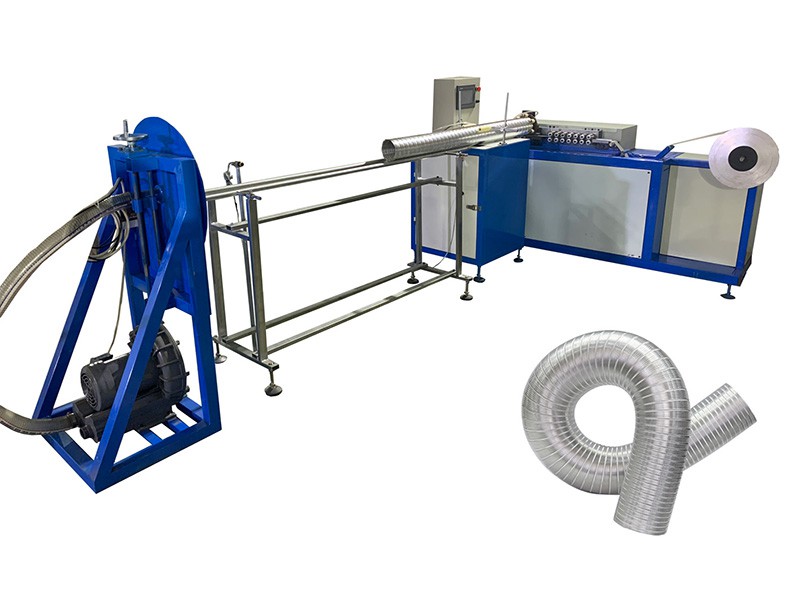

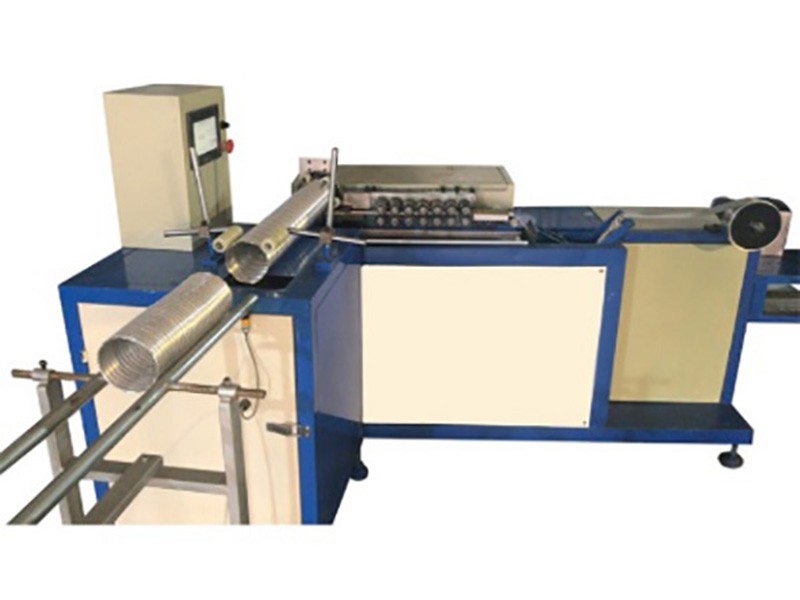

PAD-300 Aluminum Flexible Duct Forming Machine

Description of PAD-300 Aluminum Flexible Duct Forming Machine

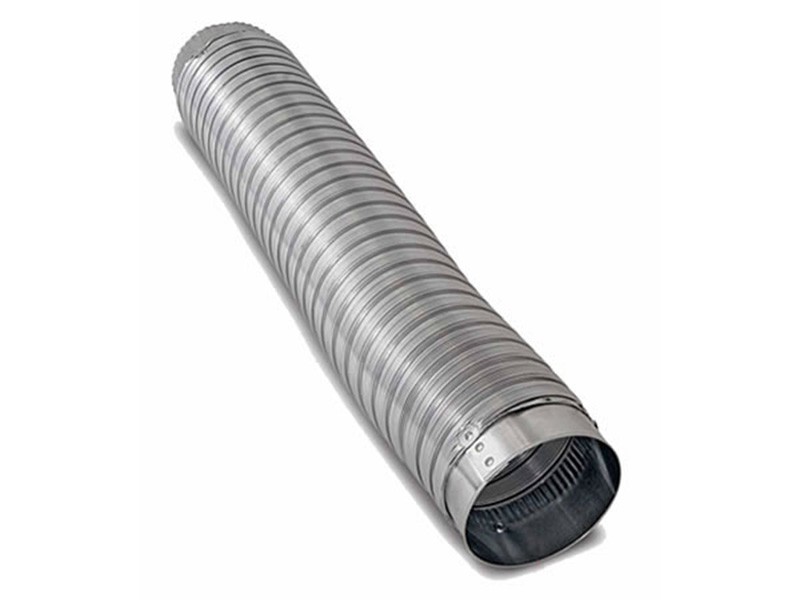

This aluminum flexible duct forming machine is specially used for producing aluminum flexible ducts with pure aluminum foil or stainless steel without steel wire reinforcement for various purpose. Especially our omnipotent mould can greatly save investment cost.

Main Technical Data of PAD-300 Aluminum Flexible Duct Forming Machine:

Item Specifications
Diameter range 150-450mm
Length of aluminum tube 100-8000mm
Raw material Pure aluminum foil: 0.05-0.15mm (code 8011, hardness H22)
Stainless steel, 0.08-0.18mm
Dimension 1800 x 650 x 1250mm
Weight About 400kg
Main motor power 1.5kW
Width of material 42~60mm

Besides this duct forming machine, other high quality forming machines are supplied by Zhenhuan.
