Square Duct Production Line III

Inquiry Form

Description of Square Duct Production Line III:

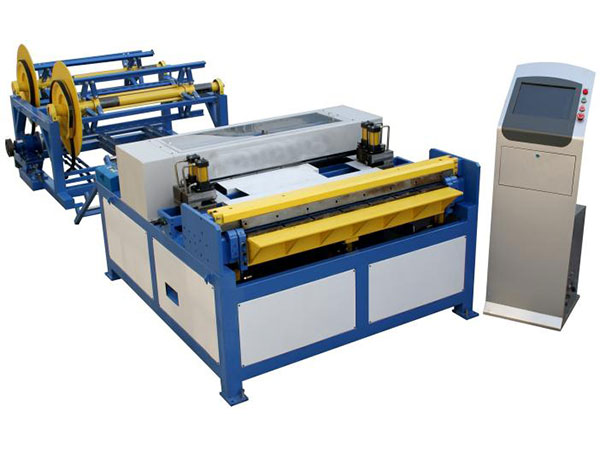

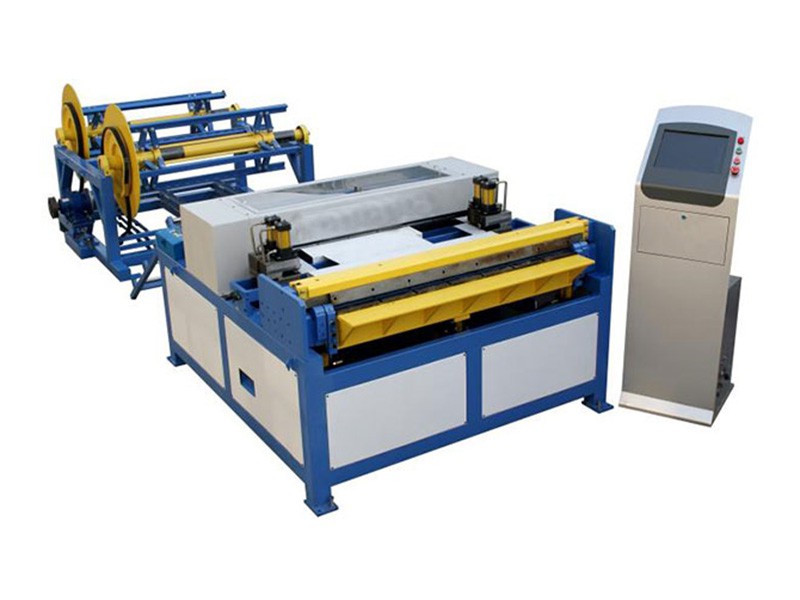

The production line III mainly consists of electric decoiler, leveling & grooving device, hydraulic notching & punching device, hydraulic shearer and hydraulic folder. The precision and reliability of this Square Duct Production Line III is guaranteed by using a computer with a closed-loop servo-system in the electrical control system. Various production lines can be configured according to your detailed requirements.

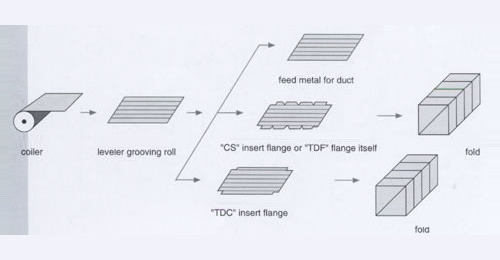

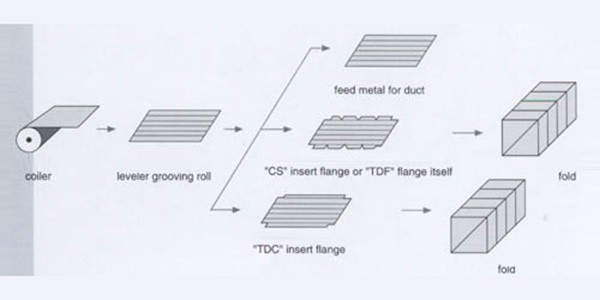

Working Flow of Square Duct Production Line:

Components of Square Duct Production Line III:
1 Two power metal feeding frames
2 One leveling & grooving roller machine
3 Four hydraulic notches and dies
4 Hydraulic shearer and folding machine
5 Industrial PLC control and specific software

Technical Data of Square Duct Production Line III:

Item Specification
Max. plate width for square duct 1300mm
Plate thickness 0.4-1.2mm
Length tolerance ±0.5mm
Diagonal tolerance ±0.8mm
Max. plate feeding speed 10m/min
Production capacity 1000m2 square ducts per shift
Machine dimension About 5600×2100×1500mm
Machine weight About 4500kg

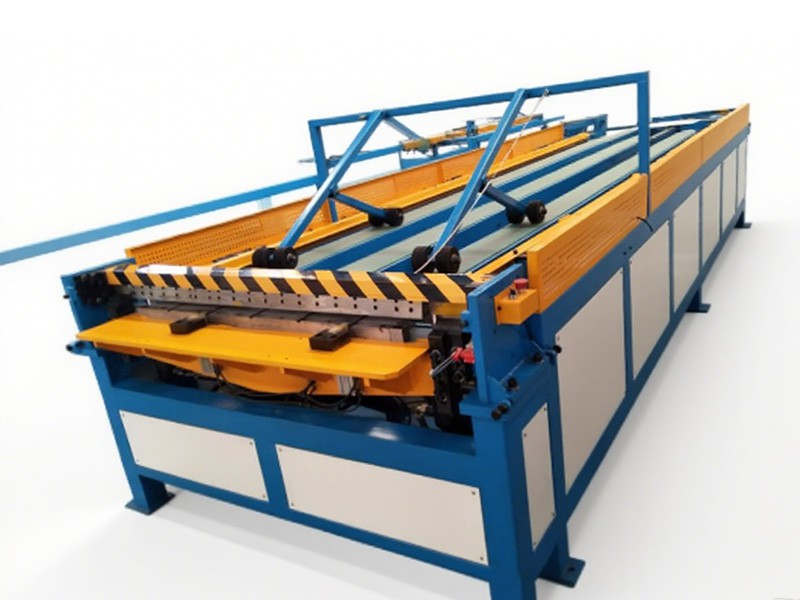

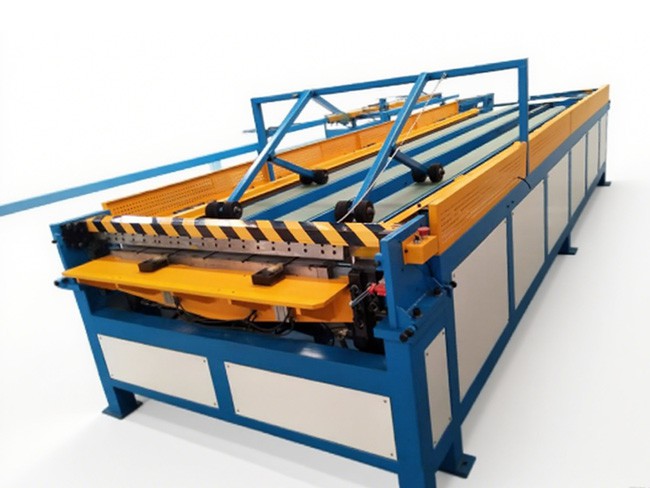

Note: We have other Square Duct Production Line IIIs for your selection, such as Square Duct Production Line III II, V and VII.

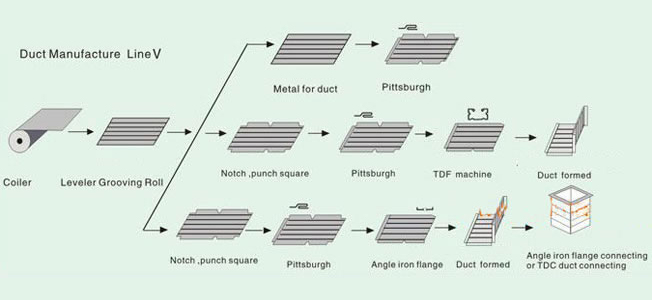

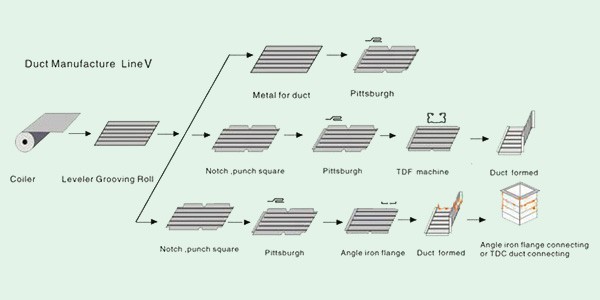

Working flow of square duct line V:

Zhenhuan supplies high quality roll forming machine, spiral duct forming machine, plasma cutting machine, welding machine etc. for global customers.
