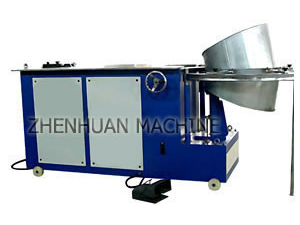

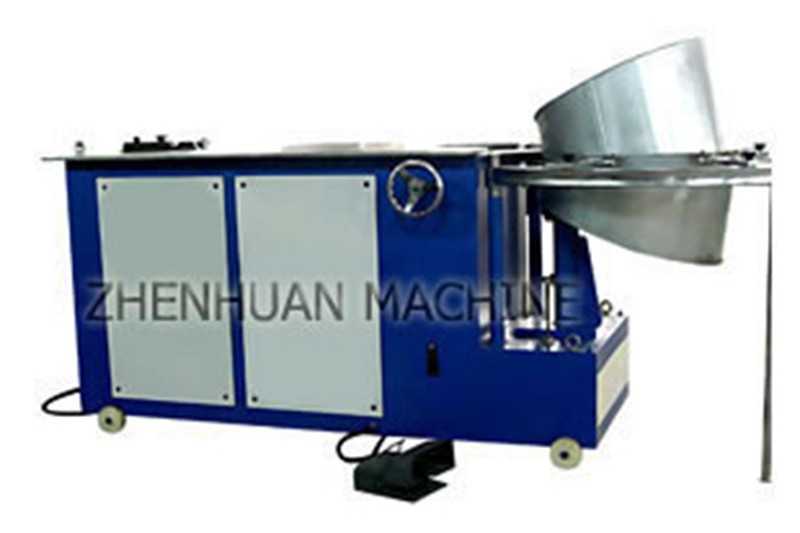

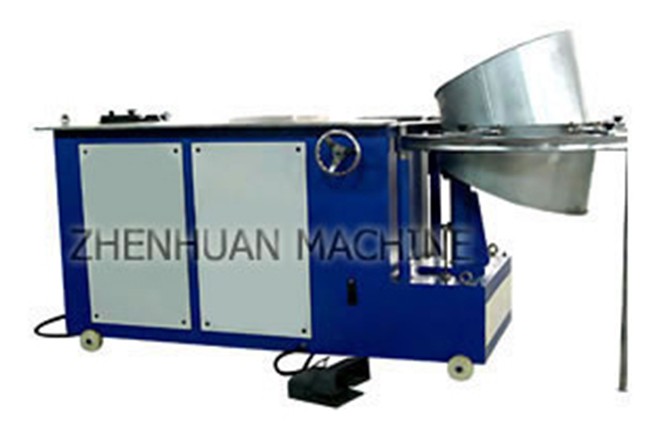

DCP-1000 Gorelocker

Through our years of development, now we at Zhenhuan have the capacity of designing and producing the roll forming machine based on customer's requirements, whether it is stud/track drywall profile roll forming machine, gutter roll forming machine, octangular tube roll forming machine, slide rail guide rail roll forming machine, T-bar roll forming machine, cable tray roll forming machine, lipped channel roll forming machine, or PVC reinforcement profile roll forming machine etc. Give us your profile, we will give you the machine.

This Gorelocker (also called as elbow making machine) is designed for producing round elbows in ventilation & air conditioning system.

Main Technical Data of DCP-1000 Gorelocker:

Item Specifications
Applicable material Galvanized steel, stainless steel, aluminum, copper
Raw material thickness Stainless steel 0.4-1.0mm
Galvanized steel 0.4-1.25mm
Aluminum, copper 0.6-1.25mm
Elbow diameter 125-1000mm
Max. segment angle 30 degree, 4 pieces for 90 degree elbow
Rotating speed of driver 7rpm
Driving motor power 380VAC, 1.5kW×2
Dimension 1400×800×900mm
Weight 750kg

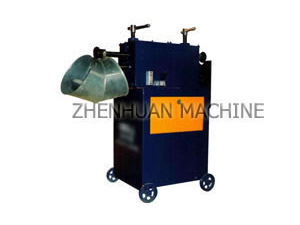

DCP-700 Gorelocker

Being vertical type, this Gorelocker is used for producing round elbows in ventilation & air conditioning system.

Main Technical Data of DCP-700 Gorelocker:

Item Specifications
Applicable material Galvanized steel, stainless steel
Max. raw material thickness 1.2mm
Elbow diameter 100-700mm
Rotating speed of driver 4.5rpm
Driving motor power 380VAC, 1.5kW
Dimension 1200×800×950mm
Weight About 250kg

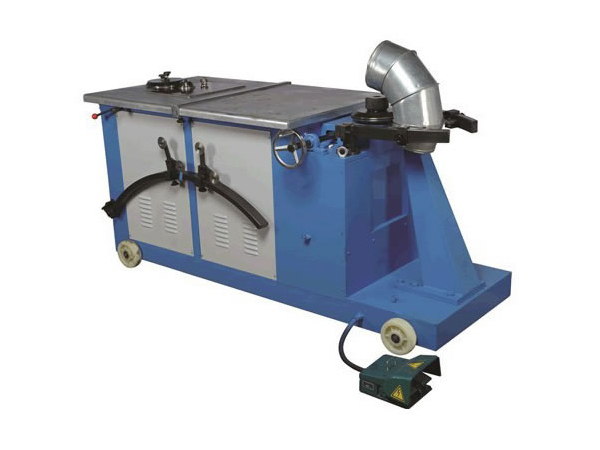

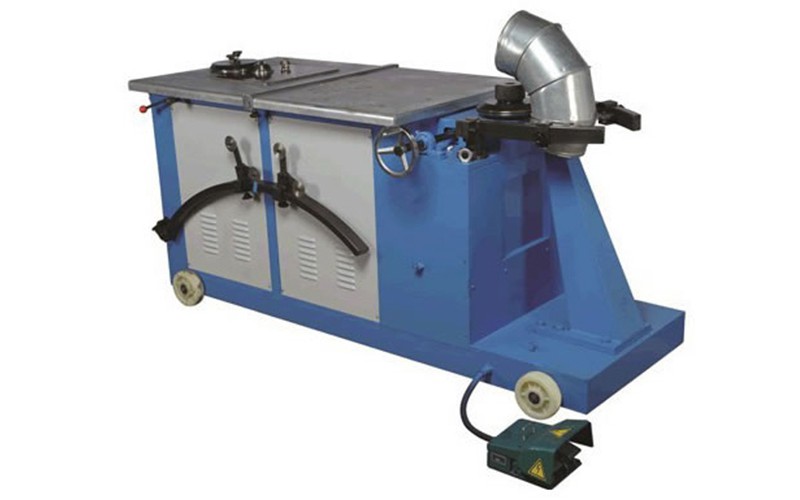

ZHEM-1000 Hydraulic Gorelocker

The ZHEM-1000 hydraulic gorelocker is specially offered for the production of round elbows for ventilation and air conditioning system. Unlike the product of DCP-1000 series, this product is driven by hydraulic system, enabling stable operation, outstanding forming and locking capacity, and less noise.

Technical Parameters of ZHEM-1000 Hydraulic Gorelocker

Item Specification
Applicable material Galvanized steel, stainless steel, aluminum, copper
Raw material thickness Stainless steel 0.4-1.0mm
Galvanized steel 0.4-1.25mm
Aluminum, copper 0.6-1.25mm
Elbow diameter 100-1000mm
Max. segment angle 30 degree, 4 pieces for 90 degree elbow
Rotating speed of driver 7rpm
Hydraulic pump motor power 380VAC, 3kW
Dimension 1400×800×900mm
Weight 750kg

Zhenhuan supplies high quality roll forming machine, spiral duct forming machine, plasma cutting machine and welding machine etc.
