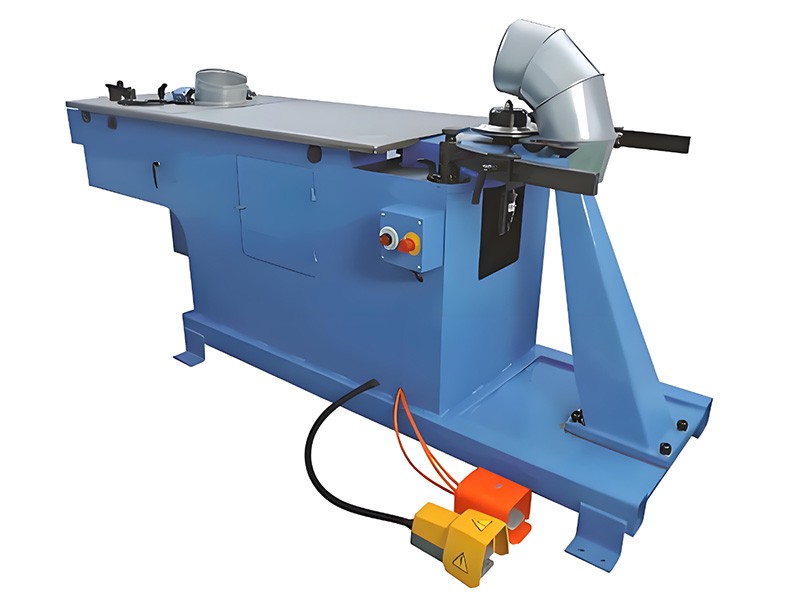

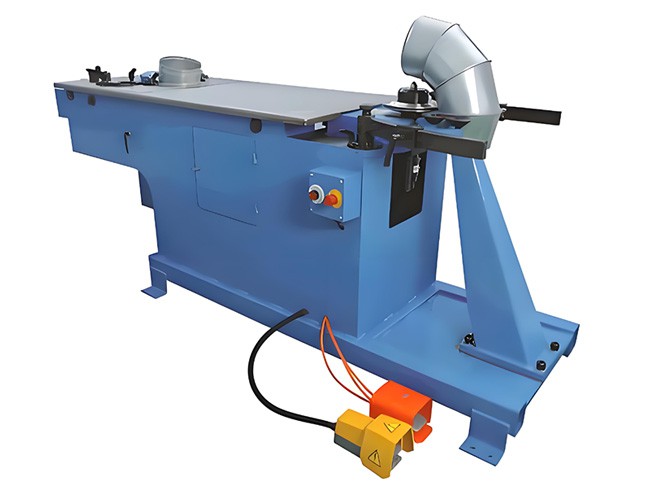

HGL-1250 Hydraulic Elbow Forming Machine

This hydraulic elbow forming machine uses a hydraulic forming process and is specially designed for producing elbows used in ventilation duct systems.

Request a Quote

Technical Data

Diameter range100-1250mm
Width of stripStandard 137mm
Sheet thickness (Stainless steel)0.4-1.0mm
Sheet thickness (Galvanized steel)0.4-1.2mm
Flanging wheel3 sets (5mm, 7mm, 10mm)
Applicable diameter range for different flanging wheels (5mm)diameter 100-250mm
Applicable diameter range for different flanging wheels (7mm)diameter 250-600mm
Applicable diameter range for different flanging wheels (10mm)diameter 600-1250mm
Working speed0-120m/min
Compressed air20L/min, 6 bars
Power5kW
Dimension (L x W x H)2520 x 860 x 1060mm
Weight700kg
