Condenser Header Pipe Grooving Machine

Inquiry Form

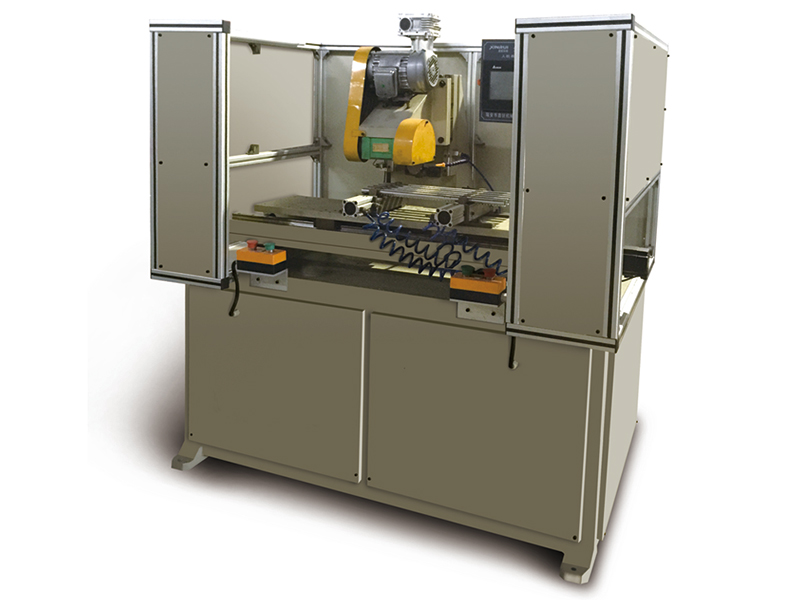

Description of Condenser Header Pipe Grooving Machine

This condenser header pipe grooving machine is specially designed for slotting grooves on header pipes.

This machine is servo motor feeding, PLC control, touch screen operation, full automatic (except for manual clamping and unloading). Groove numbers and distance between every groove can be preset.

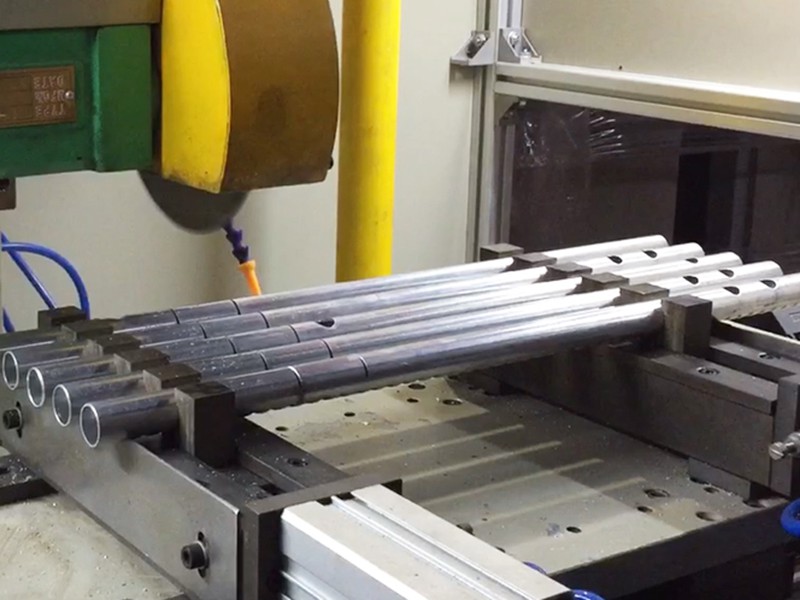

The machine can cut grooves on max. 5 pipes simultaneously.

Main Technical Data of Condenser Header Pipe Grooving Machine
Item Data
Suitable header pipe diameter customized
Suitable max. header pipe length 750mm
Max. groove numbers on one pipe Max. 10 pieces
Min. distance between pipe end and first groove 20mm
Groove position tolerance +/-0.5mm
Production speed 5s per groove
Max. Header pipe quantity to be grooved per cycle 5
Cutting saw blade speed 3500rpm
Air source 0.4~0.68MPa
Total motor power 1.5kW
