Radiator Water Tank Clinching Machine

Inquiry Form

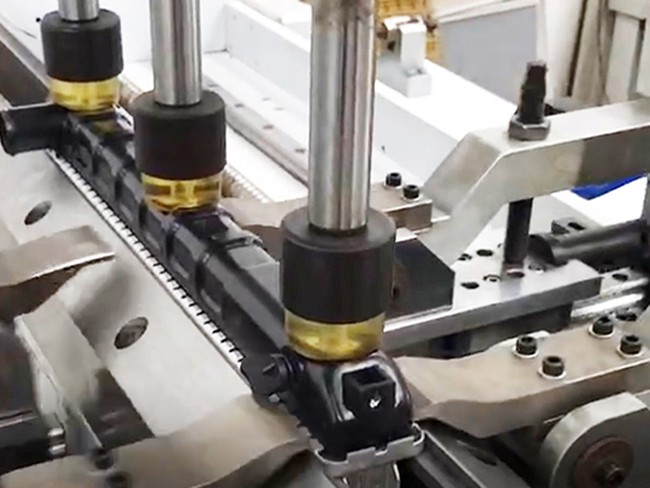

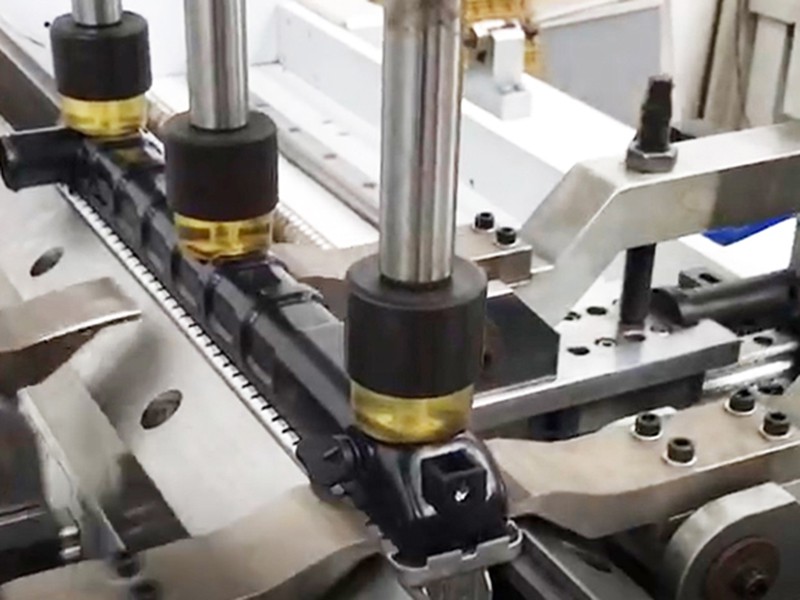

The radiator water tank clinching machine is for crimping plastic water tanks to brazed radiator cores.

There are mainly two options for radiator tank clinching:

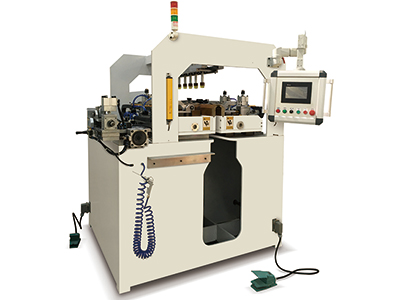

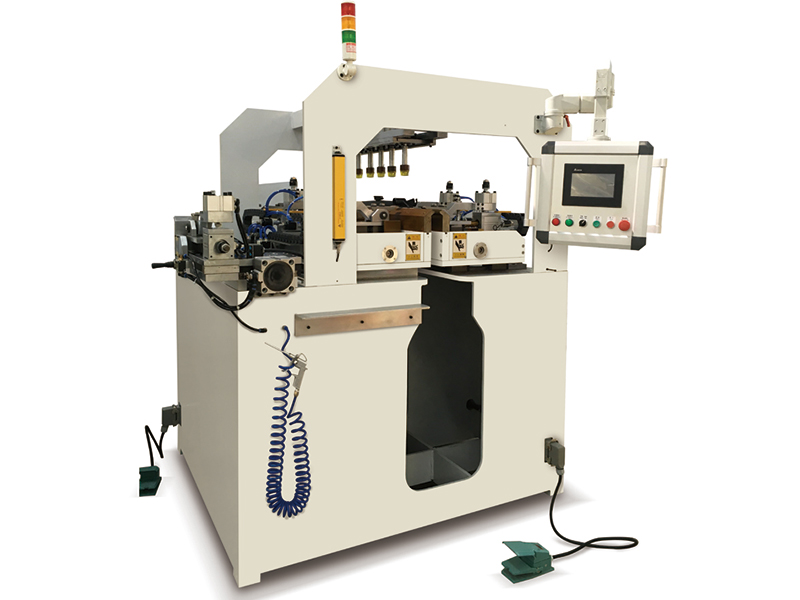

  • 1)Full automatic clinching machine: finish crimping long edges and short edges in one cycle without manual operation. Two stations are mounted together.

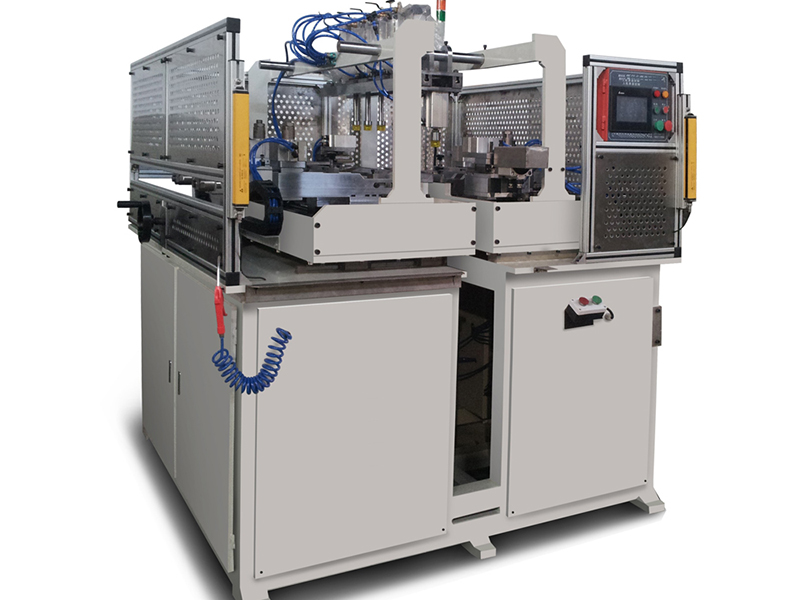

  • 2)Semi-automatic clinching machine: finish crimping long edges first, move workpiece to another station to crimp short edges. The two stations are separate on the machine.

Both machines processes high automation, capable for most type of water tanks in the market.

Main Features of Radiator Water Tank Clinching Machine
  • PLC control, HMI operation, servo driven, automatic clinching
  • Automatic leaving gap for tank mouth, idle stroke quick moving, suitable for various plastic tank clinching.
  • Technological parameters can be preset and displayed on HMI.
  • Quick and easy changing clinching tool for other size tanks
  • Many unit radiator tank parameters can be saved and recalled.
  • Both auto and manual control methods are available. The auto method is for working, and the manual method is for sampling & testing.
  • Safety measures: alarming lamp, actions interlock, safety grating ruler
  • HMI displaying working conditions
Main Technical Data of Radiator Water Tank Clinching Machine
Item Data
Suitable max. radiator core size 1000 x 850mm
Suitable max. header plate size 1000 x 100mm
Suitable max. thickness of radiator core 100mm
Clinching pitch Adjustable, default 10mm
Clinch speed 1-20 times per minute
Deformation of core and header plate after clinching Less than 0.5mm
