Radiator Leakage Tester

Inquiry Form
Description of Radiator Leakage Tester

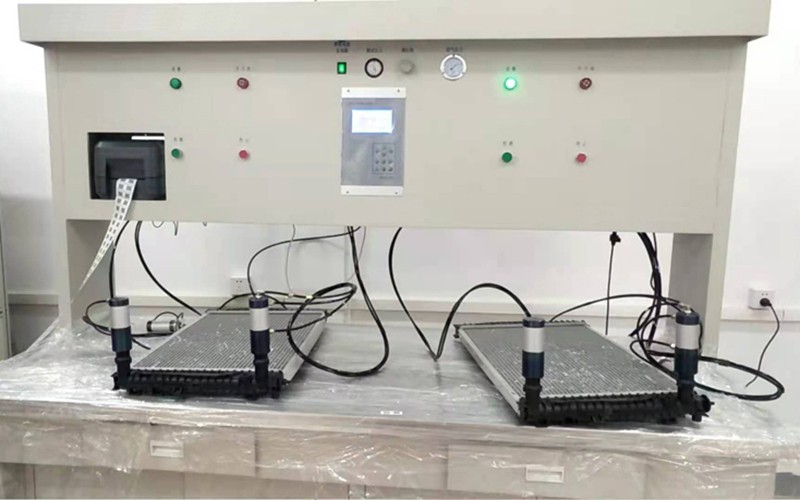

This radiator leakage tester is specially designed for testing air tightness of automotive radiator cores.

  • Testing pressure range is 50~400KPa.
  • Double-station testing can raise your efficiency well.
  • Interface of tester is very clear; operation is very convenient, one key operation, automatic stopping.
  • Very high testing precision, measurable leakage ≤1pa/s.
  • Very large memory, 100,000 units testing data can be saved and reviewed.
Main Features of Radiator Leakage Tester
  • Very short test time by adopting advanced data collecting & processing technology
  • Super high pressure resolution ratio, up to 1Pa
  • Perfect circuit and pneumatic self-diagnosing function
  • 4.3” large size LCD displayer, very clear and convenient
Main Technical Parameters of Radiator Leakage Tester
Item Data
Measuring range 0.2~20mL/min
Differential pressure Min. resolution 1Pa
Sensor withstand pressure 2MPa
Test pressure Min. displaying 1kPa
Displaying range 0~400kPa
Time setting Filling, balancing, leakage checking, draining separately
Power source AC 220V ±5%, 50Hz
Test source (dry clean air) 0.6MPa
Working ambient temperature 0~40ºC
Storage temperature 0~50ºC
RH Less than 80%, without dew
