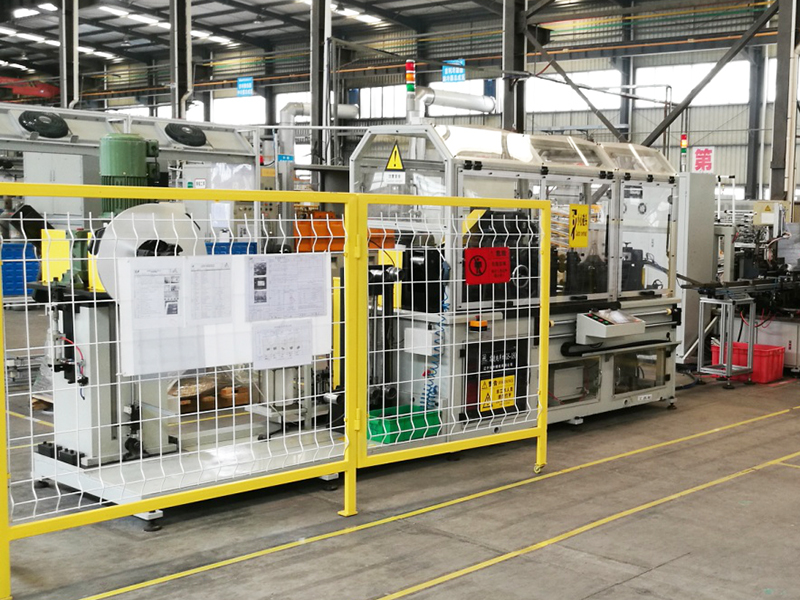

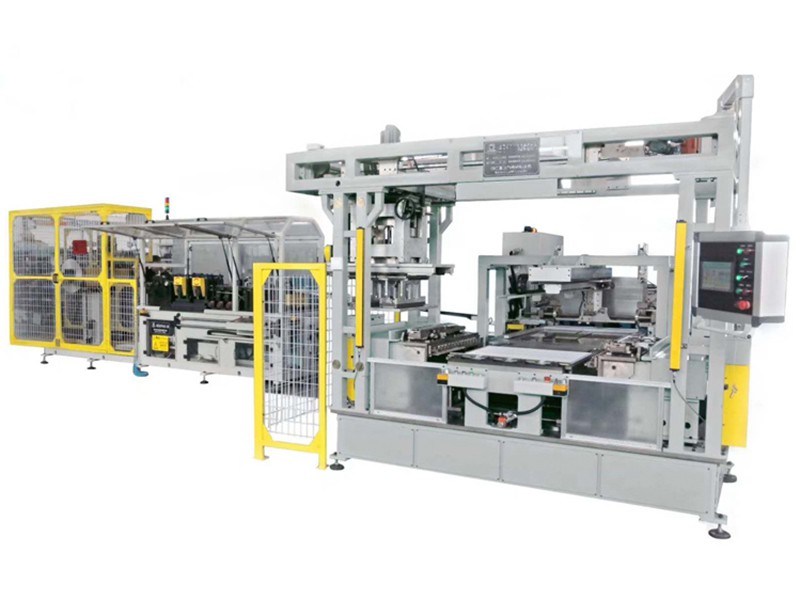

This matrix radiator core production line is specially designed for building aluminum radiator and condenser cores. It is comprised of high speed fin rolling machine, flat tube auto loading device, fin & tube auto collocating device, and auto radiator building machine.
Main Components of Matrix Radiator Core Builder

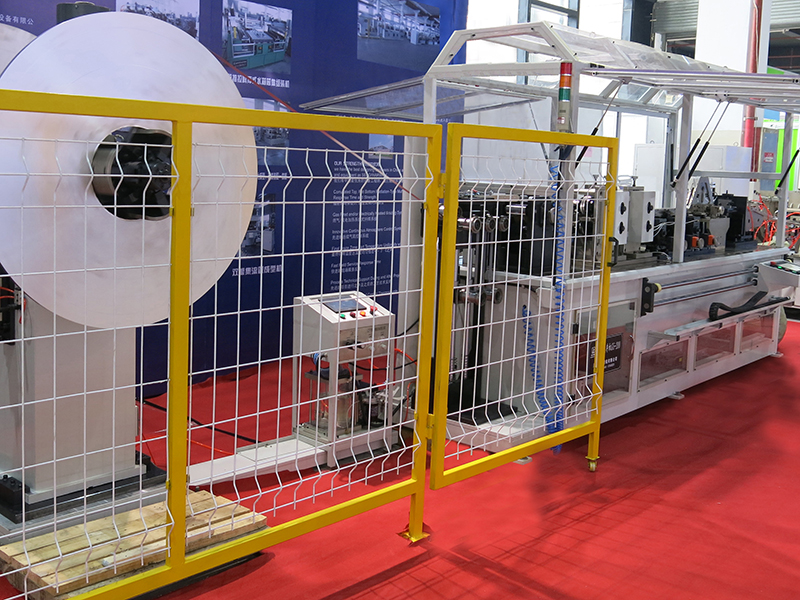

1) Fully automatic medium-speed fin rolling machine
2) Fractional-spray precious lubricating system (one upper and one lower spraying guns)
3) Automatic flat tube loading device
4) Full automatic fin & flat tube collocating device

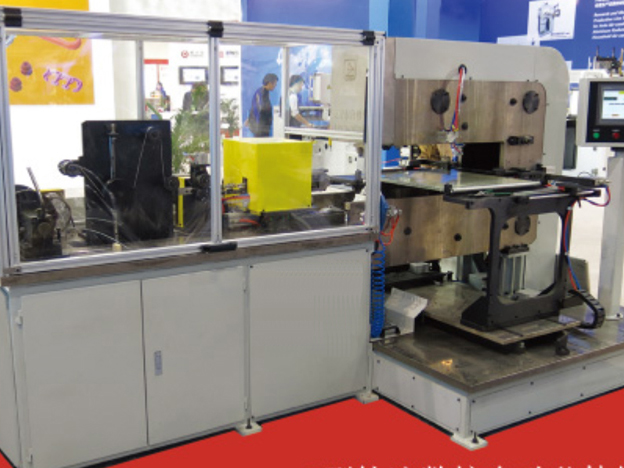

5) Automatic core building machine
6) Automatic core wire tying machine (optional)
Main Features of Matrix Radiator Core Builder
High automation machine combining fin & tube collocating and core building together

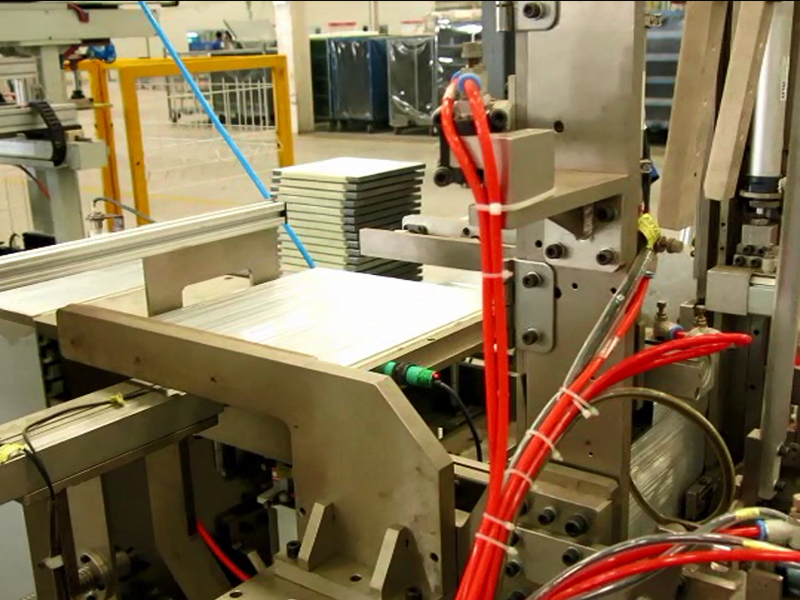

Manually put flat tubes to tray and auto load to flat tube hopper

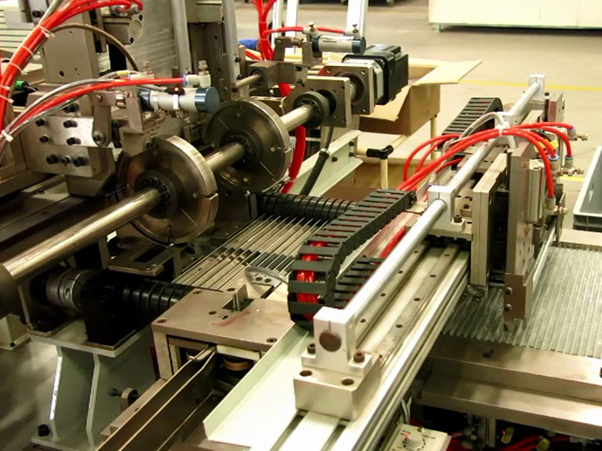

Linked with fin rolling machine, auto collocating fin and flat tube

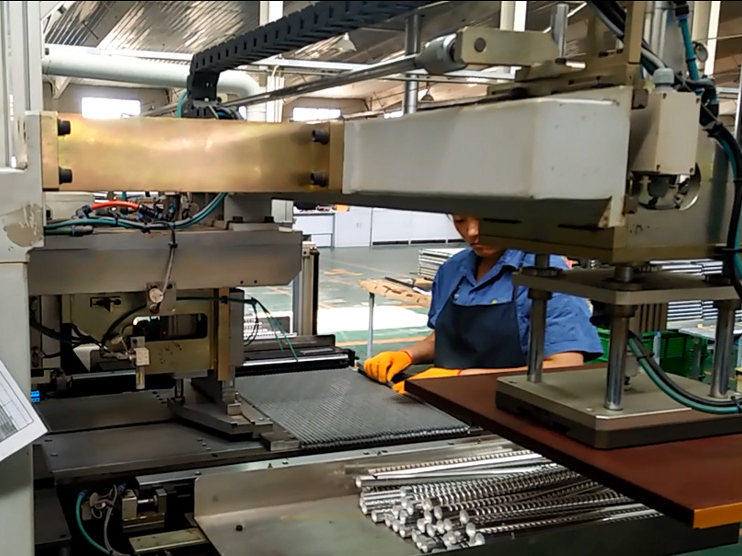

Auto pushing collocated fin and tube to core building station
Auto assembling side plates, ordering cores and assembling header pipes
Big variety for various radiator / condenser cores
Main Technical Data of Matrix Radiator Core Builder
