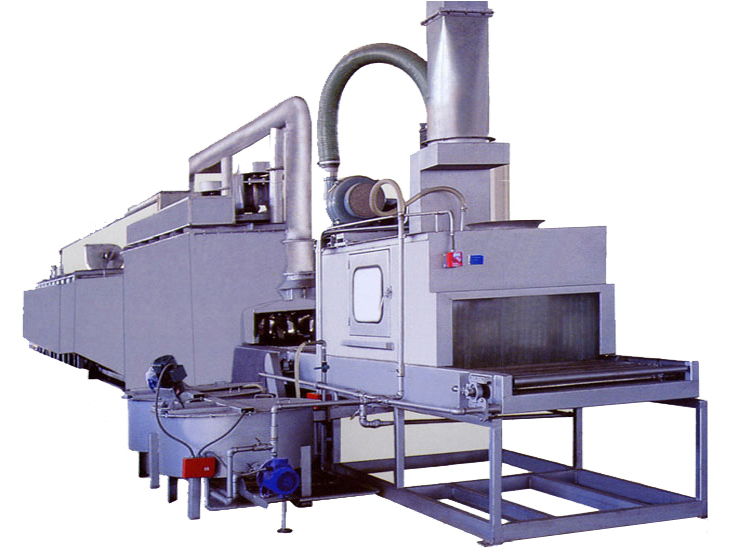

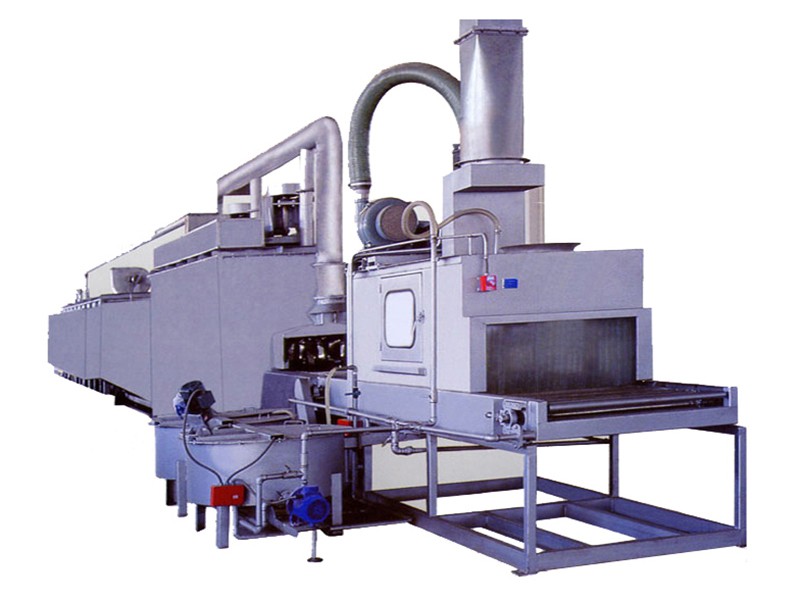

Continuous Nitrogen Shielded Brazing Furnace
This continuous nitrogen shielded brazing furnace is designed for brazing aluminum heat exchanger cores by using non-corrosive flux (Nocolok Flux) under Nitrogen gas shield protection.
Our design is advanced, state-of-the-act, mature, wear well, and environmentally-friendly.
Production flow: loading workpiece → flux spraying → drying → going through front curtain room (with nitrogen) → brazing (with nitrogen) → slag removing (nitrogen pre-heating) → going through static cooling room → going through rear curtain room (with nitrogen) → going through compulsive air cooling room → manual taking off cores from the belt.
The complete system mainly includes four sections: round-design flux spraying room, drying oven, brazing furnace, and control system.
- Degreasing section or separate washing machine
- Continuous flux spraying section (including flux mixing & feeding)
- Drying oven and its driving unit
- Front-curtain room of brazing section
- Brazing section & its driving unit
- Slag-removal room
- Static cooling room
- Rear-curtain room of brazing section
- Compulsive cooling room
- Electric control system
- Water & nitrogen supplying device
| Model | Rated power | Rated temp. | Suitable workpiece dimension(mm) | Length of brazing section | Whole line length |
| 242kW | 750ºC | 450 x 150 | 6m | 28.5m | |
| 242kW | 750ºC | 450 x 200 | 6m | 28.5m | |
| 303kW | 750ºC | 600 x 200 | 8m | 29m | |
| 303kW | 750ºC | 600 x 300 | 8m | 29m | |
| 515kW | 750ºC | 800 x 200 | 11m | 37.7m | |
| 515kW | 750ºC | 800 x 300 | 11m | 37.7m | |
| 615kW | 750ºC | 1000 x 200 | 11m | 37.7m | |
| 615kW | 750ºC | 1000 x 300 | 11m | 37.7m | |
| 655kW | 750ºC | 1100 x 200 | 11m | 37.7m | |
| 685kW | 750ºC | 1100 x 350 | 11m | 37.7m | |
| 715kW | 750ºC | 1200 x 200 | 11m | 37.7m | |
| 735kW | 750ºC | 1200 x 350 | 11m | 37.7m |
