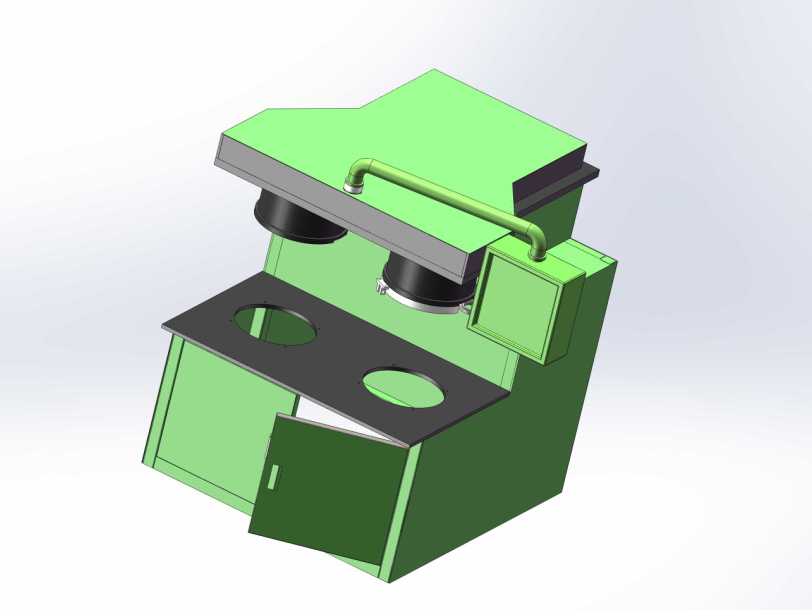

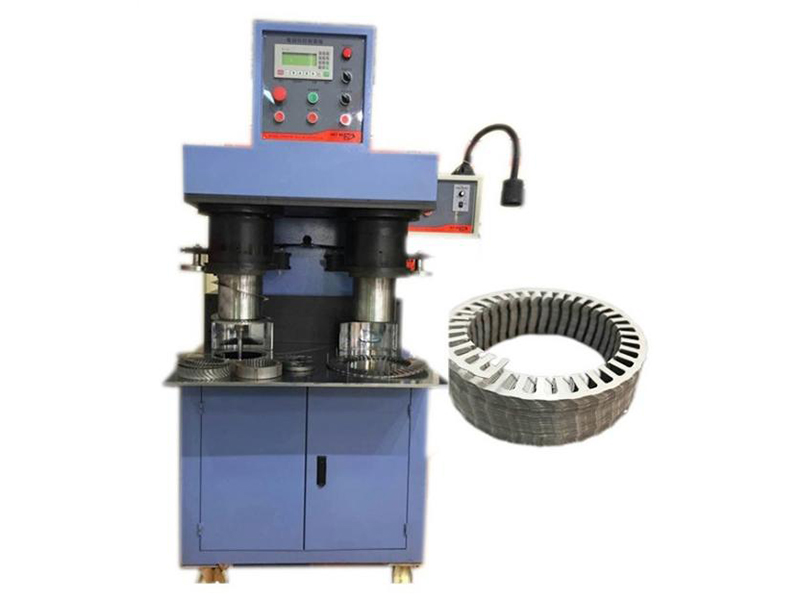

Automotive Alternator Stator Slinky Winding Machine

Inquiry Form

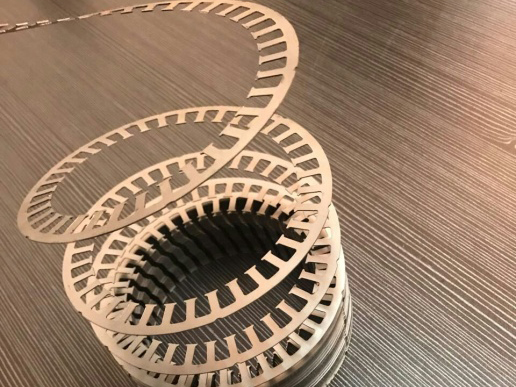

Automotive alternator stator slinky winding machine is specially designed for spiral winding notched electric silicon steel strip into stator cores for automotive alternators and electric wheel hub motors, etc.

Main features
  • Servo motor driving, stable and reliable, 24 hours working
  • PLC control, digital input, simple and convenient
  • Equipped with mechanical and electric safety protection measures
  • Twin winding stations, working simultaneously, high efficiency
Main technical data
Item Data
Applicable stator core diameter Based on winding mould (customized)
Winding speed 0-200rpm
Productivity 2-3pcs/min
Servo motor power 1.5kW
Compressed air 0.6-0.8MPa
Machine dimension About 920 x 860 x 1580mm
Machine weight About 480kg
