Motor Test Bench System

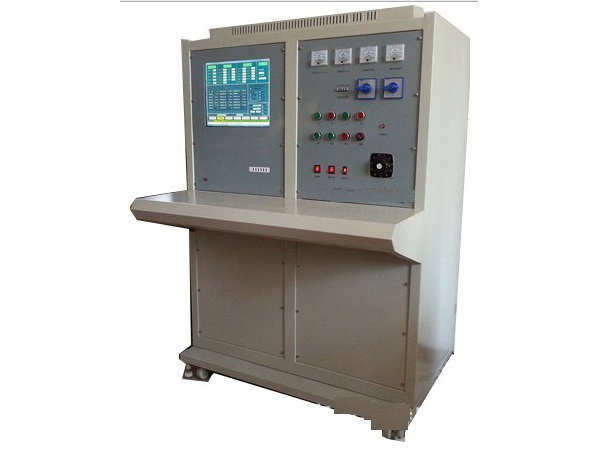

This is an integrated test bench for fully automatic testing of AC asynchronous motors, with a fast testing speed and comprehensive testing capabilities.
All of the testing can be completed in a single cycle.
Suitable motors: Single three-phase fractional horsepower motor, micro-motor, small and medium-sized motor, household appliance motor, power tool, explosion-proof motor and pump motor and so on.

Technical Data

Model: ZH95
Voltage: AV0--700V
Resistance: 0.01--1KΩ
Current: 0--630A, Optional (25A,50A,100A,200A,400A,630A)
Frequency: 45—65Hz

Request a Quote

Configuration

Special single-chip microcomputer control system, industrial computer system, system software platform is WIN7
Display: 17 inch LCD display
Resistance test unit
Power frequency withstand voltage unit
Power test unit
Strong electrical and electrical control system
Ground safety protection system
Strong motor cabinet (W600 x D650 x H1500) horizontal cabinet (W1150 x D650 x H1500)
Solid state disk (fast access speed, good shock resistance, high reliability)

Test item and accuracy

Cold state DC resistance test: 0.01─1KΩ; Accuracy is 0.2%; Distinguish three-phase resistance is balanced automatically.
Power frequency withstand voltage test: 0─2500VAC; Leakage current 0-30MA, accuracy 2%
Locked-rotor test: voltage 0-500Vac; current 0-630A; accuracy 0.5
No-load test: voltage 0-500Vac; current 0-630A; accuracy 0.5
Induction withstand voltage test
Distinguish three-phase resistance is balanced automatically; no-load current is balanced or not
The power, power factor and power frequency for locked-rotor and no-load testing.
The upper and lower limits of the motor parameters can be set, automatically determine whether the motor is qualified.
This tester has report forms printing function and storage test reports and standard parameter.
