Automatic Stator Rotor Lamination Stacking Machine

Inquiry Form

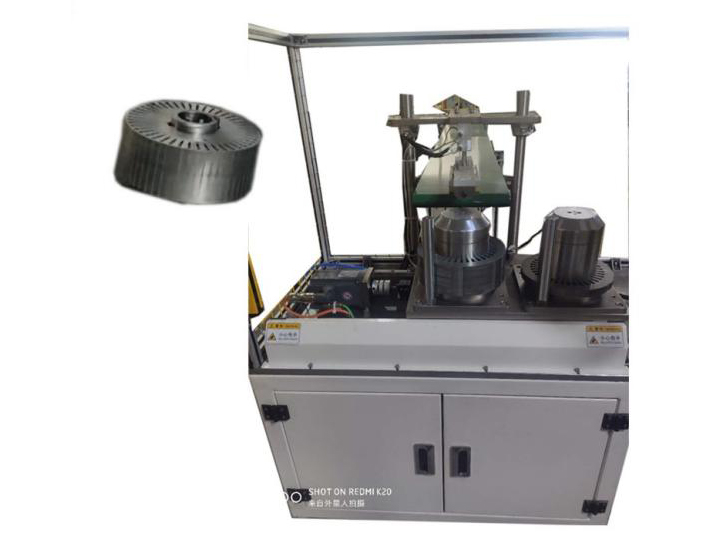

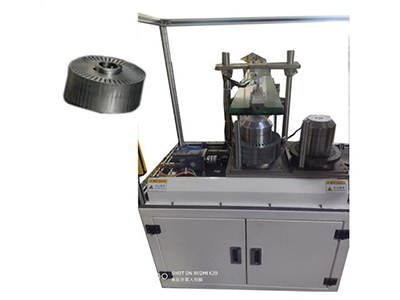

Automatic stator rotor lamination stacking machine is installed after lamination punching press. This kind of stacking machine can collect and stack each lamination from punching press, keep them ordered on ID, OD and slots.

There are two models, one is for diameter range 80~300mm, and another is for diameter range 300~600mm.

Main technical data
Item Data
Stacking height 10mm-200mm
Stacking speed 100~250 laminations per minute
Working stations 4
Machine dimension 1500 x 1200 x 1700mm
Machine weight 500kg
