Laminations Core Welding Machine

Inquiry Form

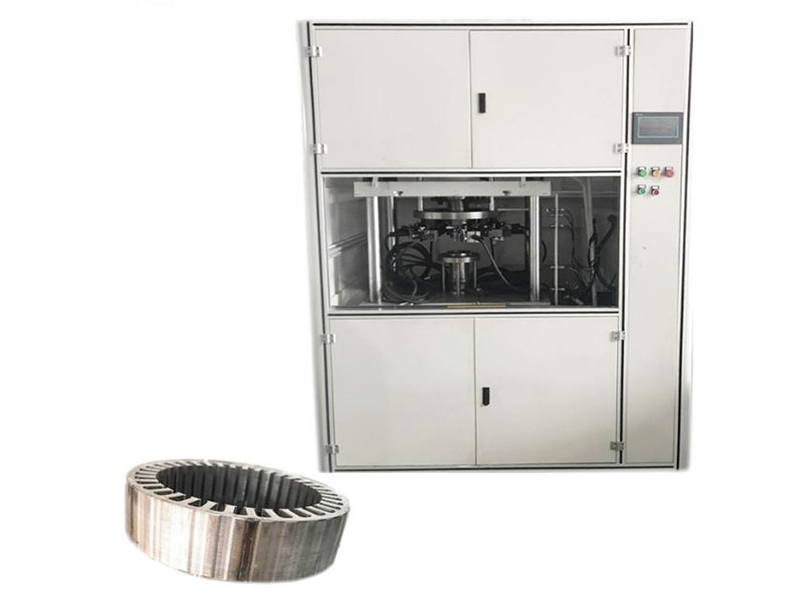

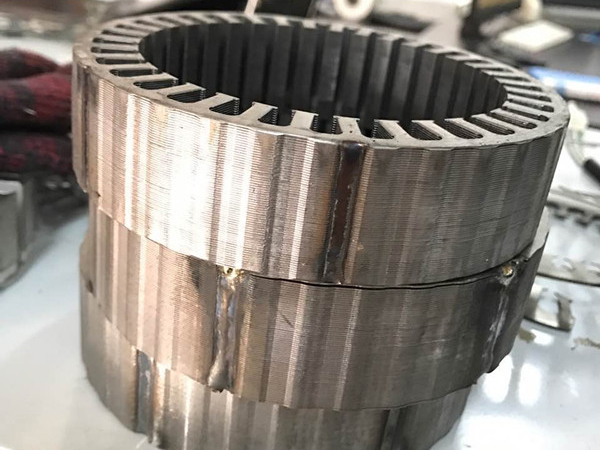

This laminations core welding machine is suitable for welding stacked stator lamination cores.
There are six welding torches that can freely adjustable, capable for both straight seam and inclined seam welding.
Both welding length and inclination are controlled by servo motors, simple and convenient.
Only core loading and unloading are manual, other operations are automatic.

Main technical data
Item Data
Main cylinder force 250kN
Welding torch stroke 300mm
Mold-closing cylinder stroke 450mm
Effective worktable dimension 500 x 700mm
Applicable max. stator core height 200mm (customized)
Clamping tool changing speed 20 min
Hydraulic station motor power 5.5kW
