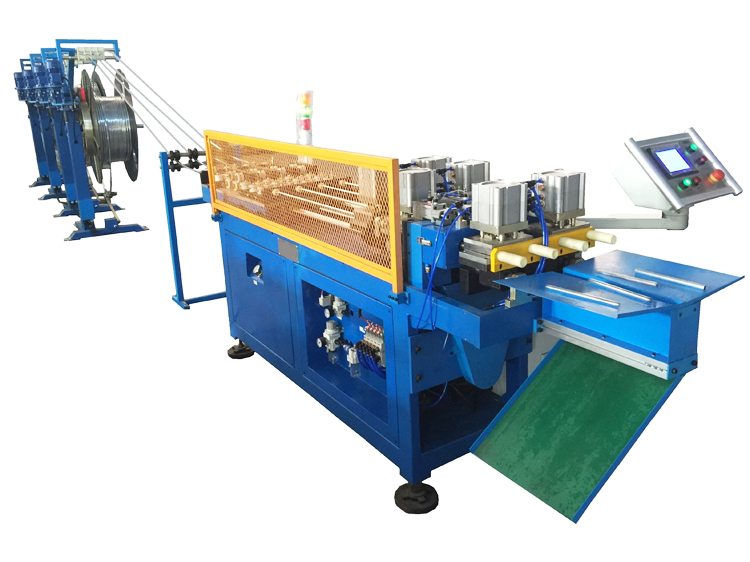

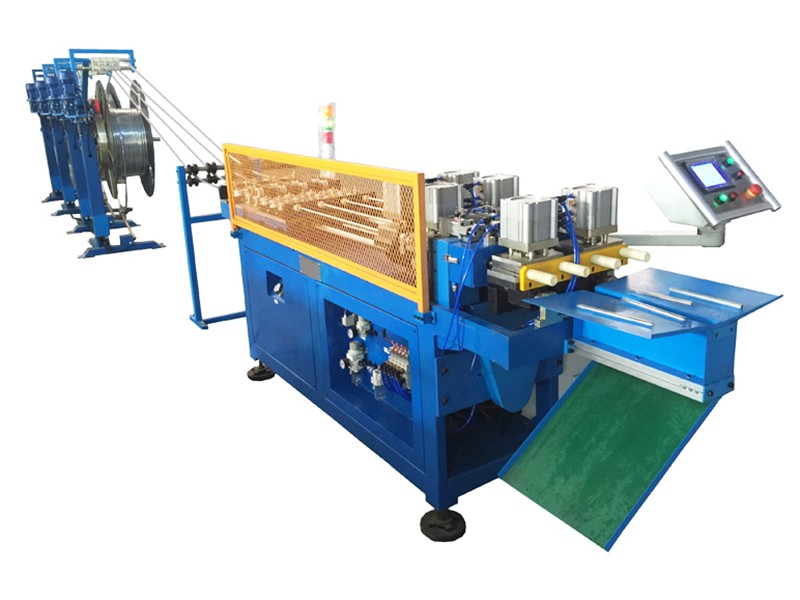

Copper Tube Straightening & Cutting Machine

Inquiry Form

This copper tube straightening & cutting machine is for straightening coil copper tubes, detecting length and burrless cutting automatically.

This machine adopts pull-apart cutting technology which is the most advanced cut-off method in the world, which eliminates or minimizes tube ID reduction that could occur and brings burr-less cutting results as well.

Main Features of Copper Tube Straightening & Cutting Machine
  • Servo feeding, stable and high repositioning precision
  • One time cutting four pieces, highly efficient
  • Adopting pull-apart technology, less tube end ID reduction ratio
  • Orbited cutter with spray lubricant, burrless cutting
  • PLC control, high automation-auto feed, auto cut, auto unload, auto alarm

Main Technical Data of Tube Cutting Machine

Item Data Remarks
Material Coil copper tube
Diameter Ф6.35~Ф19.05mm
Wall thickness 0.3~1.0mm
Copper coil size Outer diameter: 1000~1250mm Inner diameter: 130mm
Copper coil weight Max. 280kg
Cutting pieces 4 Dual-drive, one time
Cutting length Min. 40 mm, no max. limit When less than 100mm, no pre-stretching
One-time feeding stroke 1000 mm
Working efficiency 8 times per minute(L=1000)
Straightness tolerance ≤2‰
Repositioning precision L≤1000 mm≤0.3mm L≥1000 mm ≤0.6mm d0-original wall thickness d1-finished wall thickness f= (d1 - d0)/ d0 %
Mouth inner diameter shrinking rate f < 20%
Length difference among four pieces ≤0.5mm (L=1000)
Surface condition after cut No apparent scratch, draw marks, etc. No burrs on mouth
Roundness of cut tubes Non-roundness ≤3％
Power 380V 50Hz 3Kw With air switch
Air source 0.5--0.7MPa

For copper tube straightener and burrless cutter, there is also single driving station for two tubes or for four tubes.
