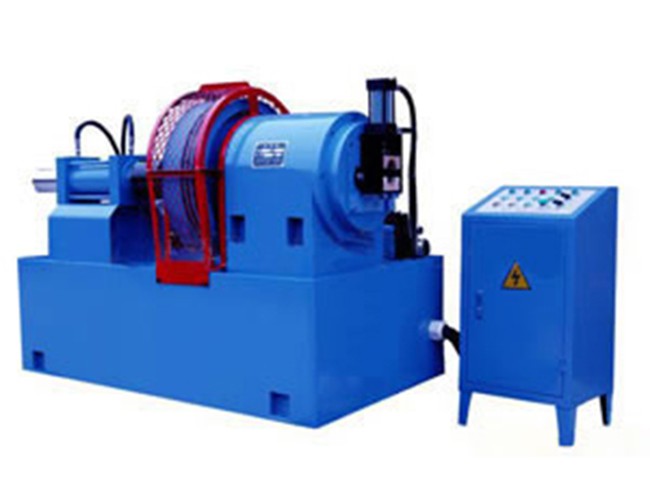

Tube Swaging Machine
Tube swaging machine is mainly used to produce decorative metal tubes. Zhenhuan is able to provide a variety of swaging machines, such as twisting machine, tapering machine, rotary type swaging machine, tube spinning machine, tube bending machine, and so on.

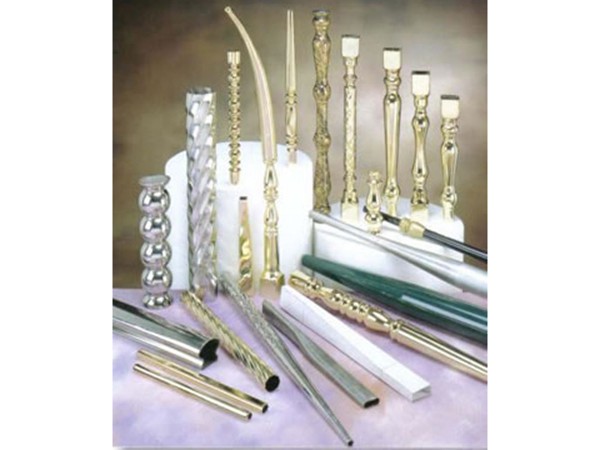

Typical Products
Technical Date of Tube Swaging Machine
Type | HGJ-25 | HGJ-51 | HGJ-76 | HGJ-114 |
Tube diameter, mm | 12-25 | 16-51 | 25-76 | 38-114 |
Wall thickness, mm | 0.25-1.2 | 0.3-1.2 | 0.7-1.5 | 0.7-1.5 |
Tube length, mm | 290 | 290 | 360 | 600 |
Forming speed, s/pc | 3-12 | 3-12 | 8-30 | 10-40 |
Motor power, kw | 3 | 4 | 7.5 | 11 |
Machine weight, kg | 1100 | 2000 | 3000 | 5000 |

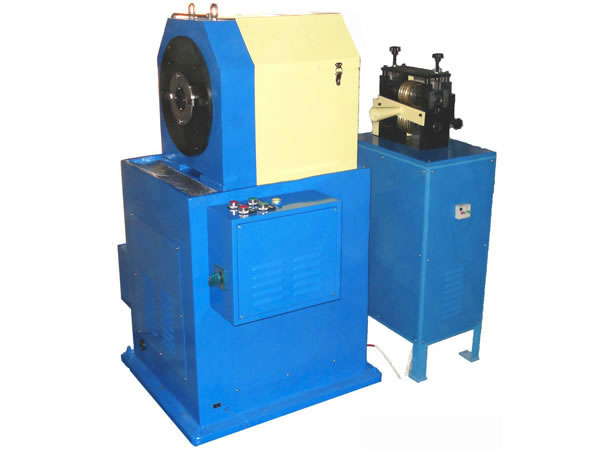

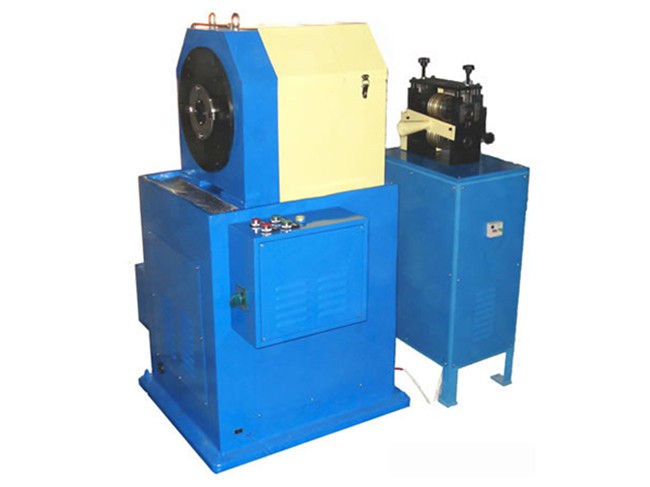

Rotary Swaging Machine
Description

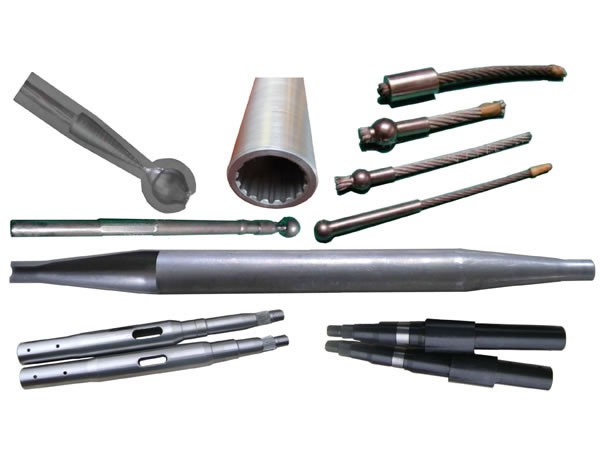

The rotary swaging machine is a kind of high-efficiency and high quality equipment specially offered for forging special shapes on bars and pipes. It is generally used for the production of steel ropes, automotive parts, tapered products, etc.
In addition to the standard product, we can provide CNC rotary swaging machine that is capable of changing the swaging shape and size automatically. This machine is widely employed for the production of glasses parts, fishing tools, sports products, special spring, etc.
Technical Parameters of Rotary Swaging Machine
Item | X50 | X30 | X20 | X12 | X05 |
Applicable material | Any ferrous and non-ferrous metal bars, pipes and wires | ||||
Max. bar diameter | 40mm | 26mm | 16mm | 12mm | 5mm |
Min. bar diameter | 8mm | 5mm | 4mm | 3mm | 0.5mm |
Max. pipe diameter | 55mm | 35mm | 20mm | 16mm | 7mm |
Min. pipe diameter | 8mm | 5mm | 4mm | 3mm | 0.5mm |
Working accuracy | ±0.025mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.01mm |
Surface smoothness | 3.2 | 1.6 | 1.6 | 1.6 | 0.8 |
Mould quantity | 4 | 4 | 4 | 4 | 3 |
Mould size | 127×80mm | 100×60mm | 100×60mm | 80×35mm | 50×20mm |
Quantity of balls for pressing | 12 | 12 | 12 | 12 | 12 |
Motor power for lubrication | 0.75kW | 0.75kW | 0.75kW | 0.75kW | 85W |
Lubricant flow | 20L/min | 12L/min | 12L/min | 12L/min | 4L/min |
Spindle speed | 215rpm | 300rpm | 350rpm | 450rpm | 650rpm |
Spindle driving motor power | 30kW | 15kW | 11kW | 7.5kW | 1.5kW |
