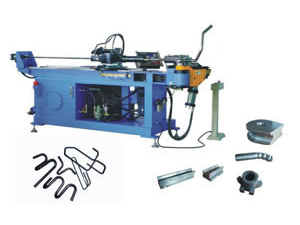

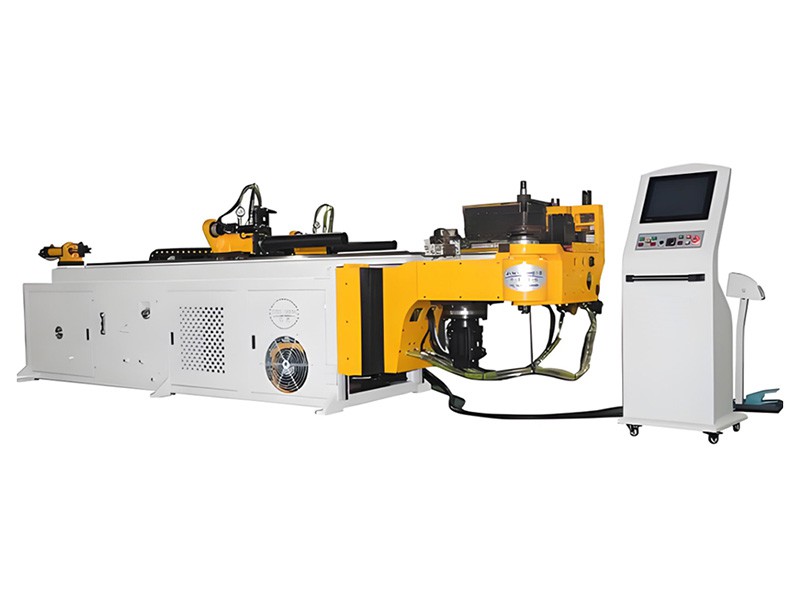

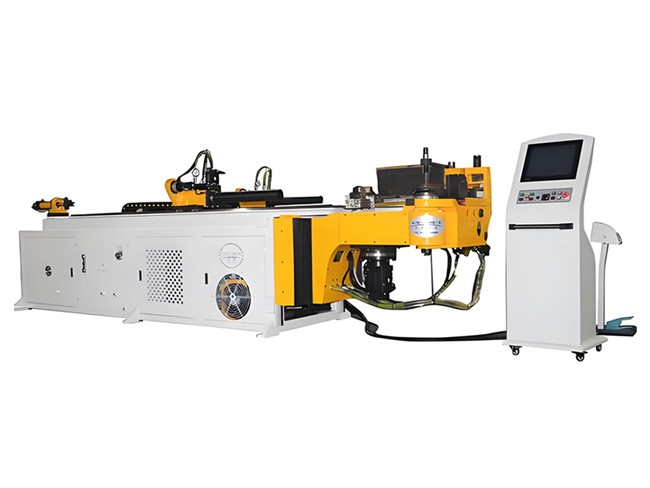

CNC Tube Bending Machine

Inquiry Form

We at Zhenhuan are a Chinese CNC tube bending machine supplier. Our products have the following features
1. Three-axis numerical control, hydraulic clamping
2. Gear and rack driving, each axis is equipped with high precision planetary reducer
3. Tracking die is restored pneumatically
4. CNC control, 12.1” touch screen operation, simple and easy

Technical Parameters of CNC Tube Bending Machines

Item JXWGJ-22 JXWGJ-40
Max. bending angle 190º 190º
Max. bending radius 100mm 150mm
Max. tube length 2000mm 3000mm
Max. tube wall thickness 1.6mm 2mm
Max. tube diameter Ф22mm Ф40mm
Productivity (second/curve) 2s 4-5s
Axle speed Feeding axle 800mm/s 600mm/s
Rotating axle 180º/s 90º/s
Bending axle 180º/s 180º/s
Axle accuracy Feeding axle ±0.2mm ±0.5mm
Rotating axle ±0.2º ±0.2º
Bending axle ±0.5º ±0.5º
Axle power Feeding axle 0.75kW 1.5kW
Rotating axle 0.4kW 0.75kW
Bending axle 1.5kW 3.0kW
Air source 0.4-0.7MPa -
Hydraulic pressure -(or 3.0-5.0MPa*) 5.0-8.0MPa
Power source AC380V, 50Hz (or customized)
Dimension(L×W×H) 2000×700×1500mm 3200×800×1500mm
Weight 800kg 1800kg

Note: The product of JXWGJ-22 series can be driven by pneumatic or hydraulic system, and JXWGJ-40 is driven hydraulic system, only.

Give us your maximum tube diameter, wall thickness, shape, etc., and we provide you with the exact tube bending machine!
