Concrete Steel Fiber Making Machine

Description of Concrete Steel Fiber Making Machine
We have two kinds of steel fiber making machine for producing concrete steel fibers, which are shearing type fiber making machine and drawn steel wire fiber making machine. They are different by the raw material they used.

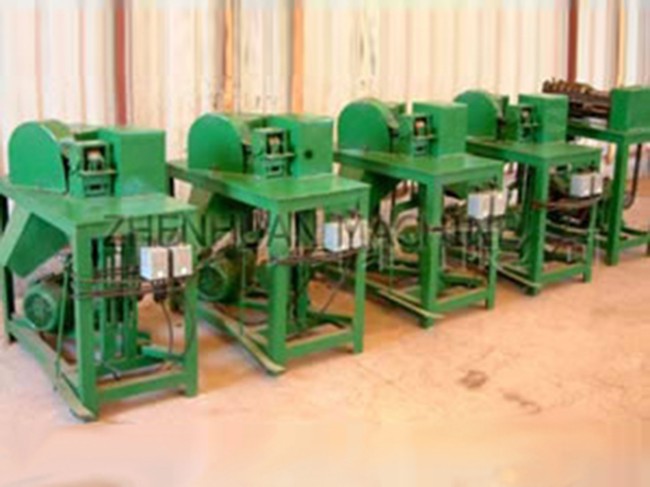

Shearing Type Concrete Steel Fiber Making Machine

Introduction of Shearing Type Concrete Steel Fiber Making Machine:
By changing different moulds, this machine can form and cut straight type, twist type, wave type, hook type, sawtooth type, dint type, etc. Its raw materials are usually steel coils or waste steel plates. These fibers usually have more than 800MPa tensile strength.

Technical Data of Shearing Type Concrete Steel Fiber Making Machine:

Model Productivity (kg per shift) Motor power (kW) Max. fiber length (mm) Fiber thickness(mm) Machine weight (kg)
SFS-1500 1500 4.75 100 1.5 1200
SFS-700 700 3.75 50 1.2 700
SFS-400 400 2.75 30 0.8 450
SFS-300 300 2.0 30 0.5 450

Note: There need a strip slitting machine to slit steel coil or waste steel plates into a certain wide strips for cutting & forming in above machines.

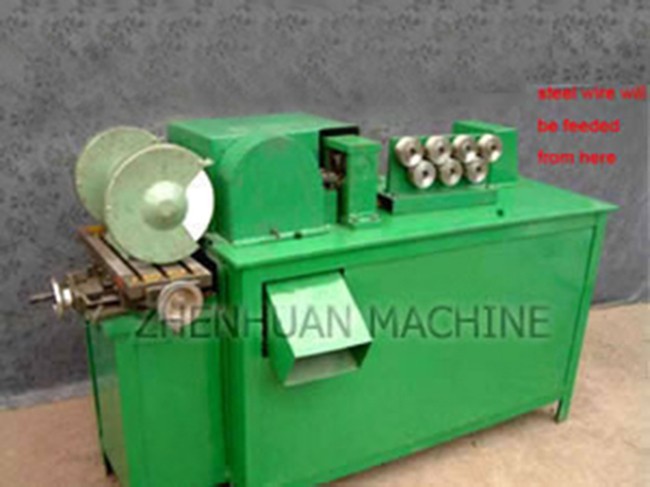

Drawn Steel Wire Type Steel Fiber Making Machine

Introduction of Drawn Steel Wire Fiber Making Machine
Releasing prestress inside drawn wire and straighten wire, this machine can conduct feeding, forming and cut-to-length. It is also equipped with the grinding device for cutting tools. By changing moulds, different kinds of steel fibers can be made: straight type, hook type, wave type, dint type, etc.

Code Productivity (kg / 8 hrs) Motor power (KW) Max. length (mm) Wire diameter (mm) Machine weight (kg)
JW-15 1200 3 80 1.5 800
JW-10 600 2.2 60 1.0 600
JW-5 250 1.5 40 0.5 350
JW-3.5 150 1.1 20 0.35 350

Zhenhuan supplies high quality roll forming machine, spiral duct forming machine, plasma cutting machine, welding machine and other forming machines.
