Rivet Making Machine

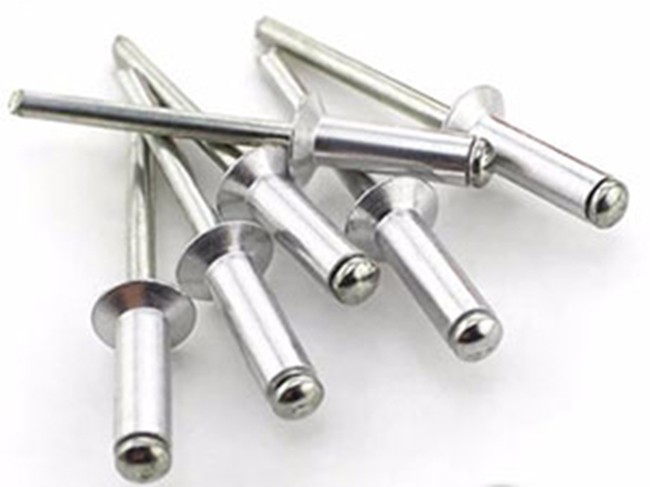

Stainless Steel Pop Rivet Making Machine
Description
To produce stainless steel pop rivets, the following machines are needed:
- Cold heading machine
- Blind rivet nail making machine
- Open blind rivet assembly machine
- Washing and polishing machine

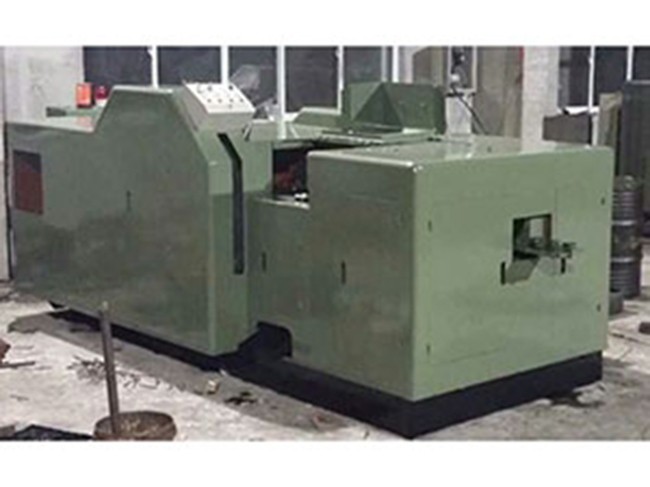

4 Die and 4 Blow Cold Heading Machine
This machine is used to produce short section tube nipples or rollers.
Technical Data
Item | Data |
Station number(die number) | 4 |
Suitable max. diameter of products | 5mm |
Suitable max. length of products | 40mm |
Punch size | Φ30 x 110mm |
Main die size | Φ45 x 80mm |
Production speed | 30-70pcs/min |
Machine weight | 2500kg |
Machine size | 2500 x 1800 x 1500mm |

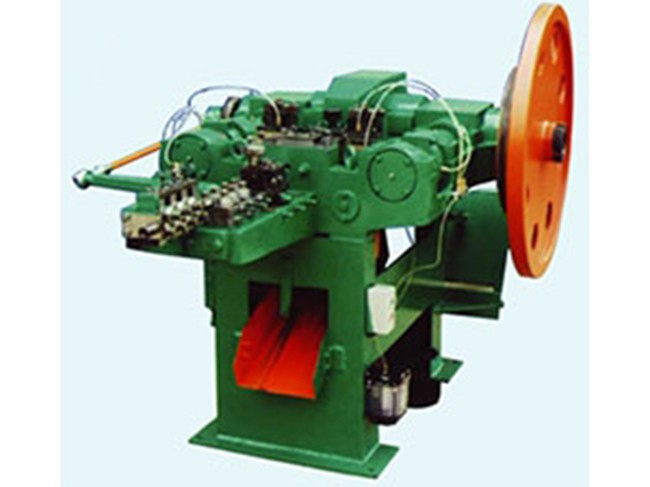

Blind Rivet Nail Making Machine
The blind rivet nail making machine is designed to produce built-in nails for blind rivets.
Technical Data
Item | Data |
Suitable nail diameter | 2-4 mm |
Max. nail length | 55mm |
Producing speed | About 200pcs/min |
Slide stroke | 85mm |
Total power | 1.5 kW |
Machine dimension | 1350 x 1200 x 1200mm |
Machine weight | 1000kg |

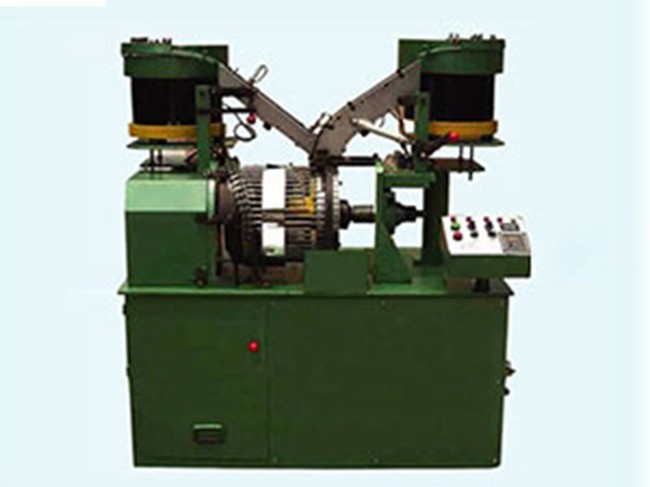

Open Blind Rivet Assembling Machine
This machine is designed to assemble hollow rivets with nails via two vibrating feeders.
Technical Data
Item | Data |
Suitable rivet diameter | 2-6 mm |
Producing speed | About 300-500pcs/min |
Total power | 0.8 kW |
Machine dimension | 1000 x 800 x 1200mm |
Machine weight | 600kg |
