Expanded Metal Machine

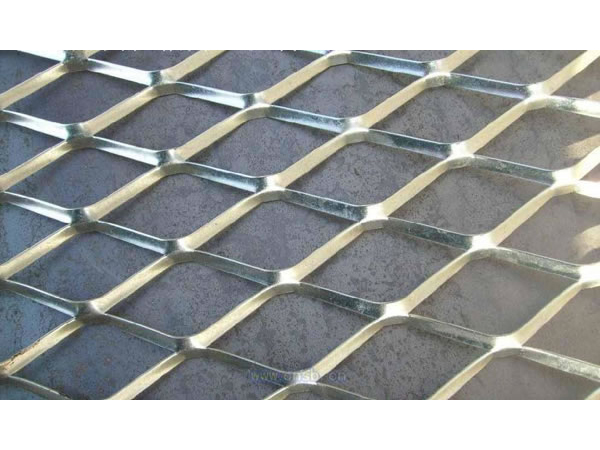

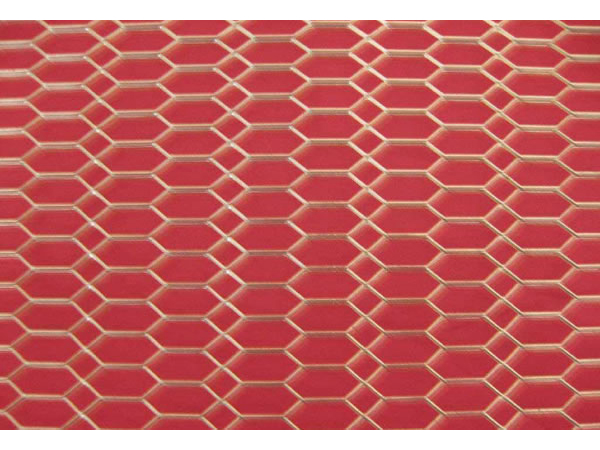

The expanded metal machine, as the name implies, is generally used for punching and expanding the metal sheet into diamond meshes with different sizes. It is also known as expanded metal mesh machine. The expanded metal making machine can be customized, if the customer offers the following information.

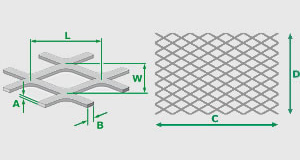

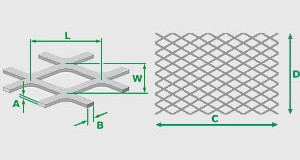

A=Material thickness
B=Strand width
C=Mesh Width
D=No limit
L & M are needed for designing punching moulds for expanded metal mesh production line.

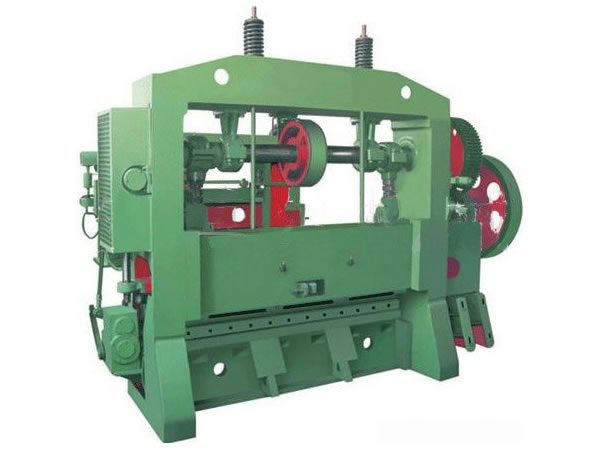

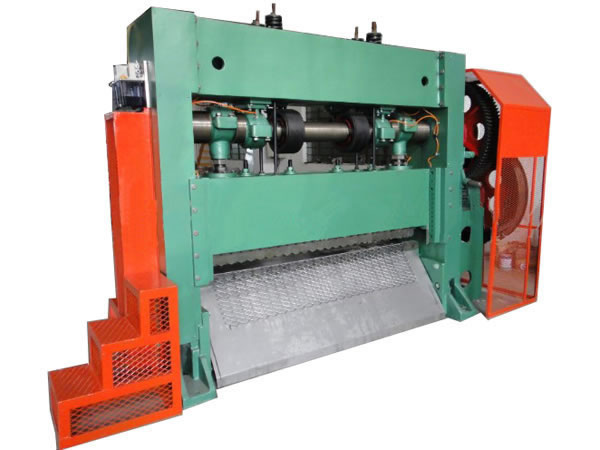

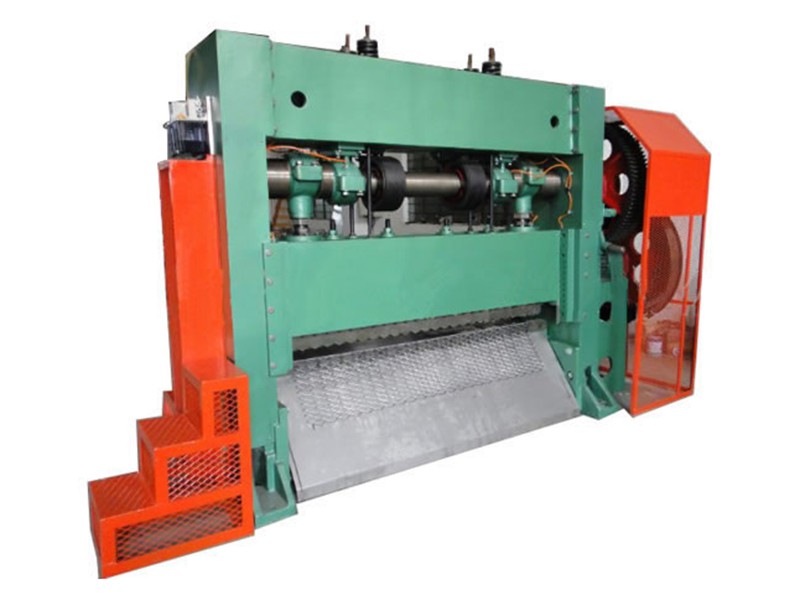

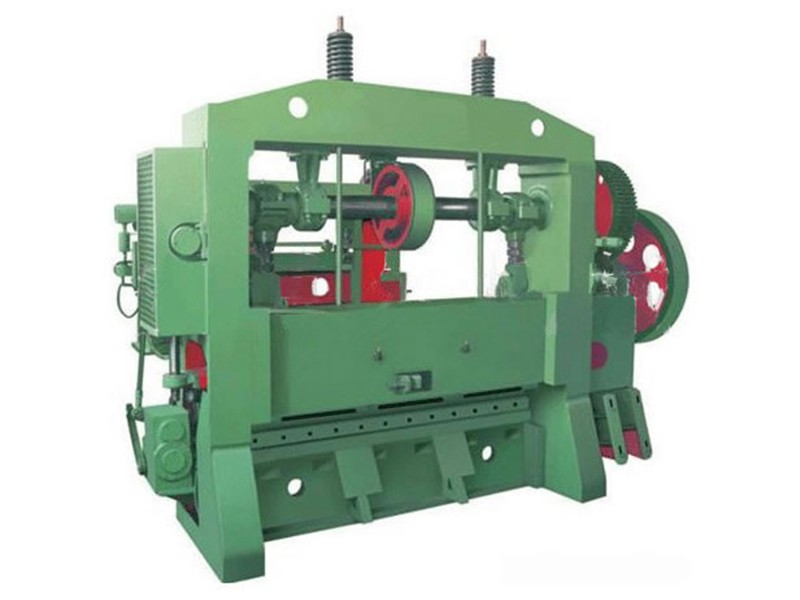

Heavy-duty Expanded Metal Machine
Technical Parameters of Heavy-Duty Expanded Metal Mesh Machine
Item | HE-6-2500 | HE-8-2000 | HE-6-2000 | HE-4-2000 | HE-2.5-2000 |
Applicable material | HRC, CRC, stainless steel, copper, aluminum, lead, titanium | ||||
Suitable mesh width | 2500mm | 2000mm | |||
Max. metal thickness (carbon steel) | 6mm | 8mm | 6mm | 4mm | 2.5mm |
Punching force | 100T | 220T | 100T | 63T | 63T |
Feeding stroke | 0-8 | 0-8mm | 0-6mm | 0-4mm | 0-6mm |
Drive motor power | 22kW | 50kW | 15kW | 15kW | 11kW |
Punching times | 40/min | 45/min | 45/min | 60/min | 70/min |
Machine weight | 18T | 25T | 12T | 12T | 10T |
Machine length | 5500mm | 6000mm | 3600mm | 3600mm | 3500mm |
Machine width | 3300mm | 2400mm | 3100mm | 2500mm | 2400mm |
Machine height | 1750mm | 1750mm | 2280mm | 3000mm | 2300mm |
Middle-sized Expanded Metal Mesh Machine
Technical Parameters of Middle-Sized Expanded Metal Machine
Item | ME-4-1300 | ME-2.5-1500 | ME-3-2500 |
Applicable material | HRC, CRC, stainless steel, copper, aluminum, lead, titanium | ||
Suitable mesh width | 2500mm | 1500mm | 2500 |
Max. metal thickness (carbon steel) | 4mm | 2.5mm | 3mm |
Punching force | 125T | 140T | 120T |
Feeding stroke | 0-5 | 0-2.5mm | 0-7mm |
Driving motor power | 15kW | 11kW | 17kW |
Punching times | 85/min | 100/min | 45/min |
Machine weight | 5T | 6T | 18T |
Machine length | 2500mm | 2870mm | 4000mm |
Machine width | 1800mm | 1990mm | 3500mm |
Machine height | 2400mm | 2140mm | 2400mm |

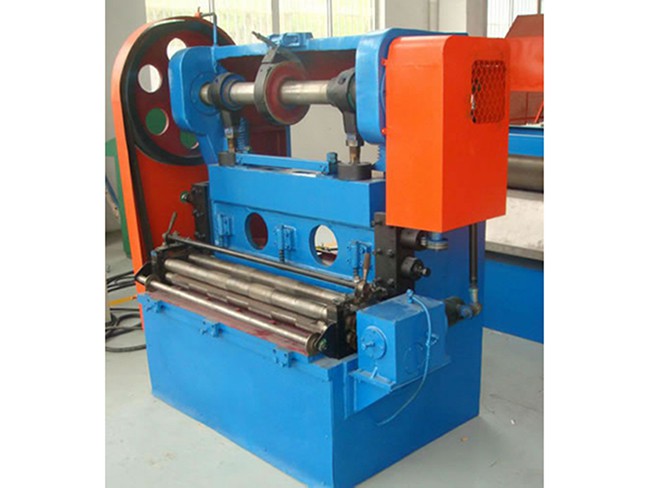

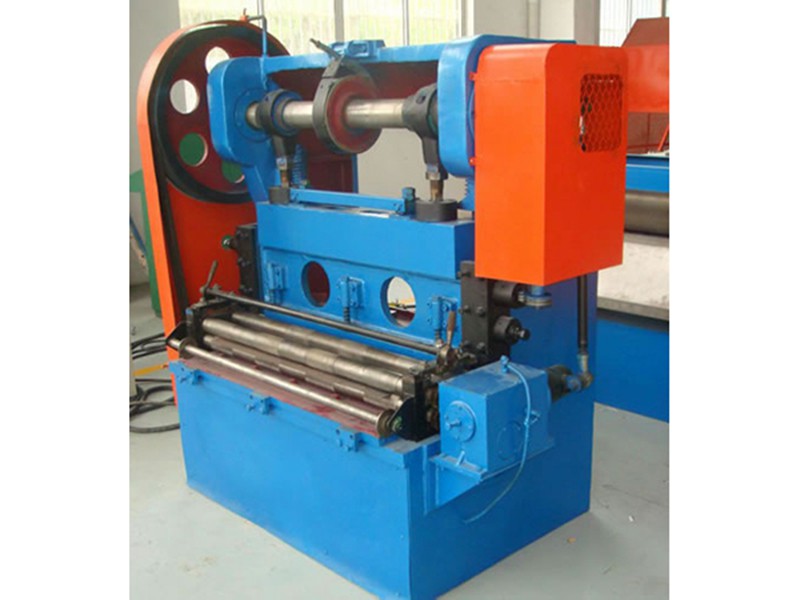

Small-sized Expanded Metal Mesh Machine
Technical Parameters of Small-Sized Expanded Metal Machine
Item | SE-1.5-1250 | SE-1.0-1000 | SE-1.5-1000 | SE-4.0-1000 |
Applicable material | HRC, CRC, stainless steel, copper, aluminum, lead, titanium | |||
Suitable mesh width | 1250mm | 1000mm | 1000 | 1000 |
Max. metal thickness (carbon steel) | 1.5mm | 1.0mm | 1.5mm | 4mm |
Punching force | 50T | 40T | 50T | 100T |
Feeding stroke | 0.3-3 | 0.3-2mm | 0.3-3mm | 0.3-5mm |
Driving motor power | 7.5kW | 5.5kW | 7.5kW | 11kW |
Punching times | 200/min | 300/min | 200/min | 120/min |
Machine weight | 2.5T | 2T | 2T | 3.5T |
Machine length | 2200mm | 1800mm | 1800mm | 1800 |
Machine width | 1100mm | 900mm | 900mm | 1100 |
Machine height | 1600mm | 1500mm | 1500mm | 1500 |
