Cotton Swab Making Machine

  • cotton swab
  • medical cotton swab
Inquiry Form

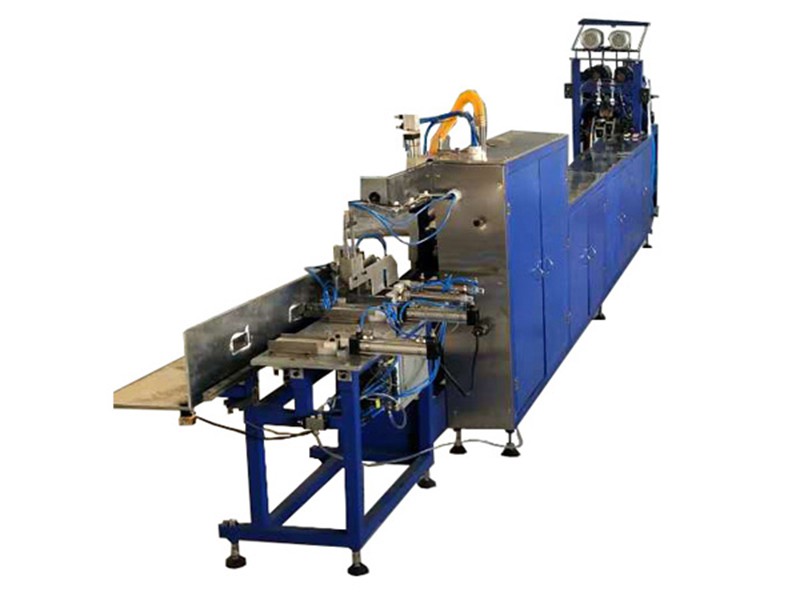

Featuring PLC control system and HMI operation, this cotton swab making machine supports automatic material feeding and rolling. It can be used for automatically making and packing cotton swabs. With proven quality and performance, the machine is equipped with superior quality servo motor, PLC control system and touch screen from XINJIE.

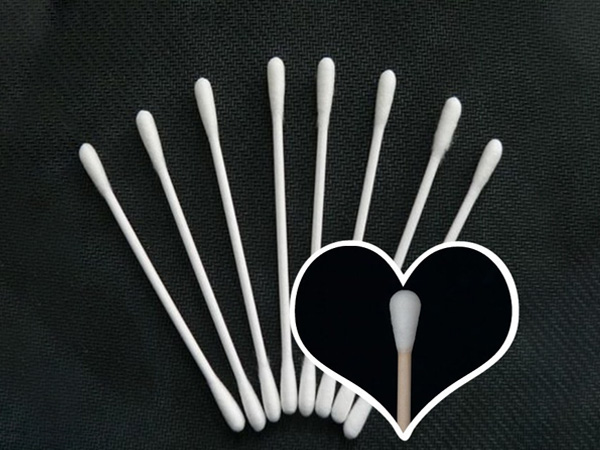

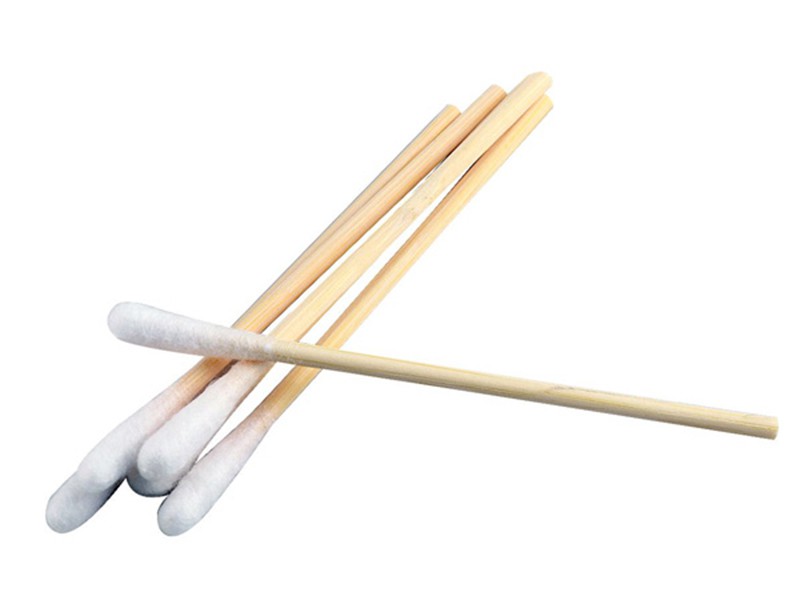

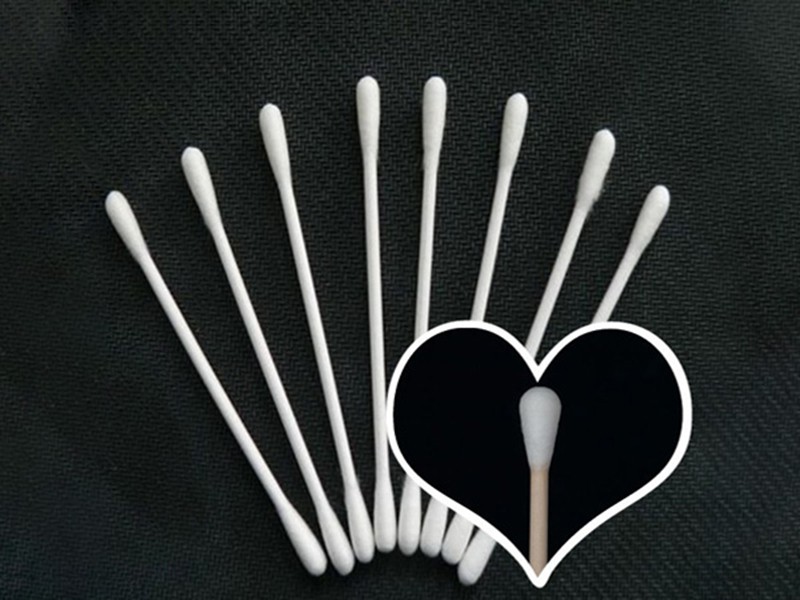

The finished cotton swabs can be packed with different methods, such as square box, plastic bag, blister, round box, etc. The cotton swab making and packaging machine is suitable for producing various cotton swabs with compact and uniform swab head, such as single-head medical swabs, double-head make-up swabs, baby-care swabs, etc.

Technical Parameters of Cotton Swab Making Machine

Item Specifications
Applicable stick Plastic, wood, paper and bamboo stick
Stick length Customized
Stick diameter 2.0-2.5mm
Production speed Plastic and paper stick: 600-900pcs/min
Bamboo stick: 700pcs/min
Wooden stick: 700pcs/min
Rate of spoiled For plastic & paper sticks: less than 0.3%
For bamboo & wood sticks: less than 1%
Machine dimension 7200 x 750 x 1300mm
Machine weight Around 1500kg
Drying power 7kW
Total power 8kW
Power supply 380V, 3Phase, 50Hz

Related Names
Cotton Bud Making Machine︱Medical Cotton Swab Machinery︱Cotton Swab Making Equipment
