H-beam Production Line
Components of H-beam Production Line
This line consists of CNC controlled straight/profile flame cutting machine, H-beam auto assembling machine, gantry type H-beam welding machine, H-beam steel rectifying machine and shot-blasting machine.

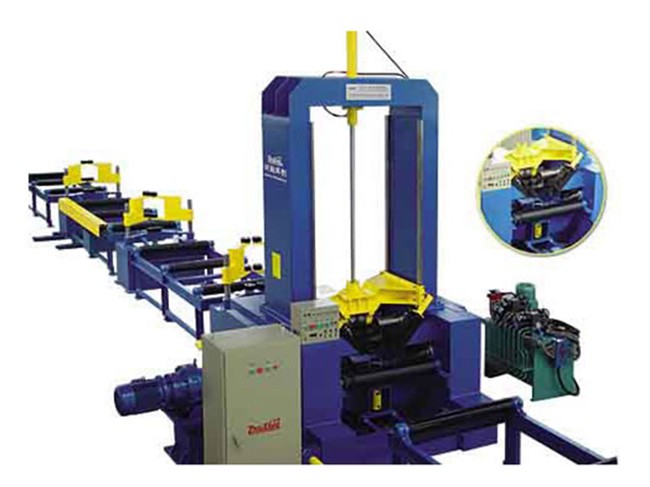

1. GS-4000 CNC Controlled Straight/Profile Flame Cutting Machine
Main Technical Data of GS-4000 CNC Controlled Straight/Profile Flame Cutting Machine:
Item | Specifications |
Space between rails | 4000mm (or as required) |
Length of rails | 15000mm (or as required) |
Cutting width | 80-3200mm (straight strips) |
≤2800 (CNC cutting) | |
Effective cutting length (whole sheet length) | 12000mm |
Cutting speed | 50-1000mm/min, adjustable |
Max. returning speed | 3000mm/min |
Flame cutting thickness | 6-100mm |
Plasma cutting thickness | Based on requirement |
Straight cutting torch | 9pcs (or as required) |
CNC cutting torch | 2pcs (electric raising/dropping, auto igniting) |
Applicable gas | Oxygen, ethyne or propane |
Total motor power | 2kW |

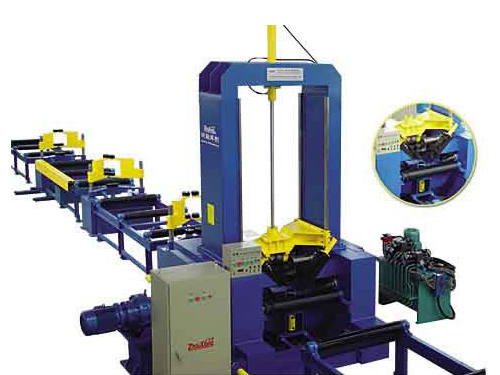

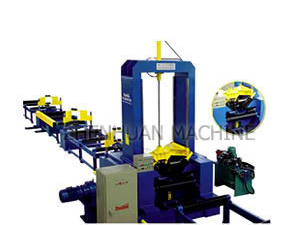

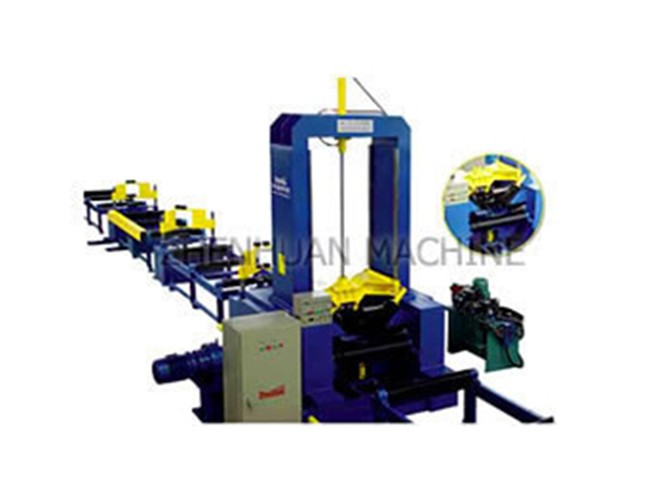

2. HG-1500ⅠH-beam Auto-assembling Machine
Main Technical Data of HG-1500ⅠH-beam Auto-assembling Machine:
Item | Specifications |
Machine function | Auto clamping & spot welding, manual overturning |
Applicable H-beam web plate width | 200-1500mm |
Applicable H-beam web plate thickness | 6-32mm |
Applicable H-beam flange plate width | 150-600mm |
Applicable H-beam flange plate thickness | 6-40mm |
Applicable H-beam length | 2000-15000mm |
Production speed | 500-1200mm/min |
Length of supporting roller rack | Total 28000mm |
Driving motor | 7kW, inverter control (excluding two welders) |

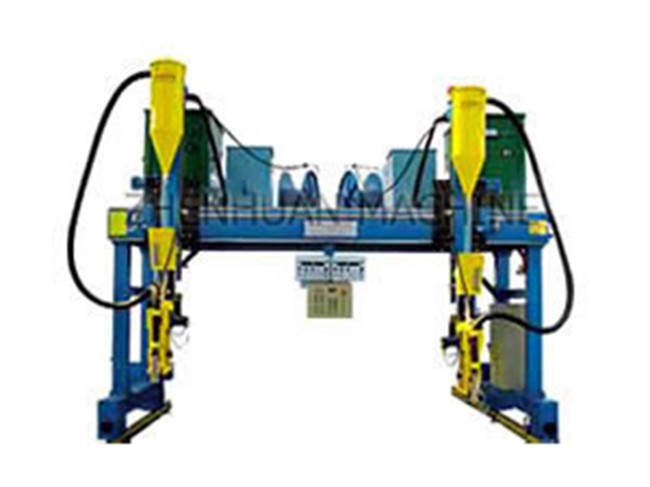

3. MZG1000×2 Gantry Auto-welding Machine
Main Technical Data of MZG1000×2 Gantry Auto-welding Machine:
Item | Description |
Welding method | Submerged arc welding |
Welding power | 63kVA×2 |
Suitable H-beam width | 200-800mm |
Suitable H-beam height | 200-1500mm |
Suitable H-beam length | Max. 15000mm |
Space between two rails | 4000mm |
Suitable diameter of welding wire | 3.2-5mm |
Welding agent recycling machine | 50kg×2 |
Driving method | Double side driving |
Total power | 8.2kW |

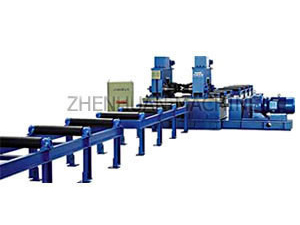

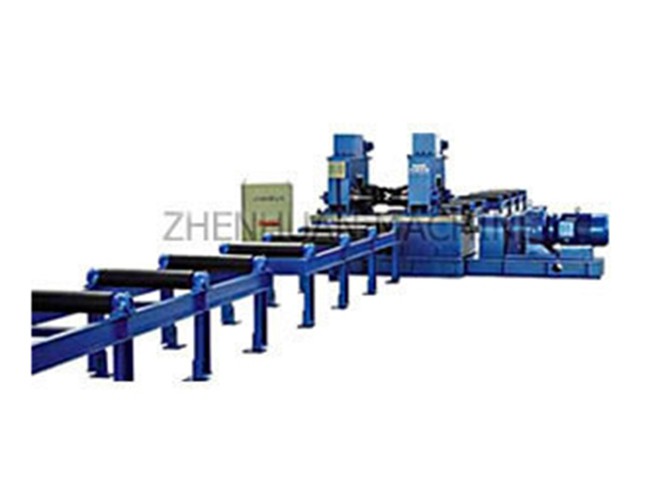

4. HYJ-40H Flange Rectifying Machine
Main Technical Data of HYJ-40H Flange Rectifying Machine:Item | Specifications |
Suitable H-beam flange plate width | 200-800mm |
Suitable H-beam flange plate thickness | 6-40mm |
Min. height of web plate | 200mm** |
Rectifying speed | About 16000mm/min |
Total motor power | 24.2kW |
Note: For the web plate with the height of 200-350mm and flange plate with thickness less than 16mm, subsidiary rectifying rollers should be used.

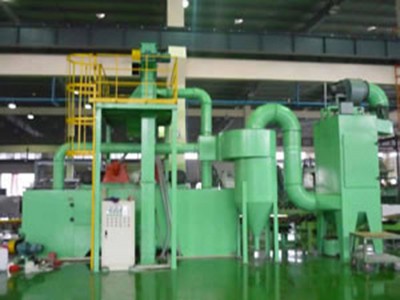

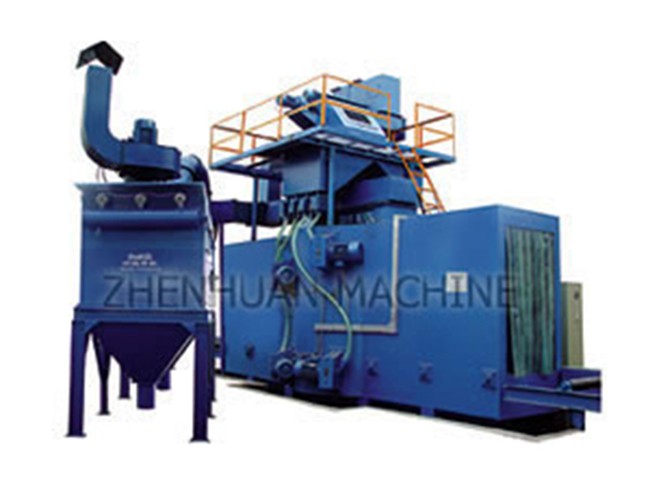

5. HP 8016-8 H-beam Auto Shot-blasting and Cleaning Machine
Main Technical Data of HP 8016-8 H-beam Auto Shot-blasting and Cleaning Machine:
Item | Specifications | |
Size of working piece | Section size (width x height) | 800×1600mm |
Length | 16000mm | |
Passing speed | 0.4~2.5m/min | |
Shot blaster | Type | Q034 |
Quantity | 8 | |
Blasting quantity | 8×230kg/min | |
Power | 8×11kw | |
Raising machine | Capacity | 120t/h |
Power | 7.5kw | |
Longitudinal spiral conveyor | Capacity | 120t/h |
Power | 5kw | |
Transverse spiral conveyor | Capacity | 120t/h |
Power | 4kw | |
Separator | Capacity | 120t/h |
Pill clean-away system | Power | 11kw |
Wind blow | 4237M3/h | |
In-out roller table | Loading capacity | 1000kg/m |
Motor power | 2×2.2kw | |
Conveying speed | 0.4~4m/min | |
Length | 13000mm | |
First loading quantity of pills | 5000kg | |
Dust-cleaning system | Wind blow | 16000m3/h |
Power | 15kw | |
Total power | About 140kw |
