Shot Blasting Machine
Cylinder Inner Wall Shot Blasting Machine

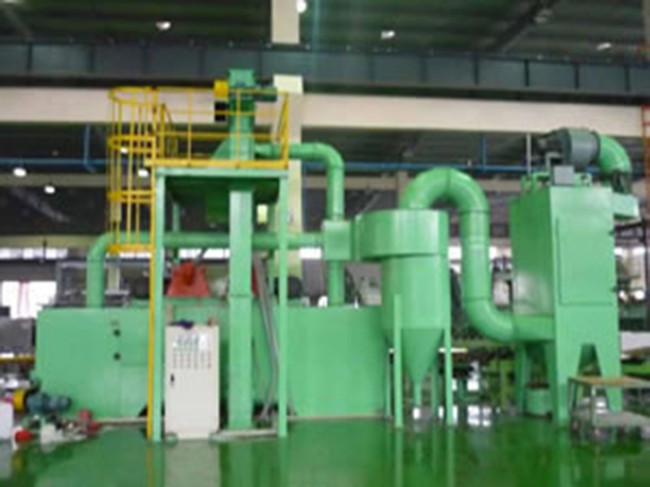

This slot blasting machine is applied with dedusting system with the view to clean the steel cylinder inner wall.
Cylinder Inner Wall Shot Blasting Machine Configuration
1. Shot blasting room
2. Cylinder inverting device
3. Blast gun moving system
4. Cylinder rotating device
5. Automatic loading and unloading device
6. Impeller head
7. Dedusting system
8. PLC control system
Technical Parameters of Cylinder Inner Wall Shot Blasting Machine
Item | Data | |
Cylinder diameter range | 219-406mm | |
Maximum cylinder height | 2000mm | |
Maximum cylinder weight | 220kg | |
Working speed | 20~24 pieces per hour | |
Sand diameter | Φ0.8mm | |
Impeller | Quantity of nozzle | 2 |
Sand storage | 0.26m3/0.5t | |
Blasting flow | 800-1200kg/h | |
Air pressure consumption | 0.5-0.7MPa |
Hook-type Shot Blasting Machine

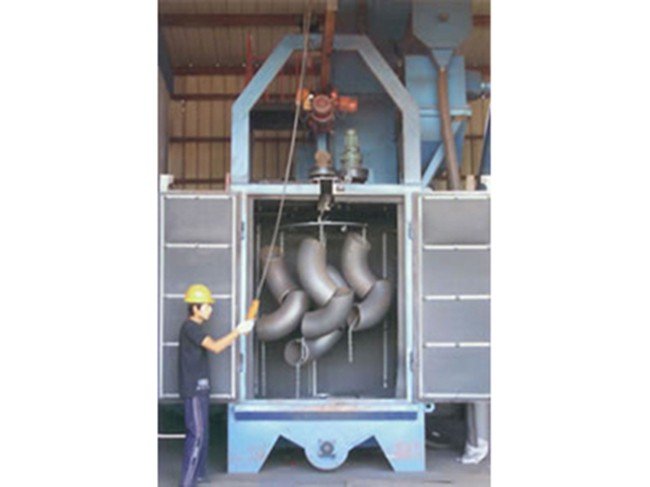

The hook-type shot blasting machine is especially designed for cleaning or strengthening those workpieces featuring long, thin-wall, and complex structure. This device takes advantage of hooks for feeding workpiece into cleaning chamber. These hooks will rotate during the process of blast cleaning.
Hook-type Shot Blasting Machine Configuration
1. Electrical hoist conveying system
2. Steel grit cleaning system
3. Dedusting system
4. Steel grit recycling system
5. Impeller head
6. Electric control system
Technical Parameters of Hook-type Shot Blasting Machine
Item | Data | |
Maximum workpiece size | Φ1000×2000 mm | |
Maximum workpiece weight | 4000kg | |
Steel grit size | Φ0.8-1.5mm | |
Initial steel grit loading quantity | 1000kg | |
Cleaning efficiency | 7-8 minutes per hook | |
Rust-removing quality grade | Sa2.5 | |
Impeller | Quty of antinozzle | 3 |
Vane diameter | Φ250mm | |
Blasting flow | 150kg/min | |
Material of vane | high chrome cast iron | |
Dedusting system | Total air quantity | 15000m3/h |
Filtering air speed | 0.8~1.2m/min | |
Quantity of filters | 24pcs | |
Compressed air consumption | 1m3/min |
