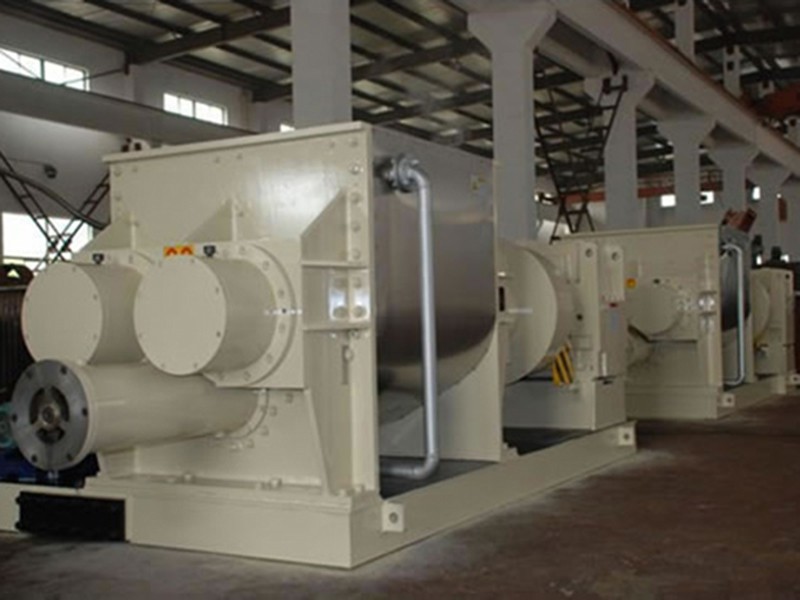

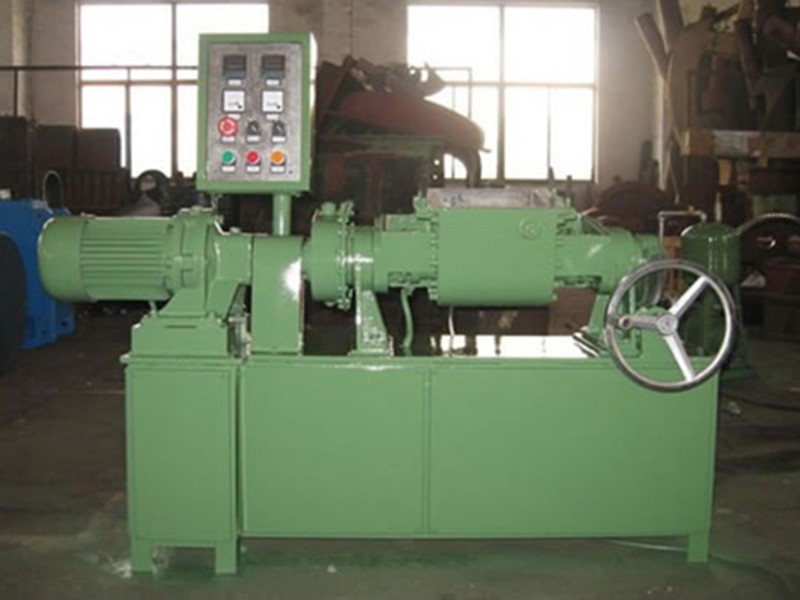

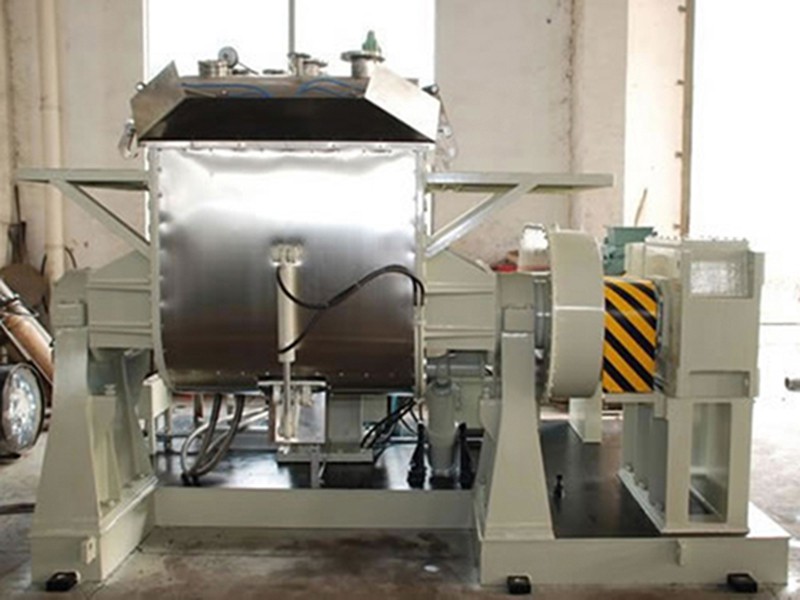

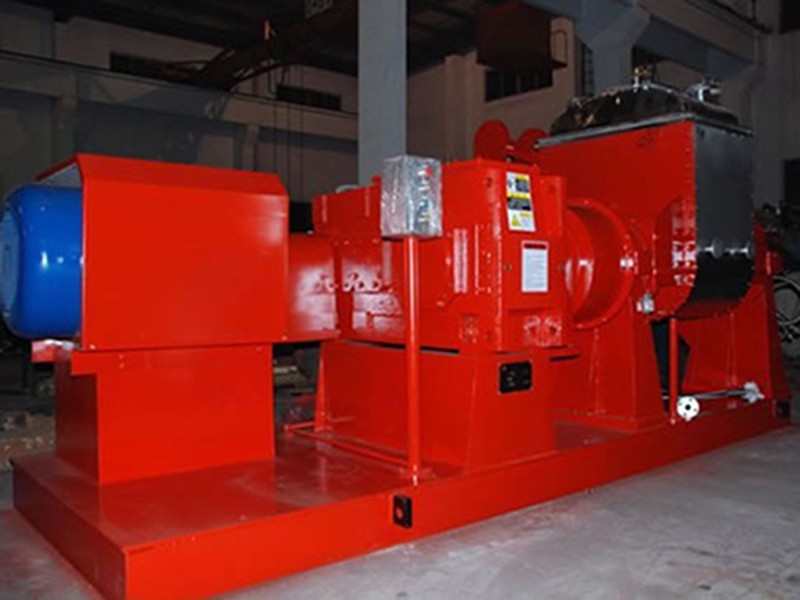

Vacuum Kneader
Applications
Our vacuum kneader has widely application. It is extensively seen in the industry such as silicone rubber, moulding rubber, hot melt adhesive, printing ink, painting, pigment, dyestuff, oil paint, and carbon material. In addition, the vacuum kneading device is an ideal tool for the other industries, including chemical industry, plastic, medicine, cosmetic, foodstuff, tape, urea-formaldehyde molding powder, starch, gum base, welding electrode, etc.
Working Principle
The vacuum kneader is a kind of high performance device for mixing material with ultrahigh viscosity. It utilizes the shearing force generated between two stirring paddles, as well as the shearing force between the stirring paddles and the kneading tank, during the rotation of the paddles. The material can be completely mixed, kneaded, smashed, and dispersed with our vacuum kneader.
A temperature adjustment device can be connected with our vacuum rubber kneader, such as oil circulation heating device, electrical heating unit, steam heating apparatus, or cooling water system.
Technical Parameters of Vacuum Kneader
Item | NHZ-500 | NHZ-1000 | NHZ-1500 | NHZ-3000 | |||||
Total volume (L) | 600 | 1200 | 1500 | 3300 | |||||
Working volume (L) | 400 | 800 | 1000 | 2200 | |||||
Main motor power (kW) | 37 | 90 | 132 | 315 | |||||
Paddle | Sigma paddle | ||||||||
Stirring blade material | ZG270-500, surface treated with SUS304 | ||||||||
Stirring shaft material | 45# steel, heat treatment for high strength | ||||||||
Main shaft speed (rpm) | Front | 0-38 | 0-35 | 0-35 | 0-32 | ||||
Rear | 0-26 | 0-24 | 0-24 | 0-22 | |||||
Distance between paddle and cylinder (mm) | ≤3 | ≤3 | ≤4 | ≤5 | |||||
Distance between paddle and side panel (mm) | ≤3 | ≤3 | ≤4 | ≤5 | |||||
Main shaft seal | Teflonplus T-shape combined sealing | ||||||||
Heating mode | Steam heating≤0.8MP, or electrical heating | ||||||||
Material unloading mode | Hydraulic controlled cylinder turnover for material unloading | ||||||||
Cylinder turning angle | About 95° | ||||||||
Explosion-proof device | DN100 | DN150 | DN150 | DN200 | |||||
Cap opening mode | Hydraulic controlled | ||||||||
Cap pressing mode | Manual or pneumatic controlled viton viton viton | ||||||||
Hydraulic station motor power (kW) | 2.2 | 4 | 4 | 5.5 | |||||
Final vacuum (MPa) | -0.095 | ||||||||
Air extraction speed of vacuum pump (m3/min) | 2 | 3 | 4.5 | 6 | |||||
Overall dimension (mm) | L | 2800 | 3650 | 4000 | 5000 | ||||
W | 1800 | 2150 | 2300 | 2750 | |||||
H | 1800 | 2275 | 2400 | 2900 |
Customized vacuum kneader is also welcomed.
